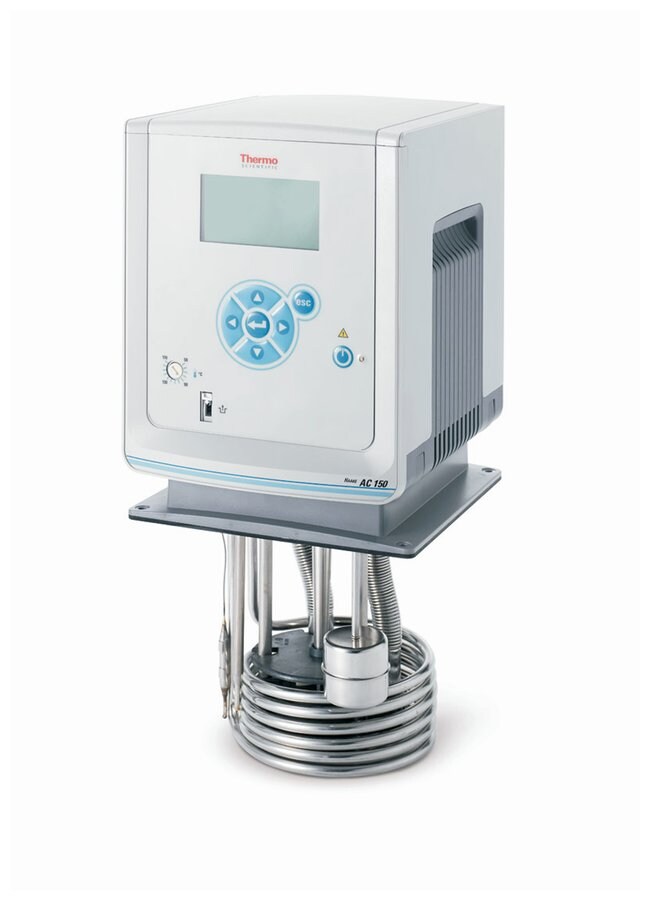

AC150 Immersion Circulators (Thermo Scientific™)

Thermo Scientific™ AC150 is ideal when applications require greater pumping performance, ramp programming, application alarms and temperature ranges from 13° to 200°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.

Key Features

Max. temperature: 200°C
Low-liquid level alarm for Safety Class III
Automatic controller shutdown at detection of excessive high temperature, low liquid level or motor overload
USB communication port and options for RS-232, RS-485, Ethernet/LAN, Analog I/O
Programmable application temperature alarm with user selected alarm, go-safe-state or shut off option
Self-Tuning PID controller for optimized temperature control
Five programmable set point temperatures
RTA (Real Temperature Adjustment) for calibration
Internal or external temperature control mode (Remote Sensor, NAMUR type)
Pump speed adjustment to three levels for turbulance control
Powerful force and suction pump for external open and closed applications
Three languages (English, German, French)
Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
Acoustic and optical alarm
Auto-Restart feature after power failure

Includes:8mm and 12mm hose barbs with bridge (–0026, –0029, –0021 only), pump plug for external circulation, 6ft. power cord.

Warranty varies by country, please contact us for details

Order Codes

Code	Description
1550028	Catalog Number: 1550028 Unit Size: Each Model: AC150 with bridge Voltage: 115 V Frequency: 60 Hz
155-0001	Catalog Number: 155-0001 Unit Size: Each Model: AC150 Voltage: 230 V Frequency: 50 Hz
1550006	Catalog Number: 1550006 Unit Size: Each Model: AC150 Voltage: 100 V Frequency: 50/60 Hz
1550008	Catalog Number: 1550008 Unit Size: Each Model: AC150 Voltage: 115 V Frequency: 60 Hz
155-0021	Catalog Number: 155-0021 Unit Size: Each Model: AC150 with bridge Voltage: 230 V Frequency: 50 Hz
1550026	Catalog Number: 1550026 Unit Size: Each Model: AC150 with bridge Voltage: 100 V Frequency: 50/60 Hz
