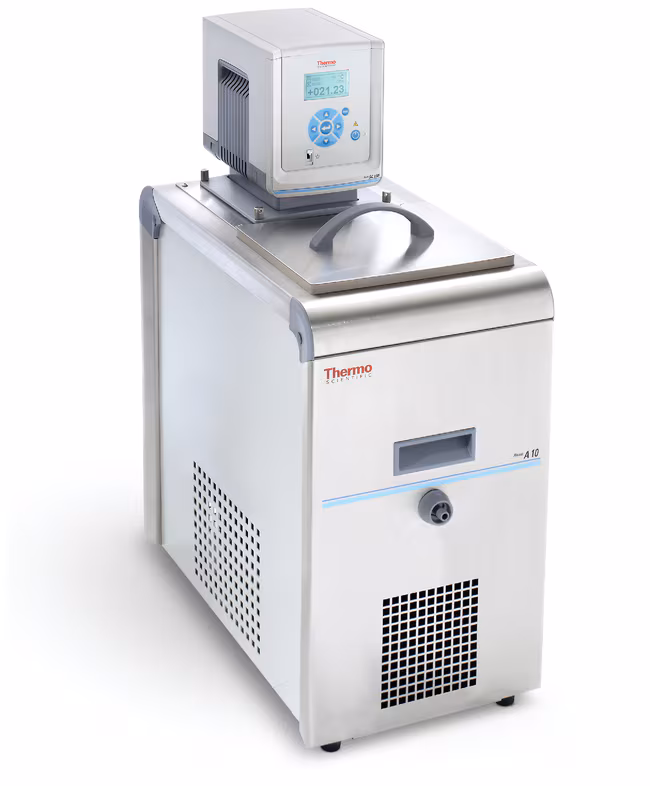

ARCTIC A10 Refrigerated Circulators (Thermo Scientific™)

Thermo Scientific™ A10 refrigerated bath circulators provide efficient cooling for open and closed applications, with temperatures ranging from -10° to +100°C and maximum bath volume of 6 liters. Powerful bath circulators with a stainless-steel reservoir can be configured with the controller that best meets circulation and temperature ranges for your application.

Key Features

Optional force/suction pumps and sophisticated digital control allow you to ensure accuracy and reproducibility. Choose from the STANDARD, ADVANCED or PREMIUM controllers to create the perfect fit for your application.
  • Energy-saving feature limits power consumption: tight control of cooling capacity dependent on application needs
  • Small refrigeration circulators are optimized for small footprint and low noise
  • Robust stainless-steel baths
  • The controller can be turned to 90° on all sides of the bath for optimal viewing
  • External circulation set included for plumbing connection M16×1, 0.25 NPT male, 0.375in. O.D.
  • Three-side ventilation concept: up to two sides can be blocked with full refrigeration performance and no degradation of equipment
  • Draining port at the front
  • Integrated handles
  • CFC-free refrigerant

Includes:

Communication cables, bridge with gasket and thumbscrews, fittings, clamps, pump plug for external circulation, 6ft. power cord, bath cover

Recommended for:

  • Calibration
  • Bioreactors
  • Rotary Evaporators
  • Condensers
  • Sample/Material Testing
  • Sample/Material Preparation
  • Warranty varies by country, please contact us for details

Order Codes

Code Description
155-5108 Catalog Number: 155-5108
Unit Size: Each
Flow Rate: 20 L/min.
Controller Type: AC150
Voltage: 115 V
Frequency: 60 Hz
152-5106 Catalog Number: 152-5106
Unit Size: Each
Flow Rate: 17 L/min.
Controller Type: SC100
Voltage: 100 V
Frequency: 50/60 Hz
1525108 Catalog Number: 1525108
Unit Size: Each
Flow Rate: 17 L/min.
Controller Type: SC100
Voltage: 115 V
Frequency: 60 Hz
153-5101 Catalog Number: 153-5101
Unit Size: Each
Flow Rate: 17 L/min.
Controller Type: SC150
Voltage: 230 V
Frequency: 50 Hz
153-5106 Catalog Number: 153-5106
Unit Size: Each
Flow Rate: 17 L/min.
Controller Type: SC150
Voltage: 100 V
Frequency: 50/60 Hz
153-5108 Catalog Number: 153-5108
Unit Size: Each
Flow Rate: 17 L/min.
Controller Type: SC150
Voltage: 115 V
Frequency: 60 Hz
155-5101 Catalog Number: 155-5101
Unit Size: Each
Flow Rate: 20 L/min.
Controller Type: AC150
Voltage: 230 V
Frequency: 50 Hz
155-5106 Catalog Number: 155-5106
Unit Size: Each
Flow Rate: 20 L/min.
Controller Type: AC150
Voltage: 100 V
Frequency: 50/60 Hz
156-5101 Catalog Number: 156-5101
Unit Size: Each
Flow Rate: 20 L/min.
Controller Type: AC200
Voltage: 230 V
Frequency: 50 Hz
156-5106 Catalog Number: 156-5106
Unit Size: Each
Flow Rate: 20 L/min.
Controller Type: AC200
Voltage: 100 V
Frequency: 50/60 Hz
156-5108 Catalog Number: 156-5108
Unit Size: Each
Flow Rate: 20 L/min.
Controller Type: AC200
Voltage: 115 V
Frequency: 60 Hz
152-5101 Catalog Number: 152-5101
Unit Size: Each
Flow Rate: 17 L/min.
Controller Type: SC100
Voltage: 230V
Frequency: 50 Hz
