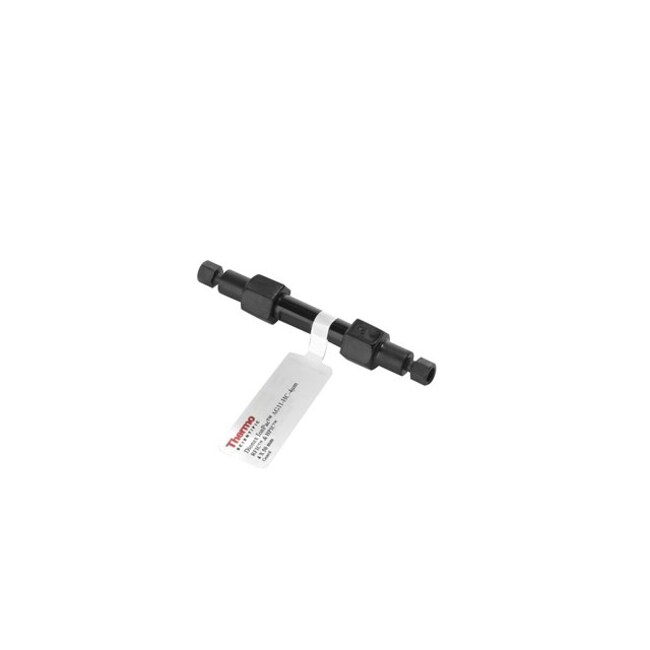

Dionex™ IonPac™ AS11-HC-4µm IC Columns (Thermo Scientific™)

Key Features

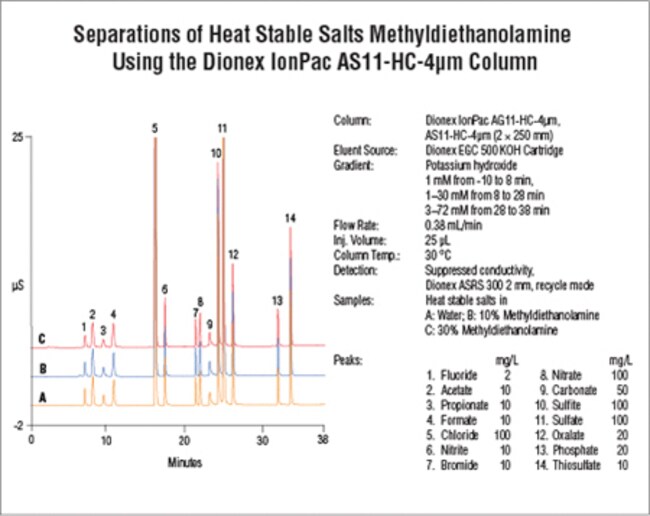

Complex sample matrices such as chemical wastewater effluents and fermentation broth solutions containing a variety of inorganic anions and organic acids can be analyzed using the high resolution Dionex IonPac AS11-HC-4μm column. Appropriate analytes include:

• Monovalent and divalent organic acids
• Organic acids and inorganic anions in complex sample matrices or uncharacterized samples

Achieve Higher Resolution With High Capacity Columns

• Facilitates injection of more concentrated samples without column overloading or peak broadening

Enjoy Higher Performance With the Smaller 4μm Resin Particle Size

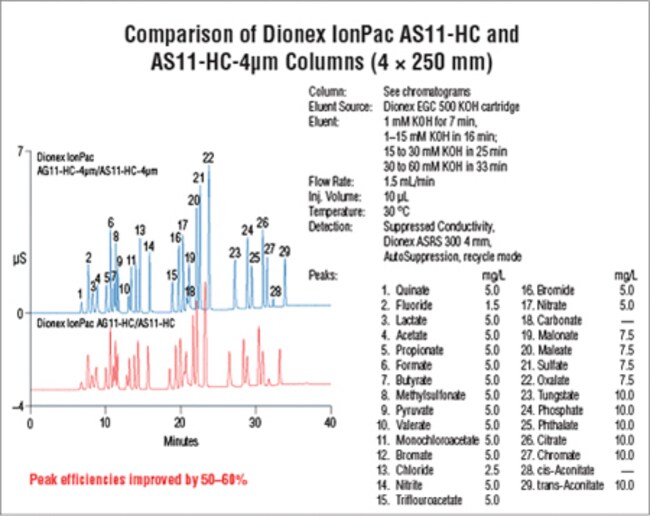

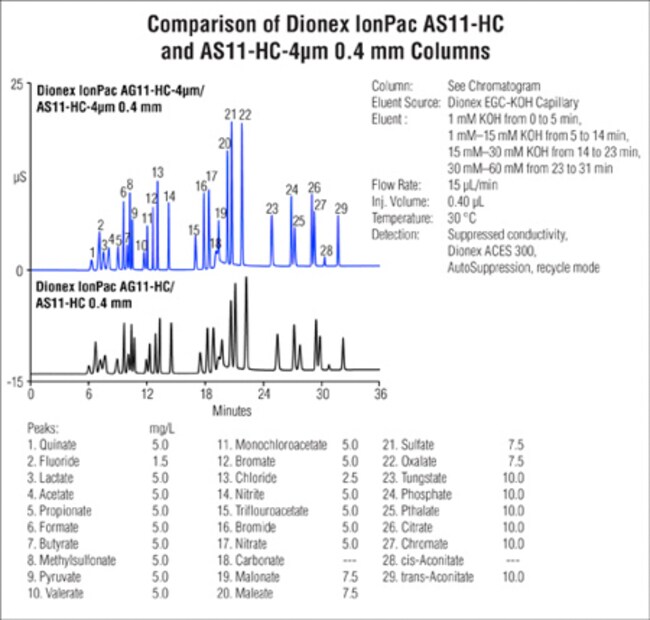

• Easily transfer applications from the Dionex IonPac AS11-HC column to the 4μm column
• Get similar selectivity as the Dionex IonPac AS11-HC column
• Increased peak resolution for more consistent results
• Obtain improved separation for monovalent carboxylic acids, including quinate, lactate, acetate, propionate, formate, and butyrate

Use the Format That Fits Your Lab

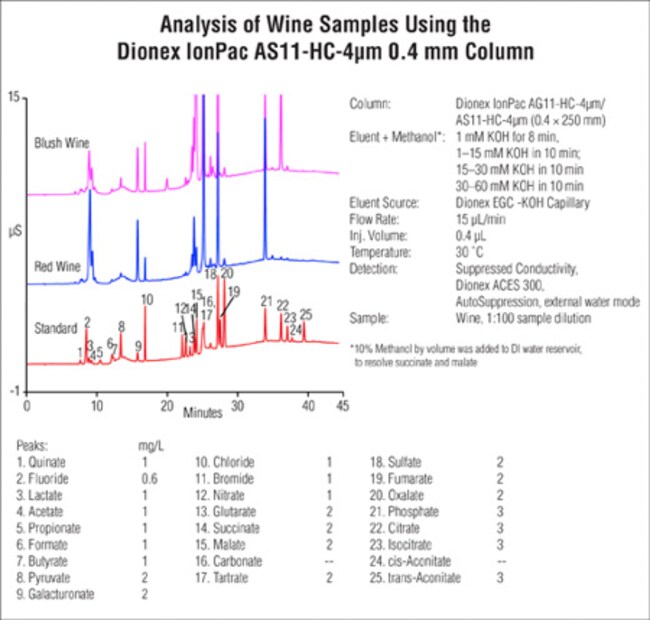

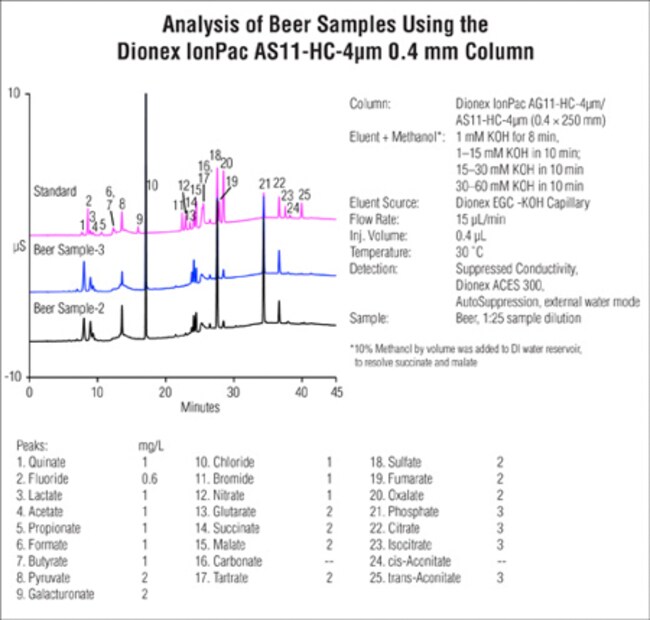

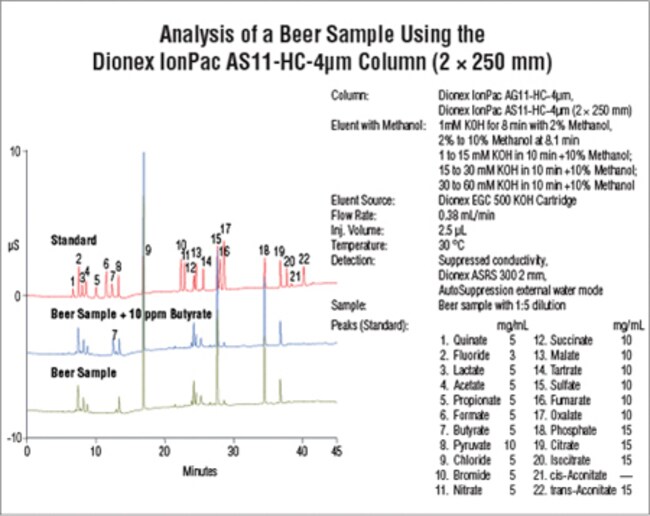

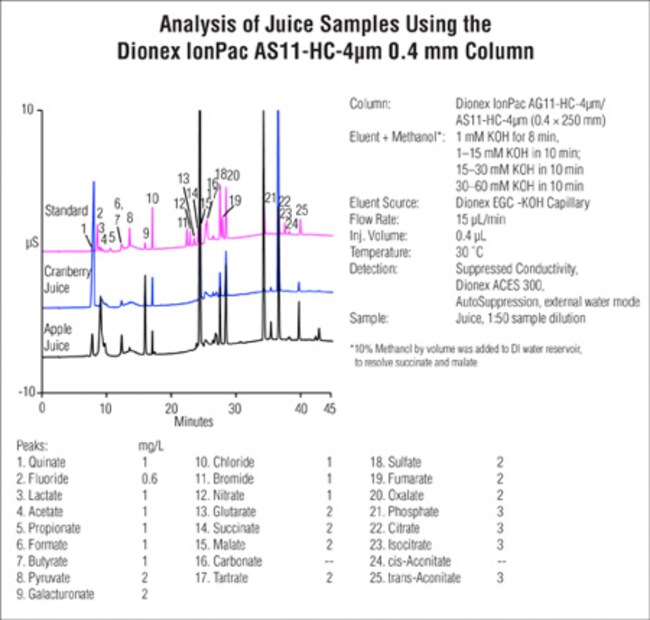

The Dionex IonPac AS11-HC-4μm column is available in three formats: 4x250 mm, 2x250 mm, and 0.4x250mm. The capillary format provides reduced eluent consumption, which helps reduce operating costs.

Use With a High-Pressure Capillary IC System

The smaller resin particles used in the Dionex IonPac AS11-HC-4μm column produces a backpressure over 3000 psi at the standard flow rates. A high-pressure capillary IC system, such as the Thermo Scientific™ Dionex™ ICS-5000+ HPIC™ or the Dionex ICS-4000 Capillary HPIC system is required to operate this column under standard conditions.

For Best Performance

• Use the Thermo Scientific™ Dionex™ IonPac™ AS11 column for fast analysis of organic acids and anions in well-characterized samples
• Use the Thermo Scientific™ Dionex™ IonPac™ ICE-AS1 or ICE-AS6 columns for organic acids in high-ionic-strength samples

Order Codes

Code	Description
082313	Catalog Number: 082313 Unit Size: Each 1 Column Type: Analytical Column Diameter (Metric): 4 mm Length (Metric): 250 mm
078035	Catalog Number: 078035 Unit Size: Each 1 Column Type: Separator Column Diameter (Metric): 2 mm Length (Metric): 250 mm
078036	Catalog Number: 078036 Unit Size: Each 1 Column Type: Guard Column Diameter (Metric): 2 mm Length (Metric): 50 mm
078034	Catalog Number: 078034 Unit Size: Each 1 Column Type: Guard Column Diameter (Metric): 4 mm Length (Metric): 50 mm
078031	Catalog Number: 078031 Unit Size: Each 1 Column Type: Capillary Separator Diameter (Metric): 0.4 mm Length (Metric): 250 mm
078032	Catalog Number: 078032 Unit Size: Each 1 Column Type: Guard Column Diameter (Metric): 0.4 mm Length (Metric): 50 mm
