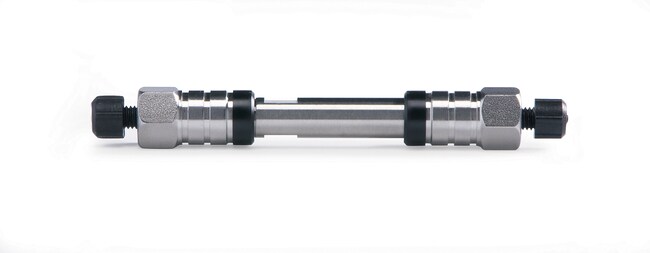

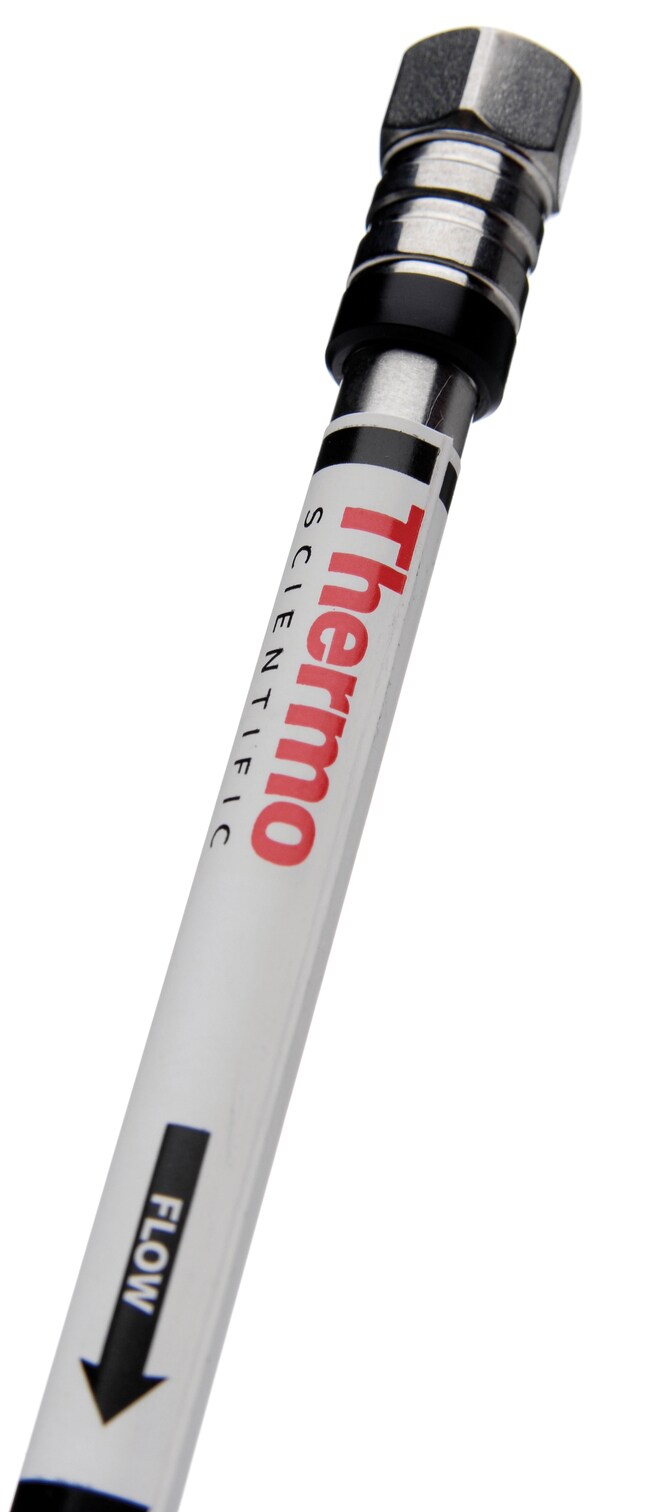

Hypercarb™ Porous Graphitic Carbon HPLC Columns (Thermo Scientific™)

Offer 100% porous graphitic carbon for extended separation capabilities with Thermo Scientific™ Hypercarb™ Porous Graphitic Carbon LC Columns. Enhanced retention of polar compounds and separation of structurally related analytes with stability at pH extremes and high temperature.

Key Features

Suited to solve problem separations.

Exceptional retention of very polar analytes
True orthoganality to C18
Separated structurally related substances
pH stable from 0 to 14
Excellent for high temperature applications
100% stainless-steel column hardware
PEEK-free column hardware for use at temperatures above 120°C

Ordering Information:

Other column dimensions are also available. Please note that some columns are for use with elevated temperatures. Please call your Customer Service Representative for more information.

Order Codes

Code	Description
35005-014001	Catalog Number: 35005-014001 Unit Size: Pack of 2 Particle Size: 5 μm Length (Metric): 10 mm
35003-031030	Catalog Number: 35003-031030 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 1 mm Length (Metric): 30 mm Column Format: Analytical Column
35003-032130	Catalog Number: 35003-032130 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 30 mm Column Format: Analytical Column
35003-052130	Catalog Number: 35003-052130 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 50 mm Column Format: Analytical Column
35003-053030	Catalog Number: 35003-053030 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 3 mm Length (Metric): 50 mm Column Format: Analytical Column
35003-054630	Catalog Number: 35003-054630 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 4.6 mm Length (Metric): 50 mm Column Format: Analytical Column
35003-101030	Catalog Number: 35003-101030 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 1 mm Length (Metric): 100 mm Column Format: Analytical Column
35003-102130	Catalog Number: 35003-102130 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 100 mm Column Format: Analytical Column
35003-103030	Catalog Number: 35003-103030 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 3 mm Length (Metric): 100 mm Column Format: Analytical Column
35003-104630	Catalog Number: 35003-104630 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 4.6 mm Length (Metric): 100 mm Column Format: Analytical Column
35003-152130	Catalog Number: 35003-152130 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 150 mm Column Format: Analytical Column
35003-153030	Catalog Number: 35003-153030 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 3 mm Length (Metric): 150 mm Column Format: Analytical Column
35003-154630	Catalog Number: 35003-154630 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 4.6 mm Length (Metric): 150 mm Column Format: Analytical Column
35003-104646	Catalog Number: 35003-104646 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 4.6 mm Length (Metric): 100 mm Column Format: High Temperature Column
35003-103046	Catalog Number: 35003-103046 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 3 mm Length (Metric): 100 mm Column Format: High Temperature Column
35003-102146	Catalog Number: 35003-102146 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 100 mm Column Format: High Temperature Column
35003-101046	Catalog Number: 35003-101046 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 1 mm Length (Metric): 100 mm Column Format: High Temperature Column
35003-052146	Catalog Number: 35003-052146 Unit Size: Each Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 50 mm Column Format: High Temperature Column
35003-012101	Catalog Number: 35003-012101 Unit Size: Pack of 2 Particle Size: 3 μm Diameter (Metric): 2.1 mm Length (Metric): 10 mm Column Format: Guard Cartridge, 2 Pk.
35003-013001	Catalog Number: 35003-013001 Unit Size: Pack of 2 Particle Size: 3 μm Length (Metric): 10 mm
35003-014001	Catalog Number: 35003-014001 Unit Size: Pack of 2 Particle Size: 3 μm Diameter (Metric): 4 mm Length (Metric): 10 mm Column Format: Guard Cartridge, 2 Pk.
35003-011001	Catalog Number: 35003-011001 Unit Size: Pack of 2 Particle Size: 3 μm Length (Metric): 10 mm
35005-011001	Catalog Number: 35005-011001 Unit Size: Pack of 2 Particle Size: 5 μm Length (Metric): 10 mm
35005-012101	Catalog Number: 35005-012101 Unit Size: Pack of 2 Particle Size: 5 μm Length (Metric): 10 mm
35005-013001	Catalog Number: 35005-013001 Unit Size: Pack of 2 Particle Size: 5 μm Length (Metric): 10 mm
35005-054630	Catalog Number: 35005-054630 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 4.6 mm Length (Metric): 50 mm Column Format: Analytical Column
35005-104630	Catalog Number: 35005-104630 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 4.6 mm Length (Metric): 100 mm Column Format: Analytical Column
35005-151030	Catalog Number: 35005-151030 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 1 mm Length (Metric): 150 mm Column Format: Analytical Column
35005-153030	Catalog Number: 35005-153030 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 3 mm Length (Metric): 150 mm Column Format: Analytical Column
35005-154630	Catalog Number: 35005-154630 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 4.6 mm Length (Metric): 150 mm Column Format: Analytical Column
35005-032130	Catalog Number: 35005-032130 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 30 mm Column Format: Analytical Column
35005-101030	Catalog Number: 35005-101030 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 1 mm Length (Metric): 100 mm Column Format: Analytical Column
35005-102130	Catalog Number: 35005-102130 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 100 mm Column Format: Analytical Column
35005-103030	Catalog Number: 35005-103030 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 3 mm Length (Metric): 100 mm Column Format: Analytical Column
35005-052130	Catalog Number: 35005-052130 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 50 mm Column Format: Analytical Column
35005-053030	Catalog Number: 35005-053030 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 3 mm Length (Metric): 50 mm Column Format: Analytical Column
35005-152130	Catalog Number: 35005-152130 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 150 mm Column Format: Analytical Column
35005-104646	Catalog Number: 35005-104646 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 4.6 mm Length (Metric): 100 mm Column Format: High Temperature Column
35005-102146	Catalog Number: 35005-102146 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 100 mm Column Format: High Temperature Column
35005-052146	Catalog Number: 35005-052146 Unit Size: Each Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 50 mm Column Format: High Temperature Column
35005-022135	Catalog Number: 35005-022135 Unit Size: Pack of 3 Particle Size: 5 μm Diameter (Metric): 2.1 mm Length (Metric): 20 mm Column Format: HTS Column, 3 Pk.
