TraceGOLD TG-1701MS GC Columns (Thermo Scientific™)

Thermo Scientific™ TraceGOLD TG-1701MS GC Columns feature a mix of cyano and phenyl groups for increased polarity and a different elution order relative to less polar columns.

Key Features

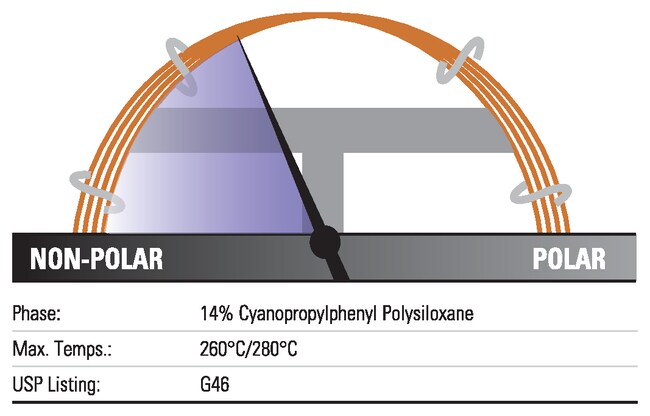

  • Mid-polarity phase (14% cyanopropylphenyl, 86% dimethyl polysiloxane)
  • Fully characterized for long-term reproducibility, column-to-column consistency and low-bleed
  • Optimal for confirmation analysis
  • Equivalent to USP G46 phase
  • Similar to: Rtx-1701, DB-1701, HP-1701, SPB-1701, VF-1701, CP-Sil 19 CB

Recommended for:

Alcohols

Pesticides

Oxygenates

PCB cogeners

Aroclor mixes

Order Codes

Code Description
26090-3960 Catalog Number: 26090-3960
Unit Size: Each
Diameter (Metric): 0.53 mm
Length (Metric): 30 m
Film Thickness: 3 μm
26090-0630 Catalog Number: 26090-0630
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 60 m
Film Thickness: 1.5 μm
26090-1310 Catalog Number: 26090-1310
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 15 m
Film Thickness: 0.25 μm
26090-1420 Catalog Number: 26090-1420
Unit Size: Each
Diameter (Metric): 0.25 mm
Length (Metric): 30 m
Film Thickness: 0.25 μm
26090-1430 Catalog Number: 26090-1430
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 30 m
Film Thickness: 0.25 μm
26090-1440 Catalog Number: 26090-1440
Unit Size: Each
Diameter (Metric): 0.53 mm
Length (Metric): 30 m
Film Thickness: 0.25 μm
26090-1540 Catalog Number: 26090-1540
Unit Size: Each
Diameter (Metric): 0.25 mm
Length (Metric): 60 m
Film Thickness: 0.25 μm
26090-1550 Catalog Number: 26090-1550
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 60 m
Film Thickness: 0.25 μm
26090-2230 Catalog Number: 26090-2230
Unit Size: Each
Diameter (Metric): 0.25 mm
Length (Metric): 30 m
Film Thickness: 0.5 μm
26090-2240 Catalog Number: 26090-2240
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 30 m
Film Thickness: 0.5 μm
26090-2350 Catalog Number: 26090-2350
Unit Size: Each
Diameter (Metric): 0.25 mm
Length (Metric): 60 m
Film Thickness: 0.5 μm
26090-2960 Catalog Number: 26090-2960
Unit Size: Each
Diameter (Metric): 0.25 mm
Length (Metric): 30 m
Film Thickness: 1 μm
26090-2970 Catalog Number: 26090-2970
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 30 m
Film Thickness: 1 μm
26090-2980 Catalog Number: 26090-2980
Unit Size: Each
Diameter (Metric): 0.53 mm
Length (Metric): 30 m
Film Thickness: 1 μm
26090-3080 Catalog Number: 26090-3080
Unit Size: Each
Diameter (Metric): 0.25 mm
Length (Metric): 60 m
Film Thickness: 1 μm
26090-3090 Catalog Number: 26090-3090
Unit Size: Each
Diameter (Metric): 0.32 mm
Length (Metric): 60 m
Film Thickness: 1 μm
