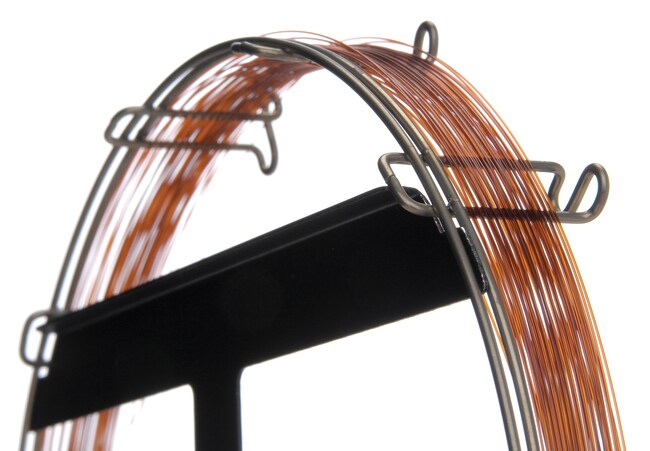

TraceGOLD™ TG-624 and TG-624SilMS GC Columns (Thermo Scientific™)

Analyze residual solvents, volatile organic compounds, alcohols, and oxygenates using Thermo Scientific™ TraceGOLD™ TG-624 and TG-624SilMS GC Columns. Both phases offer the low to mid polarity phase, 6% cyanopropylphenyl methypolysilozane.

TraceGOLD TG-624 GC Columns provide 90+% resolution of the first six gases in EPA Method 8260 and EPA Method 524.4. These columns are also ideal for EPA Methods 624 and 608.
TraceGOLD TG-624SilMS GC Columns provide high thermal stability with maximum temperatures up to 320°C, which is ideal for volatile organics analysis. They are highly inert, providing excellent peak shape for a wide range of compounds.

Key Features

Applications:

Residual solvents
Volatile organic compounds
Alcohols
Oxygenates

Order Codes

Code	Description
26085-4960	Catalog Number: 26085-4960 Unit Size: Each Diameter (Metric): 0.18 mm Film Thickness: 1 μm Length (Metric): 40 m Stationary Phase: TraceGOLD™ TG-624
26085-3320	Catalog Number: 26085-3320 Unit Size: Each Diameter (Metric): 0.25 mm Film Thickness: 1.4 μm Length (Metric): 30 m Stationary Phase: TraceGOLD™ TG-624
26059-3390	Catalog Number: 26059-3390 Unit Size: Each Diameter (Metric): 0.32 mm Film Thickness: 1.8 μm Length (Metric): 30 m Stationary Phase: TraceGOLD™ TG-624 SilMS
26059-4950	Catalog Number: 26059-4950 Unit Size: Each Diameter (Metric): 0.18 mm Film Thickness: 1 μm Length (Metric): 20 m Stationary Phase: TraceGOLD™ TG-624 SilMS
26059-4080	Catalog Number: 26059-4080 Unit Size: Each Diameter (Metric): 0.53 mm Film Thickness: 3 μm Length (Metric): 60 m Stationary Phase: TraceGOLD™ TG-624 SilMS
26059-3410	Catalog Number: 26059-3410 Unit Size: Each Diameter (Metric): 0.32 mm Film Thickness: 1.8 μm Length (Metric): 60 m Stationary Phase: TraceGOLD™ TG-624 SilMS
26085-3330	Catalog Number: 26085-3330 Unit Size: Each Diameter (Metric): 0.25 mm Film Thickness: 1.4 μm Length (Metric): 60 m Stationary Phase: TraceGOLD™ TG-624
26085-3390	Catalog Number: 26085-3390 Unit Size: Each Diameter (Metric): 0.32 mm Film Thickness: 1.8 μm Length (Metric): 30 m Stationary Phase: TraceGOLD™ TG-624
26085-3410	Catalog Number: 26085-3410 Unit Size: Each Diameter (Metric): 0.32 mm Film Thickness: 1.8 μm Length (Metric): 60 m Stationary Phase: TraceGOLD™ TG-624
26085-3960	Catalog Number: 26085-3960 Unit Size: Each Diameter (Metric): 0.53 mm Film Thickness: 3 μm Length (Metric): 30 m Stationary Phase: TraceGOLD™ TG-624
26085-4080	Catalog Number: 26085-4080 Unit Size: Each Diameter (Metric): 0.53 mm Film Thickness: 3 μm Length (Metric): 60 m Stationary Phase: TraceGOLD™ TG-624
26085-4090	Catalog Number: 26085-4090 Unit Size: Each Diameter (Metric): 0.53 mm Film Thickness: 3 μm Length (Metric): 105 m Stationary Phase: TraceGOLD™ TG-624
26085-4900	Catalog Number: 26085-4900 Unit Size: Each Diameter (Metric): 0.53 mm Film Thickness: 3 μm Length (Metric): 75 m Stationary Phase: TraceGOLD™ TG-624
26085-4950	Catalog Number: 26085-4950 Unit Size: Each Diameter (Metric): 0.18 mm Film Thickness: 1 μm Length (Metric): 20 m Stationary Phase: TraceGOLD™ TG-624
