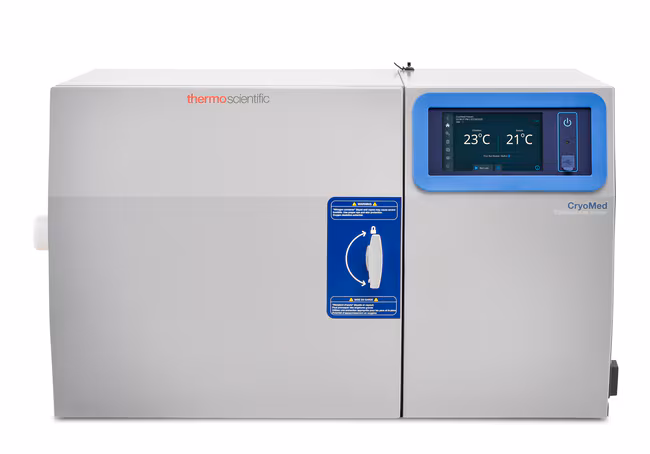

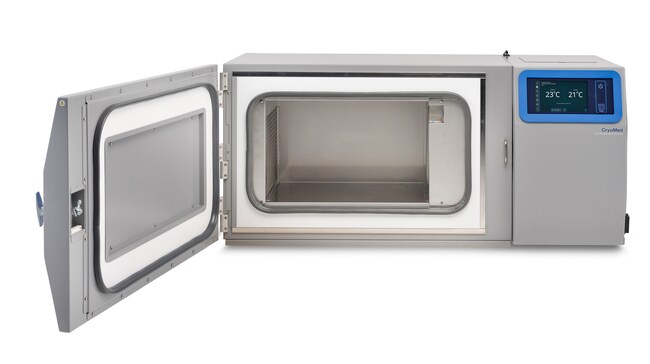

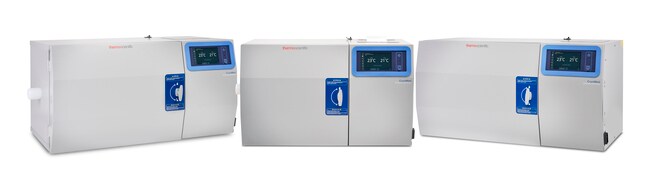

CryoMed™ Controlled-Rate Freezer, General Purpose (Thermo Scientific™)

For customers in research, cell and gene therapy, vaccine production, and biobanking, the CryoMed Controlled-Rate Freezer (CRF) provides precise, repeatable freezing results that protect samples from intracellular freezing. The CryoMed CRF features enhanced data traceability via a touch screen user interface and offers customizable freezing profiles while supporting 21 CFR part 11 and GMP needs.

Key Features

Thermo Scientific CryoMed Controlled-Rate Freezers (CRF) are designed with reliability, protection, and data traceability in mind for your sample preparation and GMP production needs.

User-friendly operation with enhanced data traceability

Intuitive touchscreen display allows for easy set-up, operation, and review of a freezing run
Six pre-set freezing profiles and space for up to 14 user-defined, “custom” freeze profiles
Integrated touchscreen UI logs usage and events to support 21 CFR part 11 requirements
USB data export of .pdf file run logs support 21 CFR part 11
User security: 3 levels of user accessibility
“Run last” feature allows the same profile to be run consecutively with the touch of a button
PC interface software provides remote operation capabilities, run review, and custom profile creation

Real-time run monitoring for sample protection

Chamber and sample temperatures are monitored by Type T thermocouples, eliminating lag time and providing “real time” responsiveness
Standard alarms to alert users of thermocouple failures, heater malfunction, high/low temperature limits, temperature tracking, power failure, and completion of run
Remote alarm contacts
Optional thermal printer

Reliable temperature performance for high throughput usage

Dual solenoid valves are designed to balance LN2 injection volume for precise temperature control and accelerated freezing
Preventative maintenance indicator for LN2 solenoid replacement limits downtime
Temperature control and uniformity achieved via an air-handling and liquid nitrogen injection ring system
Compatible with VHP cleaning techniques
Environmentally friendly insulating foam
Type 304 stainless steel with exterior powder-coat finish

Warranty varies by region. Check with your local representative for more information

Order Codes

Code	Description
TSCM48XV	Catalog Number: TSCM48XV Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 220-230 V, 50/60Hz Capacity (Metric): 48 L
TSCM17PA	Catalog Number: TSCM17PA Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 120 V, 60Hz Capacity (Metric): 17 L
TSCM17PL	Catalog Number: TSCM17PL Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 100 V, 50/60Hz Capacity (Metric): 17 L
TSCM17PV	Catalog Number: TSCM17PV Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 220-230 V, 50/60Hz Capacity (Metric): 17 L
TSCM34PA	Catalog Number: TSCM34PA Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 120 V, 60Hz Capacity (Metric): 34 L
TSCM34PL	Catalog Number: TSCM34PL Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 100 V, 50/60Hz Capacity (Metric): 34 L
TSCM34PV	Catalog Number: TSCM34PV Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 220-230 V, 50/60Hz Capacity (Metric): 34 L
TSCM48PA	Catalog Number: TSCM48PA Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 120 V, 60Hz Capacity (Metric): 48 L
TSCM48PL	Catalog Number: TSCM48PL Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 100 V, 50/60Hz Capacity (Metric): 48 L
TSCM48PV	Catalog Number: TSCM48PV Unit Size: Each Model: General Purpose with Printer Electrical Requirements: 220-230 V, 50/60Hz Capacity (Metric): 48 L
TSCM17XA	Catalog Number: TSCM17XA Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 120 V, 60Hz Capacity (Metric): 17 L
TSCM17XL	Catalog Number: TSCM17XL Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 100 V, 50/60Hz Capacity (Metric): 17 L
TSCM17XV	Catalog Number: TSCM17XV Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 220-230 V, 50/60Hz Capacity (Metric): 17 L
TSCM34XA	Catalog Number: TSCM34XA Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 120 V, 60Hz Capacity (Metric): 34 L
TSCM34XL	Catalog Number: TSCM34XL Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 100 V, 50/60Hz Capacity (Metric): 34 L
TSCM34XV	Catalog Number: TSCM34XV Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 220-230 V, 50/60Hz Capacity (Metric): 34 L
TSCM48XA	Catalog Number: TSCM48XA Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 120 V, 60Hz Capacity (Metric): 48 L
TSCM48XL	Catalog Number: TSCM48XL Unit Size: Each Model: General Purpose without Printer Electrical Requirements: 100 V, 50/60Hz Capacity (Metric): 48 L
