Locator™ Cryogenic Rack and Box Systems (Thermo Scientific™)

Key Features

Features:

• Compact design minimizes space requirements while maximizing storage capacity.
• System is suited for both manual and computerized inventory record-keeping methods.
• Super-insulated vessels have special, narrow-mouth design that conserves liquid nitrogen by minimizing evaporation.
• Samples are stored below -180°C, even when less than 2 in. (5 cm) of liquid nitrogen remains in the vessel.
• Ultrasonic Level Monitor safeguards irreplaceable samples with minimal liquid nitrogen evaporation and conduction.
• Advanced vacuum insulation minimizes liquid nitrogen evaporation and reduces operating costs.
• Optional monitor provides continuous LED readout of liquid nitrogen level; activates visual and audible alarms when level falls below safe range of approximately 1 in. (2.5 cm).
• Optional alarm also alerts operator in the event of excessive liquid nitrogen loss.
• Secure locking hasp prevents unauthorized entry.

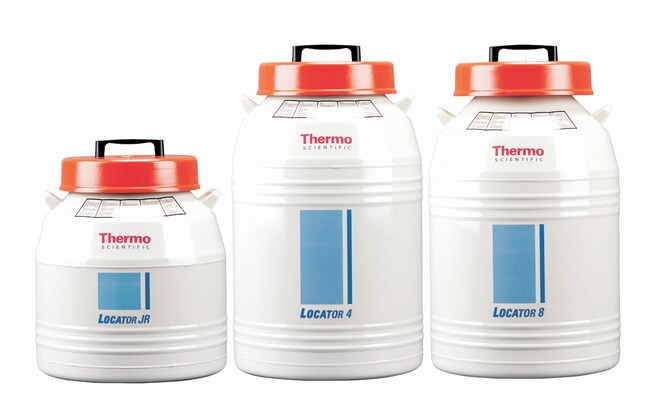

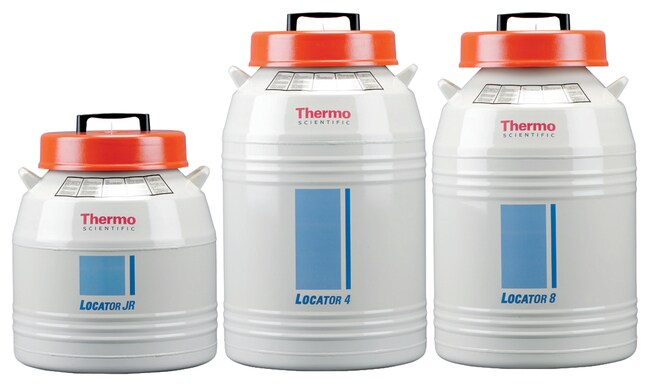

Locator Jr.:

• Static holding time: 70 days
• 1600 (100/box)
• Evaporation rate: 0.85 L/day

Locator 4:

• Static holding time: 112 days
• 3600 (100/box)
• Evaporation rate: 0.99 L/day

Locator 8:

• Static holding time: 185 days
• 1800 (25/box)
• Evaporation rate: 0.6 L/day

Includes:

Stainless steel indexed racks that fit into corresponding locations in the vessel. Each rack has individual storage compartments that hold one Thermo Scientific™ Nalgene™ Cryogenic Storage Box.

Requires:

Nalgene Cryogenic Storage Boxes (order separately). Each box has individually numbered storage areas for use with vials sized 2.0 mL and smaller.

Note:

Stated capacities are for Nalgene 1.2/2.0 mL cryogenic vials.

Compatible with:

• Boxes, Nalgene, 2 in. for 1.0 and 1.5 mL vials, 100 vials per box, case of 10 (CS509X24)
• Boxes, Nalgene, 2 in. for 2 mL vials, 81 vials per box, case of 40 (CS509X4); case of 20 (CS509X5)
• Boxes, Nalgene, 4 in. for 5 mL vials, 81 vials per box, each (CS509X10)
• CryoClaw™ (AY509X18)
• Cups, Suction, 2 replacements for CryoClaw (AY509X19)
• Logbook (LT509X5)
• Level Monitor, customer-installed: CN509X3 (120V, Jr.); CN509X6 (120V, 4); CN509X9 (120V, 8); CN509X1 (220V, Jr.); CN509X4 (220V, 4); CN509X7 (220V, 8)
• Rack, for 5.0 mL vials (does not include boxes) (HR509X19A)
• Vials, 1 mL, case of 500 (AY509X32)
• Vials, Cryogenic, 1.2 mL, case of 500, 1.2 mL (AY509X13)
• Vials, 1.5 mL, case of 500 (AY509X33)
• Vials, Cryogenic, 2.0 mL, case of 500, 2.0 mL (AY509X12)
• Warranty varies by country, please contact us for details

Order Codes

Code	Description
CY50975	Catalog Number: CY50975 Unit Size: Each Description: Locator 8, w/monitor Holds: Vials (1800, 25/Box) Monitoring Options: Ultrasonic Level Voltage: 120 V
CY509105	Catalog Number: CY509105 Unit Size: Each Description: Locator Jr. w/level monitor Holds: Vials (1600, 100/Box) Monitoring Options: Ultrasonic Level Voltage: 220 V
CY509107	Catalog Number: CY509107 Unit Size: Each Description: Locator 4 w/level monitor Holds: Vials (3600, 100/Box) Monitoring Options: Ultrasonic Level Voltage: 220 V
CY509110	Catalog Number: CY509110 Unit Size: Each Description: Locator 8 w/level monitor Holds: Vials (1800, 25/Box) Monitoring Options: Ultrasonic Level Voltage: 220 V
CY50925	Catalog Number: CY50925 Unit Size: Each Description: Locator Jr., w/o monitor Holds: Vials (1600, 100/Box) Monitoring Options: Alarm, Recorder
CY50935	Catalog Number: CY50935 Unit Size: Each Description: Locator 4, w/o monitor Holds: Vials (3600, 100/Box) Monitoring Options: Alarm, Recorder
CY50945	Catalog Number: CY50945 Unit Size: Each Description: Locator 8, w/o monitor Holds: Vials (1800, 25/Box) Monitoring Options: Alarm, Recorder
CY50955	Catalog Number: CY50955 Unit Size: Each Description: Locator Jr. w/level monitor Holds: Vials (1600, 100/box) Monitoring Options: Ultrasonic Level Voltage: 120 V
CY50965	Catalog Number: CY50965 Unit Size: Each Description: Locator 4, w/monitor Holds: Vials (3600, 100/Box) Monitoring Options: Ultrasonic Level Voltage: 120 V
