TSX Series High-Performance Blood Bank Refrigerators (Thermo Scientific™)

Key Features

• The unique V-drive technology is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
• Easy to use microprocessor control with interior light, setpoint security and alarms
• Standard door locks provide comfort and assurance
• Factory pre-set to 4°C to meet blood storage guidelines
• Standard dual-zone temperature display probes

• Certified to AABB SCoPE
• Listed as US FDA Class II and/or MDD 93/42/EEC Class IIa* Medical Devices
• Tested and certified to conform with the design and safety standards of UL/EN 61010, and CE Directive 2011/65/EU and 2015/863

• Ergonomically designed door handle with a soft-touch grip
• The controller is angled to help prevent neck strain
• Convenient, fully extendable and adjustable stainless-steel drawers
• Whisper quiet with a sound level of 52 dBA, enabling end users to work alongside the refrigerator without distraction
• Self-closing door with 90° stop to assist with inventory loads
• Standard, built-in chart recorder

• US EPA ENERGY STAR Certified with up to 40% less energy usage than conventional refrigerant models

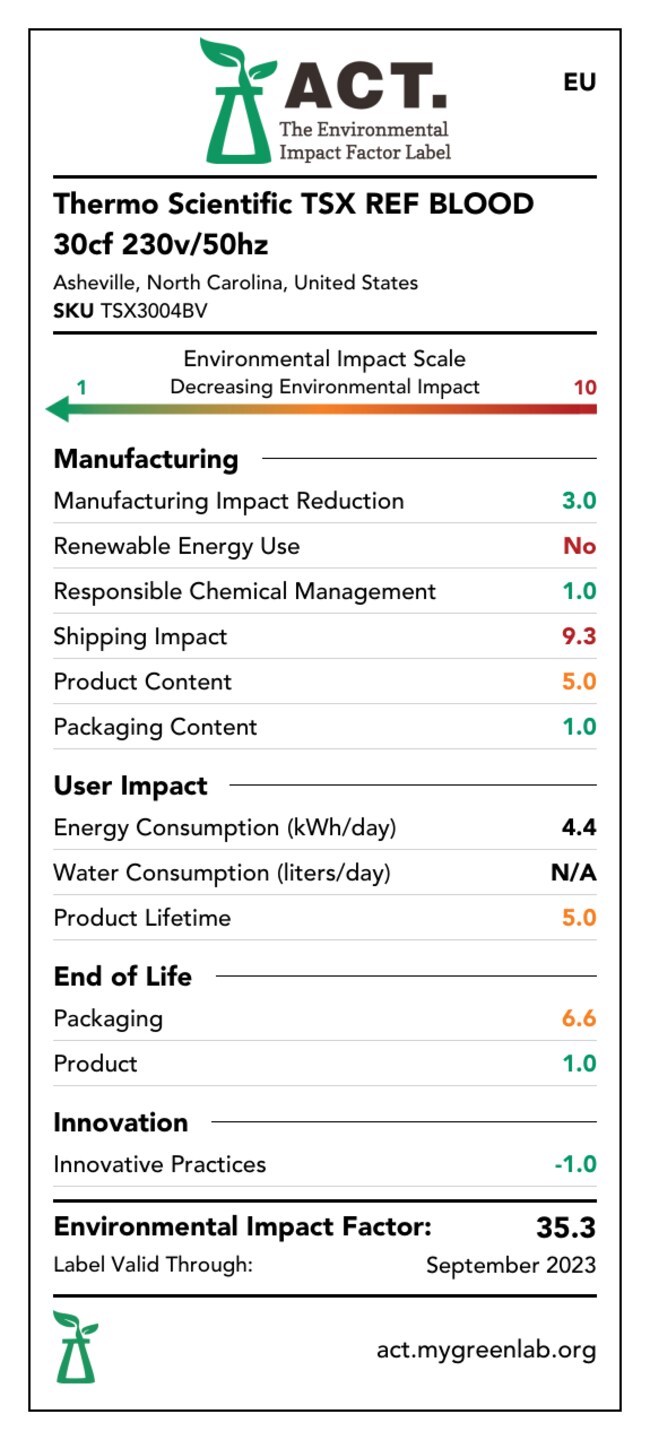

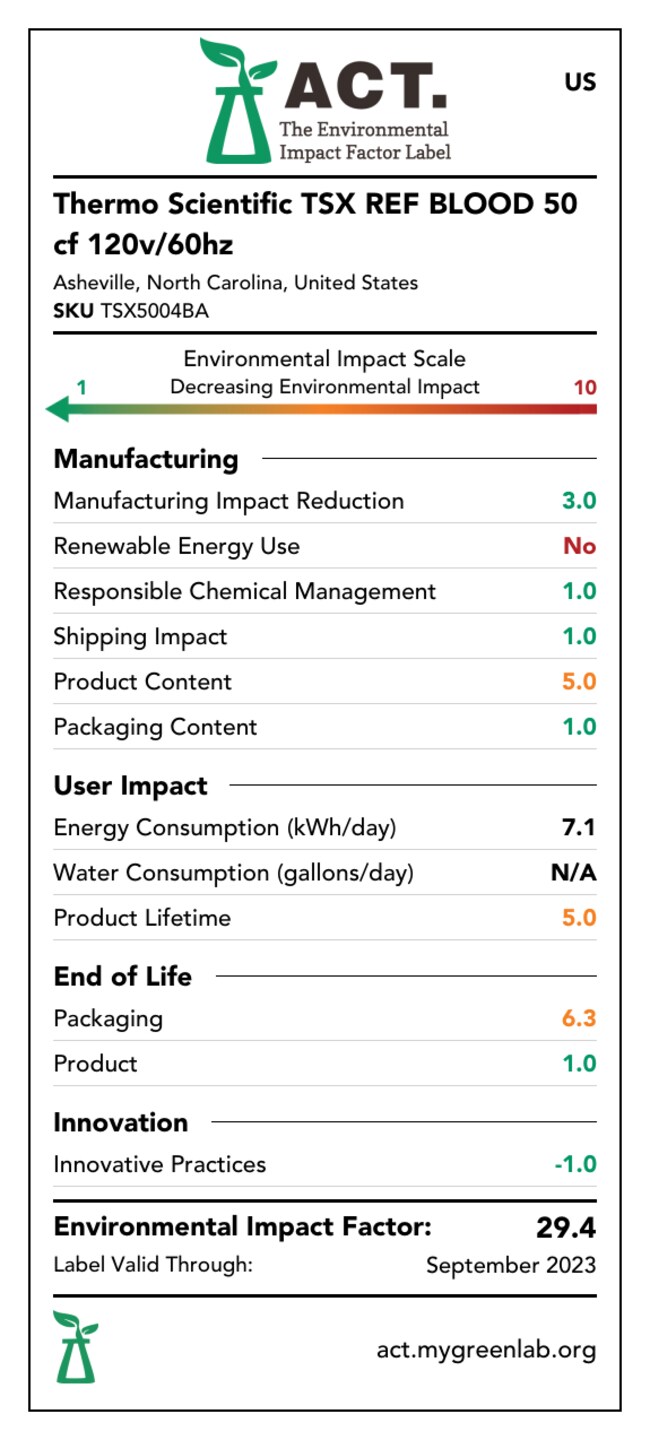

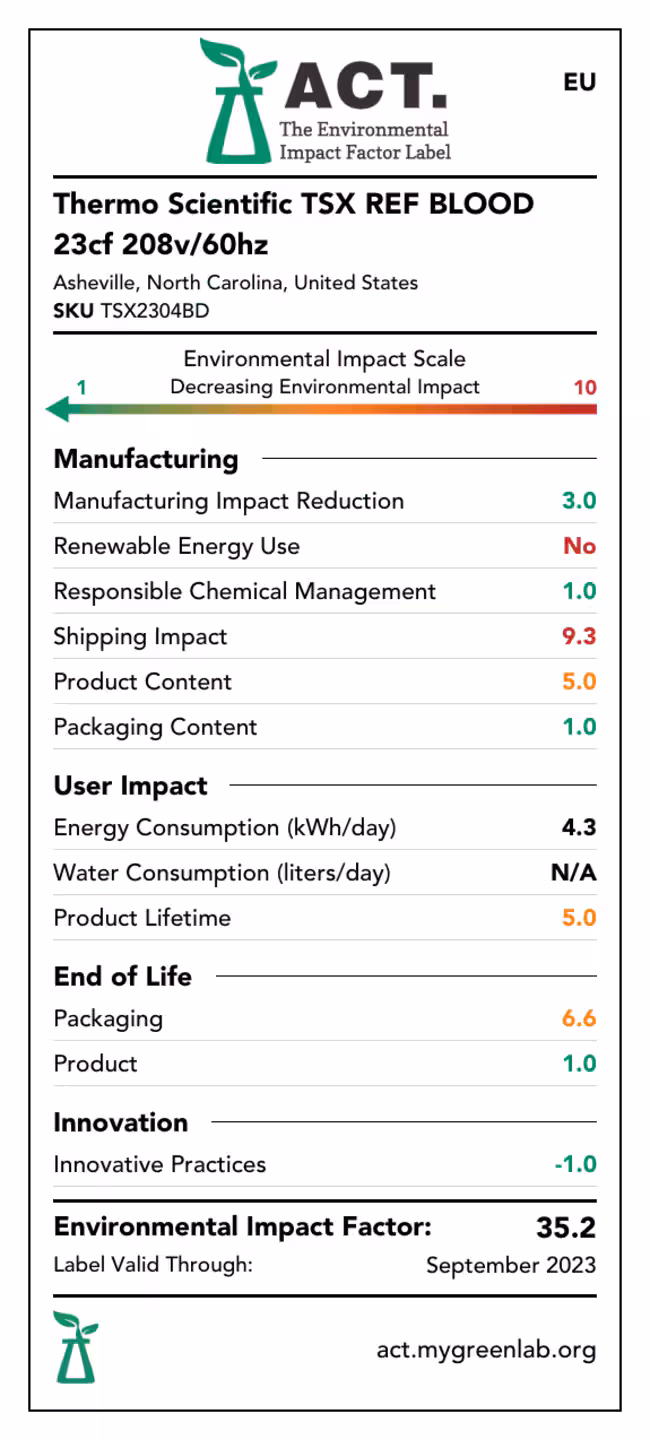

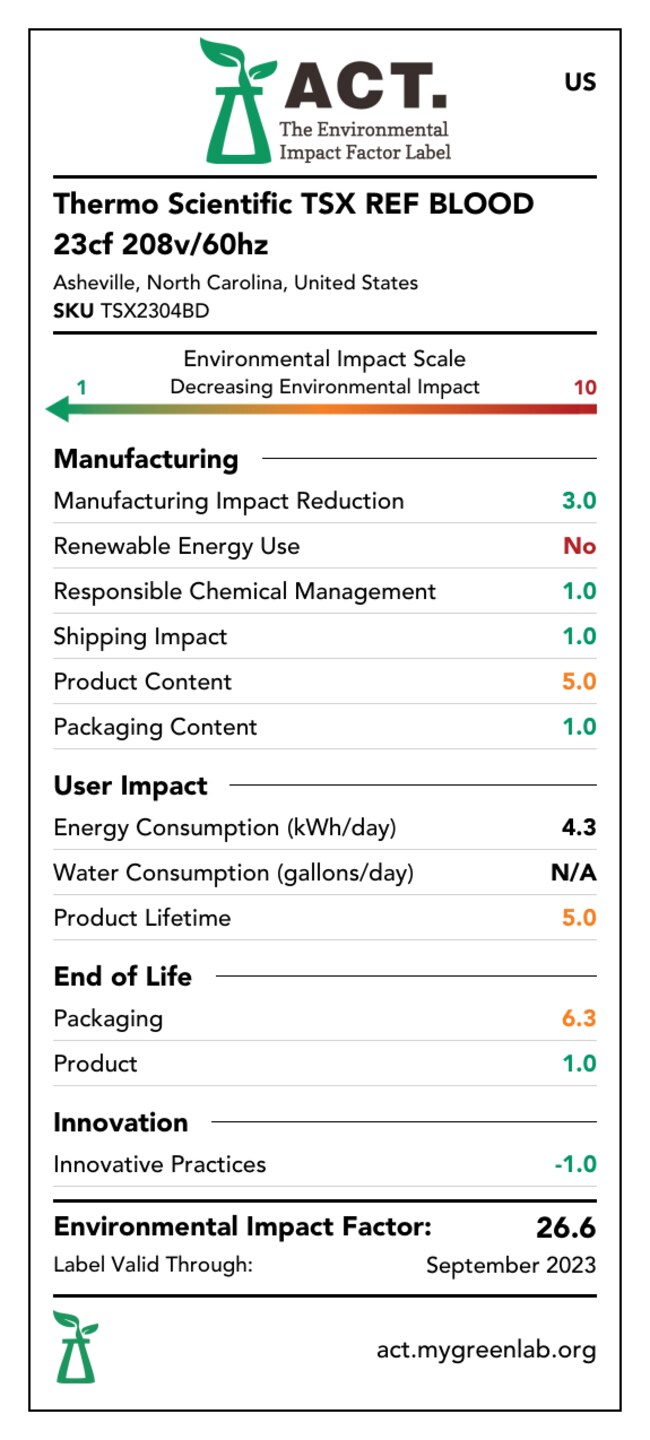

• ACT Environmental Impact Factor Label Certified, providing third-party verification of the sustainable impacts of the product, its operations, and its end of life.
• Natural, R290 refrigerants and water-blown foam make the TSX Series compliant with EU F-GAS regulations, U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), and other Global Environmental Regulations.
• Manufactured in an award-winning, zero-waste to landfill facility

• Thermo Scientific™ DeviceLink™ Connect ready, enabling you to have a connected experience with your unit so you always—and anywhere— know the safety of your samples and the performance of your refrigerator or freezer.**
• Compatible with wireless monitoring systems and remote alarm contacts including our Thermo Scientific™ Smart-Vue™ Pro wireless monitoring systems

• Alternate Door swing configuration and door types
• Stainless Steel interior finish
• E-Lock Adapter kits
• 4-20 milliamp transmitters and other remote alarm modules
• Specialty, regional, and country specific plugs

• Industry Leading 120-month compressor warranty (varies by country, please contact us for details)
• Optional Validation Testing Programs include in house and field-based temperature mapping and Installation Qualification (IQ) and Operation Qualification (OQ) programs
• Optional Factory Acceptance Test results including QC Test Log Sheets and QC Temperature Graphs

Order Codes

Code	Description
TSX5004BV	Catalog Number: TSX5004BV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Door Style: Double Glass Capacity (English): 51.1 cu. ft.
TSX1204BV	Catalog Number: TSX1204BV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Door Style: Glass Capacity (English): 11.5 cu. ft.
TSX2304BA	Catalog Number: TSX2304BA Unit Size: Each Plug Type: NEMA 5-15 Electrical Requirements: 115V, 60Hz Door Style: Glass Capacity (English): 23 cu. ft.
TSX3004BV	Catalog Number: TSX3004BV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Door Style: Glass Capacity (English): 29.2 cu. ft.
TSX5004BD	Catalog Number: TSX5004BD Unit Size: Each Plug Type: NEMA 6-15 Electrical Requirements: 208-230V, 60Hz Door Style: Double Glass Capacity (English): 51.1 cu. ft.
TSX5004BA	Catalog Number: TSX5004BA Unit Size: Each Plug Type: NEMA 5-15 Electrical Requirements: 115V, 60Hz Door Style: Double Glass Capacity (English): 51.1 cu. ft.
TSX2304BD	Catalog Number: TSX2304BD Unit Size: Each Plug Type: NEMA 6-15 Electrical Requirements: 208-230V, 60Hz Door Style: Glass Capacity (English): 23 cu. ft.
TSX2304BV	Catalog Number: TSX2304BV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Door Style: Glass Capacity (English): 23 cu. ft.
