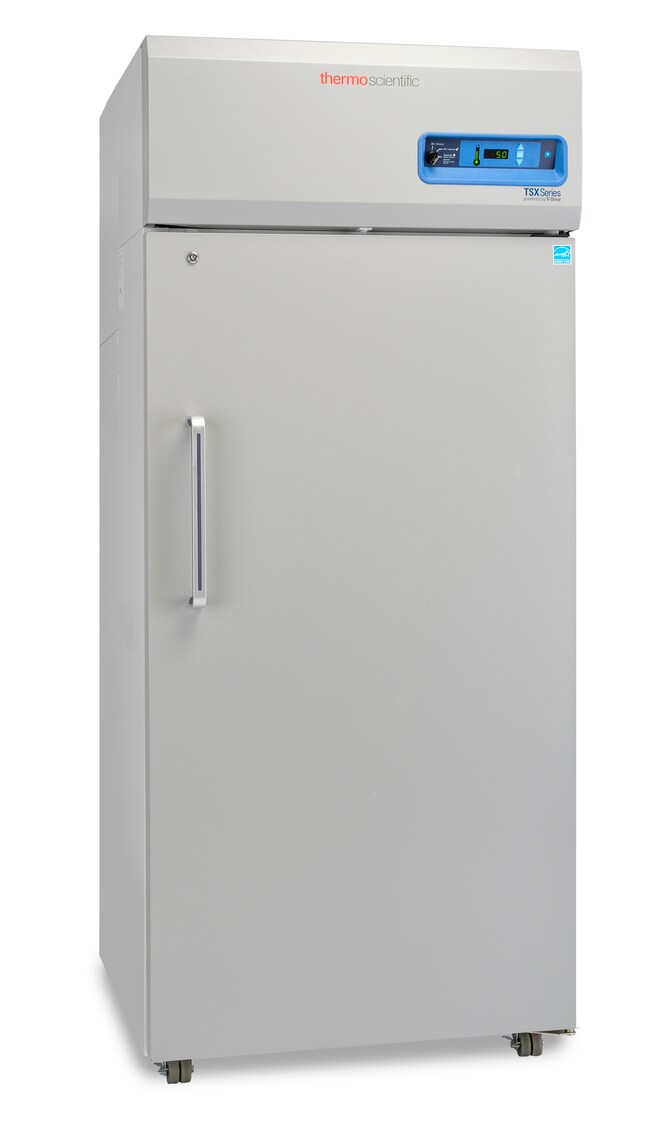

TSX Series High-Performance Lab Refrigerators (Thermo Scientific™)

Thermo Scientific™ TSX Series high-performance lab refrigerators are designed with features that support sample protection and sustainability objectives for the storage of media, reagents, chemotherapy, pharmaceutical and other medical and laboratory-grade storage requiring 2° to 8°C.  The Series’ V-drive technology is designed to provide temperature uniformity that continually adapts to user patterns, offering significant energy savings without compromising protection.



Featuring over 450W of reserve refrigeration capacity, the TSX series has the power to protect your product from temperature swings as a result of frequent and prolonged door access, large product loads, and other activities that introduce hear to the cabinet.



The TSX Series delivers the performance and quality you need, in addition to the low sound, low energy, and exceptional user experience you deserve.



Key Features

• Designed to safely store media, reagents, chemotherapy, pharmaceutical and other medical and laboratory-grade products requiring a temperature range of 2°C to 8°C
• Unique V-drive technology is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
• Easy to use microprocessor control with interior light, setpoint security and alarms
• Standard door locks provide comfort and assurance

• Tested to GMP Clean Room Class A / ISO 5 & 6 (ISO EN 14644-1) with easy to clean surfaces support USP <797> and <800> hazardous drug compounding and other clean room environments
• Tested and certified to conform with the design and safety standards of UL 471, 61010, and CE Directive 2011/65/EU and 2015/863

• Ergonomically designed door handle with a soft-touch grip
• The controller is angled to help prevent neck strain
• Convenient, easy to clean and adjustable epoxy coated full and half shelves
• Whisper quiet with a sound level of 52 dBA, enabling end users to work alongside the refrigerator without distraction
• Bright, LED interior lighting

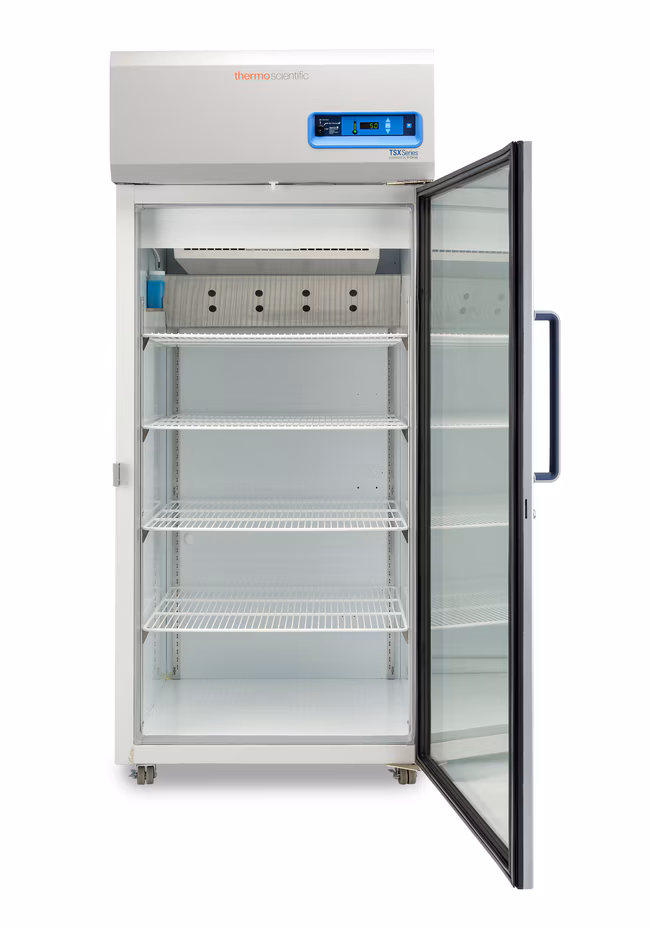

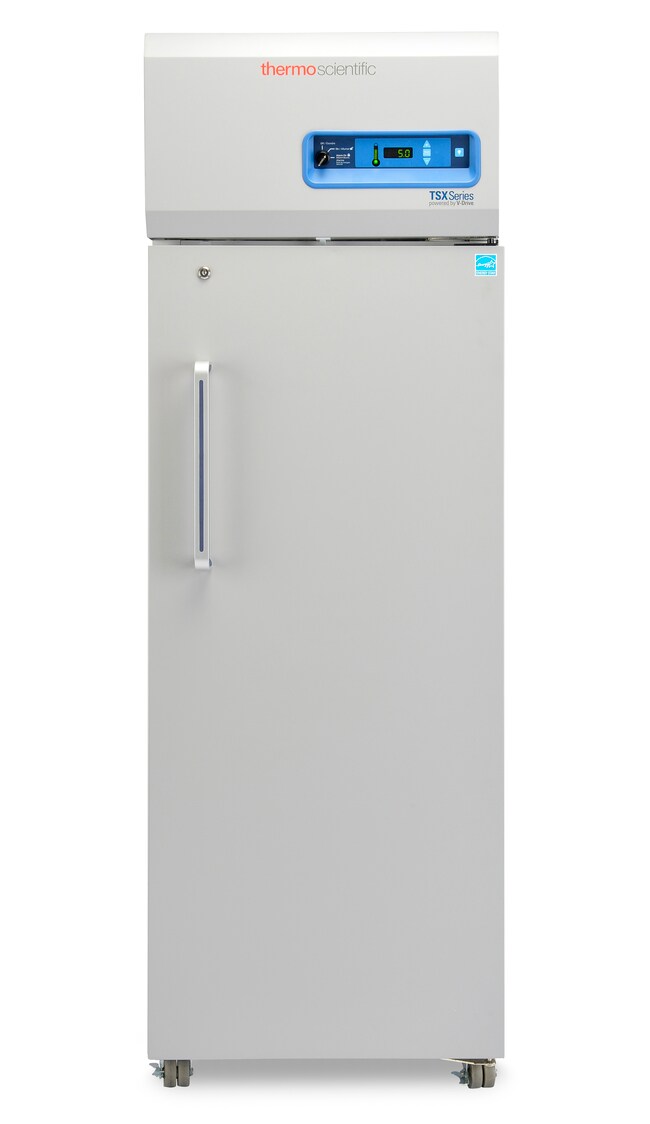

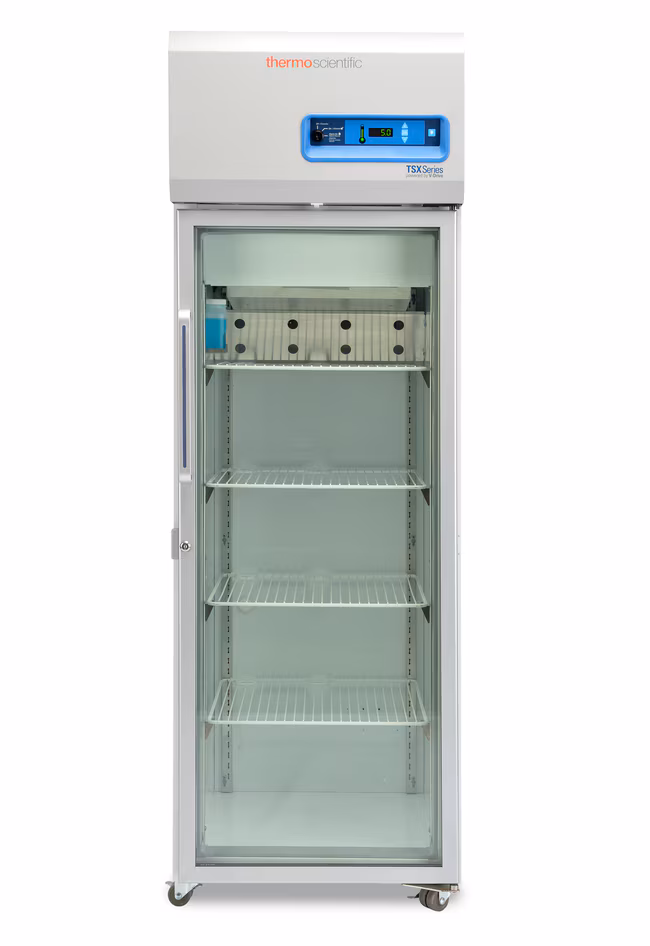

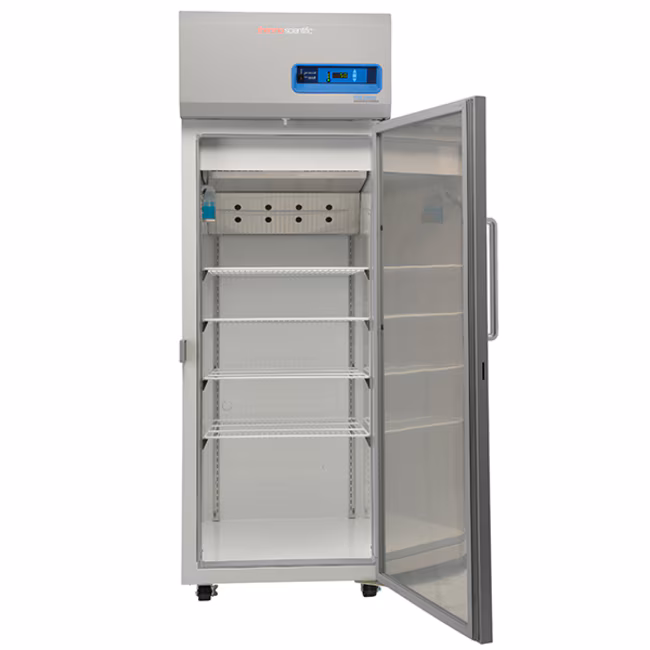

• Self-closing multipaned glass or solid doors with 90° stop to assist with inventory loads

• US EPA ENERGY STAR Certified with up to 40% less energy usage than conventional refrigerant models*

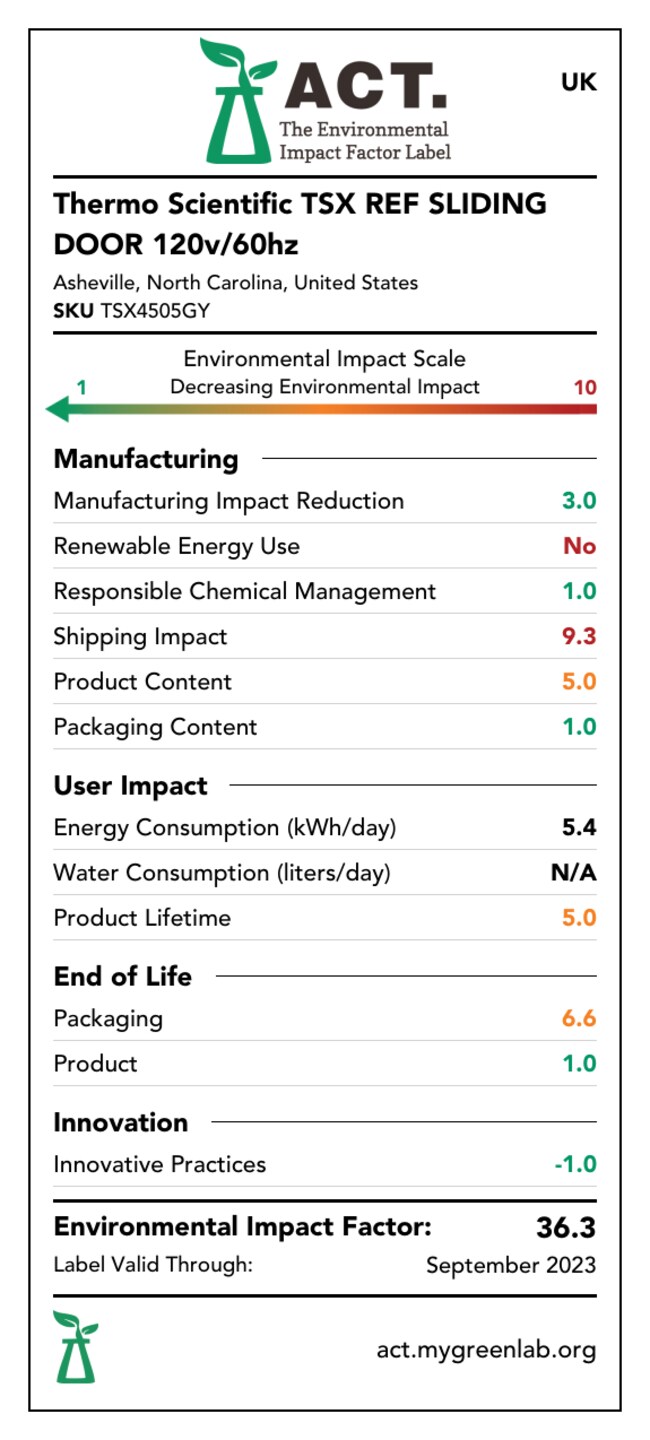

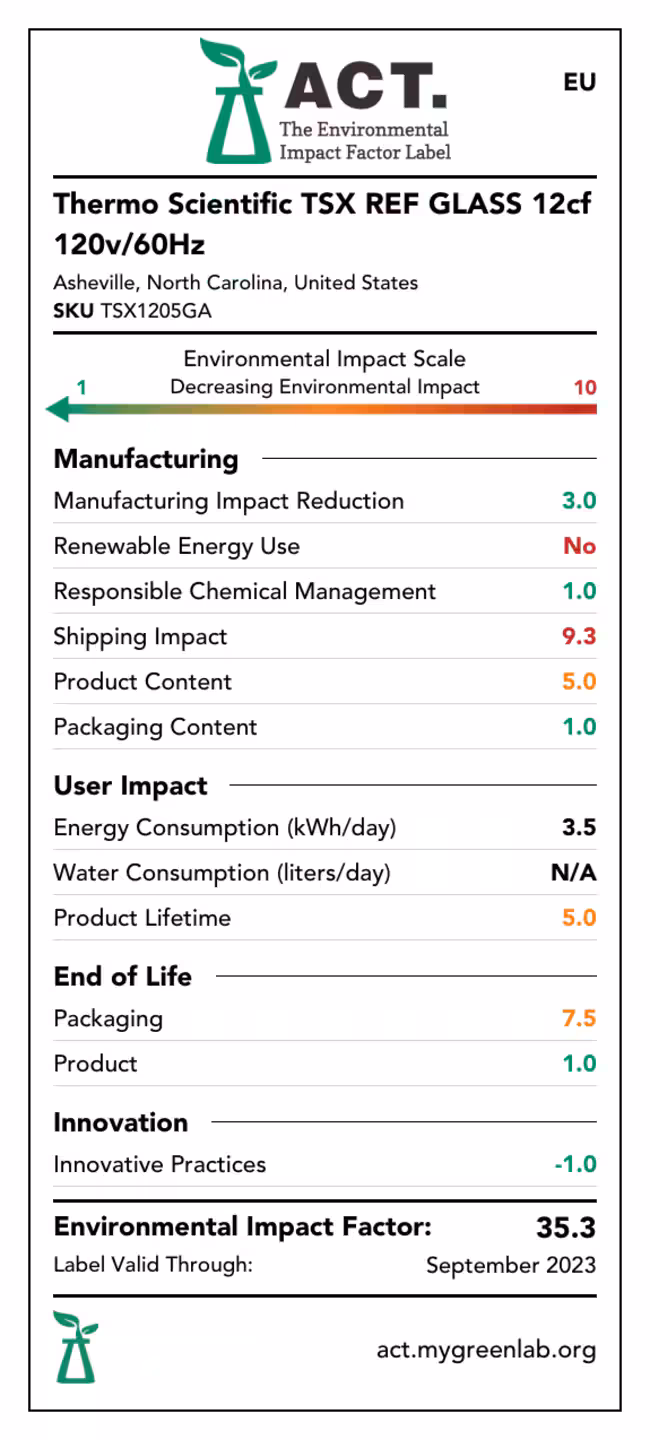

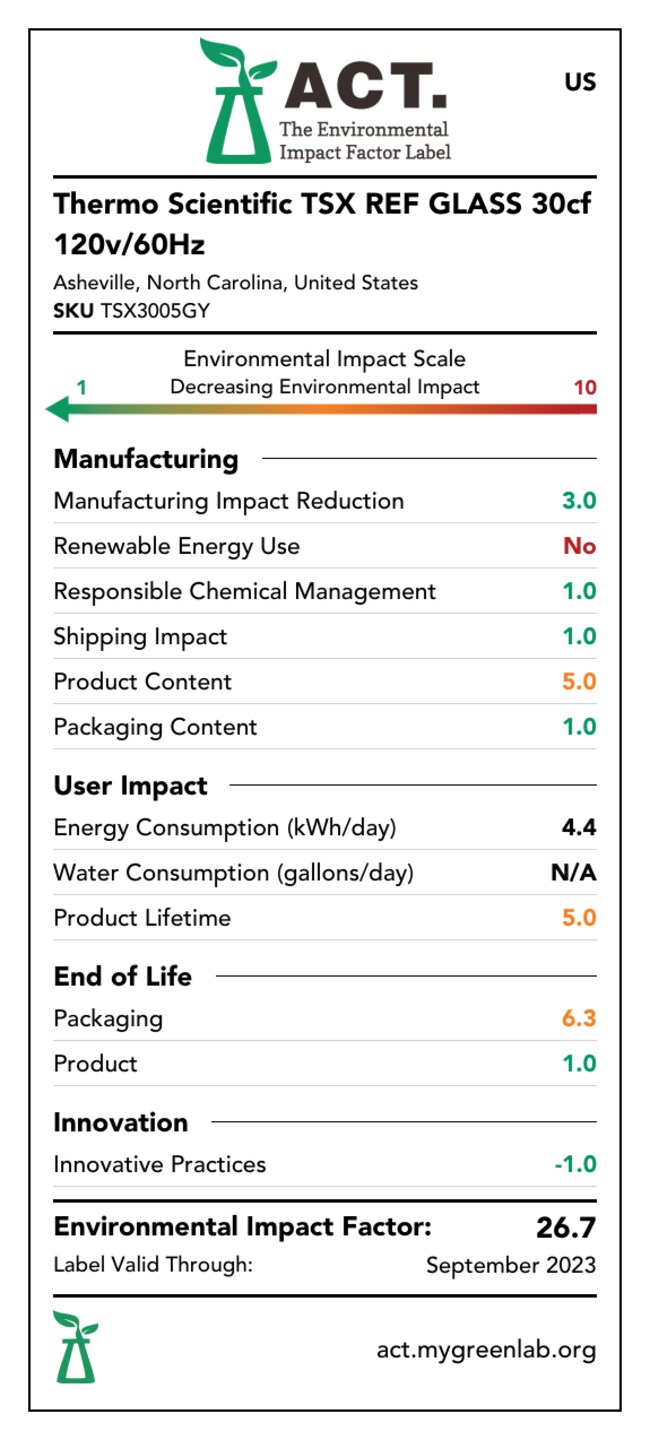

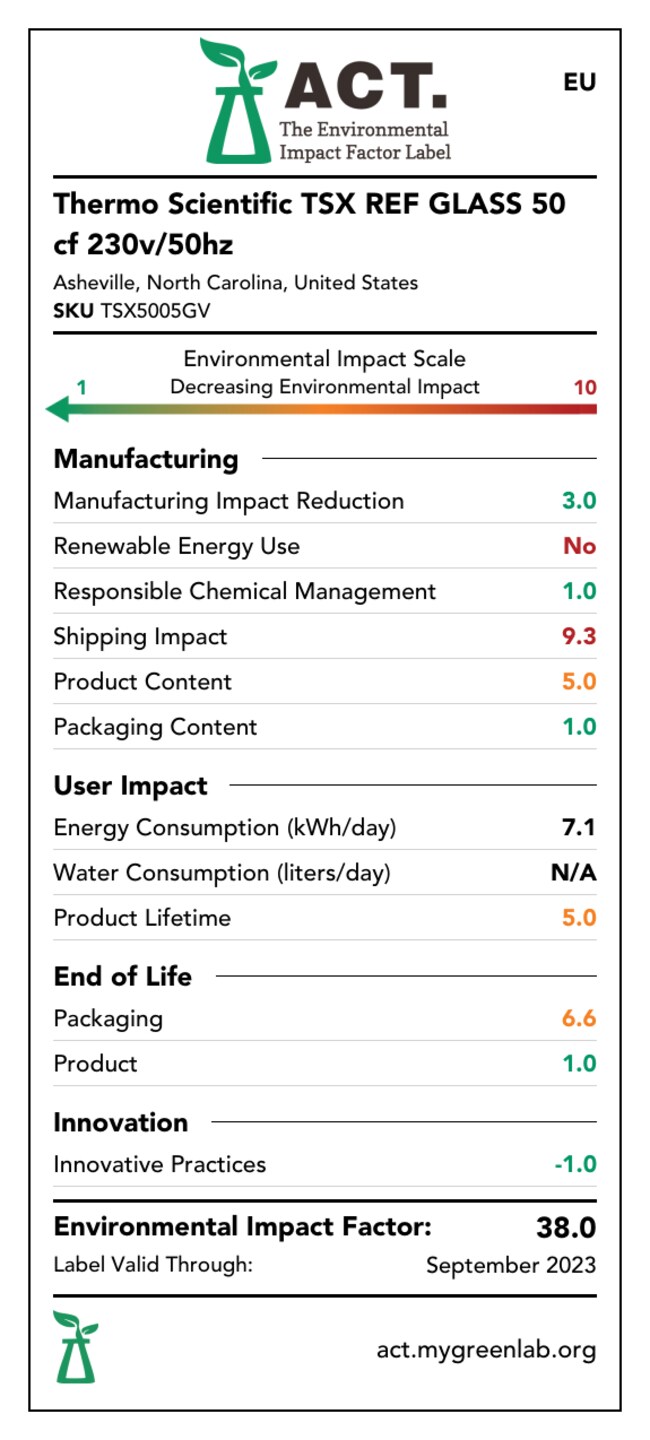

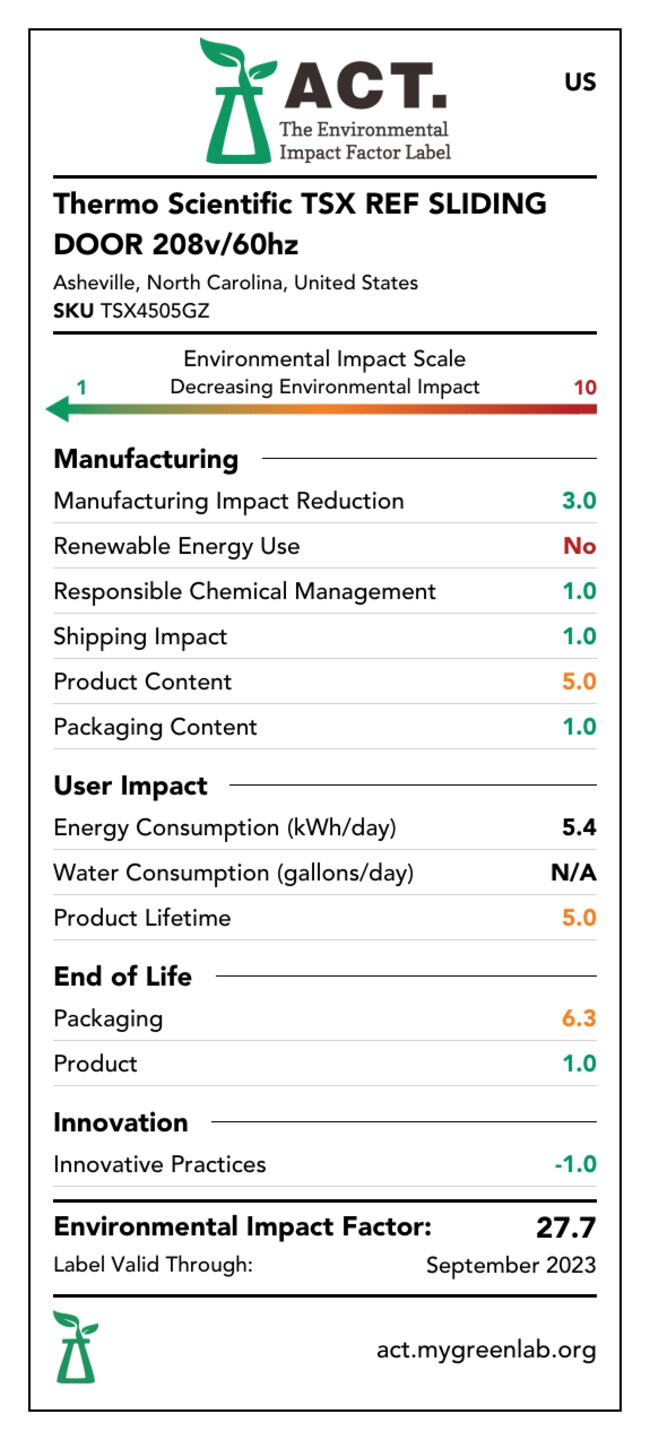

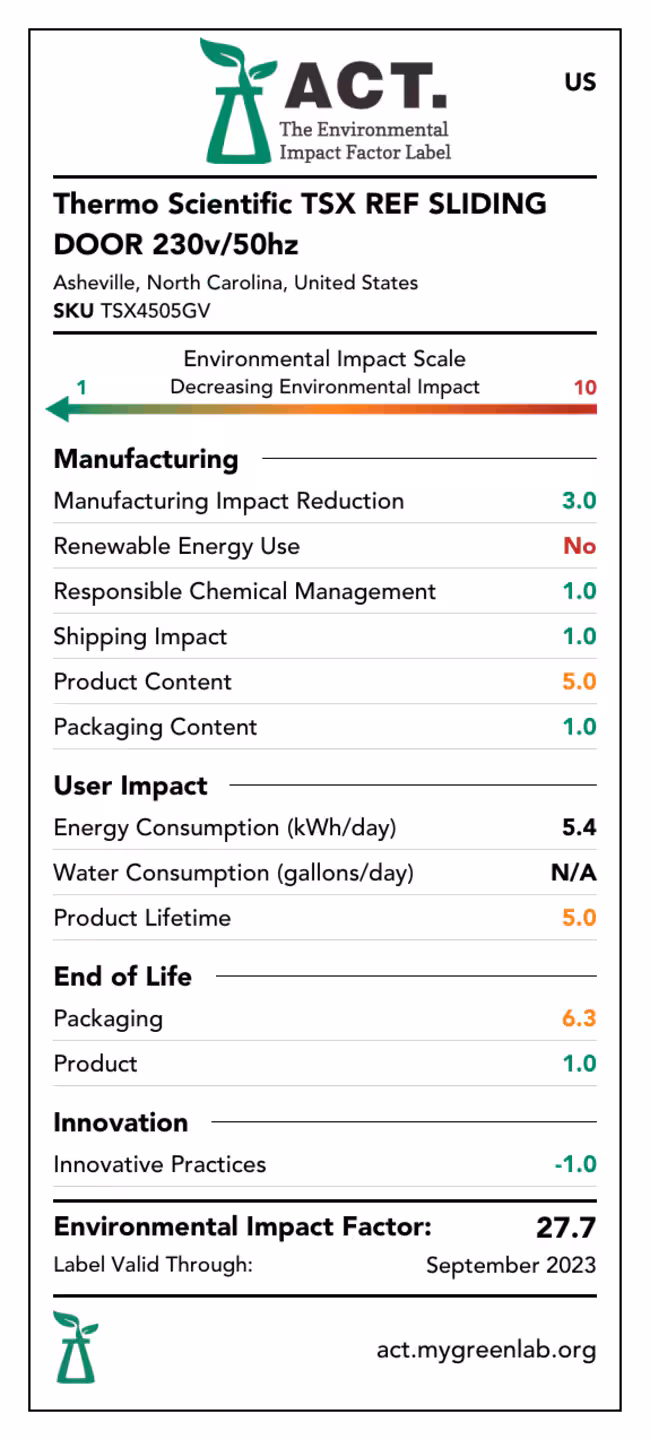

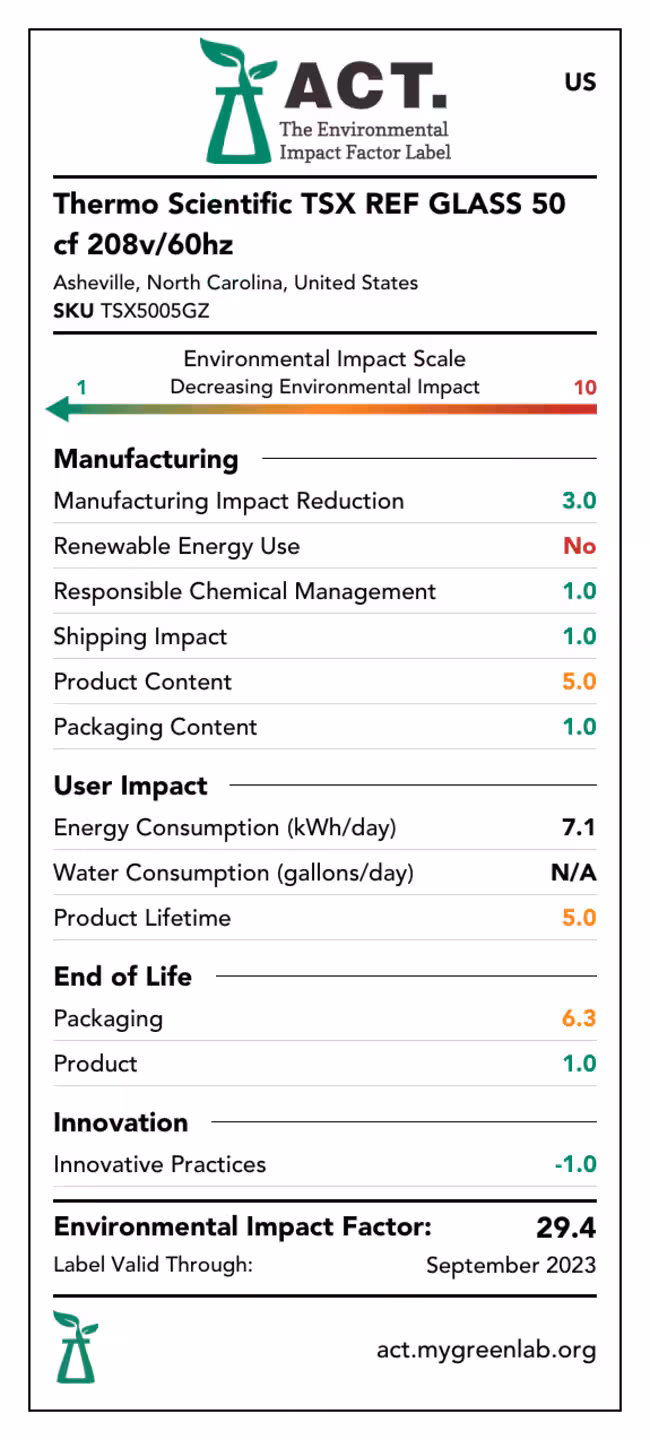

• ACT Environmental Impact Factor Label Certified, providing third-party verification of the sustainable impacts of the product, its operations, and its end of life. **
• Natural, R290 refrigerants and water-blown foam make the TSX Series compliant with EU F-GAS regulations, U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), and other Global Environmental Regulations.
• Manufactured in an award-winning, zero-waste to landfill facility

• Thermo Scientific™ DeviceLink™ Connect ready, enabling you to have a connected experience with your unit so you always—and anywhere— know the safety of your samples and the performance of your refrigerator or freezer.
• Compatible with wireless monitoring systems and remote alarm contacts including our Thermo Scientific™ Smart-Vue™ Pro wireless monitoring systems

• Alternate Door swing configuration and door types
• Extra and Alternate wire baskets, shelves, and drawers
• Free-standing or factory-installed chart recorders
• Stainless Steel interior finish
• E-Lock Adapter kits

Order Codes

Code	Description
TSX5005SV	Catalog Number: TSX5005SV Unit Size: Each Plug Type: CEE 7/7 Door Style: Double Solid Electrical Requirements: 208-230V, 50Hz Capacity (English): 51.1 cu. ft.
TSX2305GA	Catalog Number: TSX2305GA Unit Size: Each Plug Type: NEMA 5-15 Door Style: Glass Electrical Requirements: 115V, 60Hz Capacity (English): 23 cu. ft.

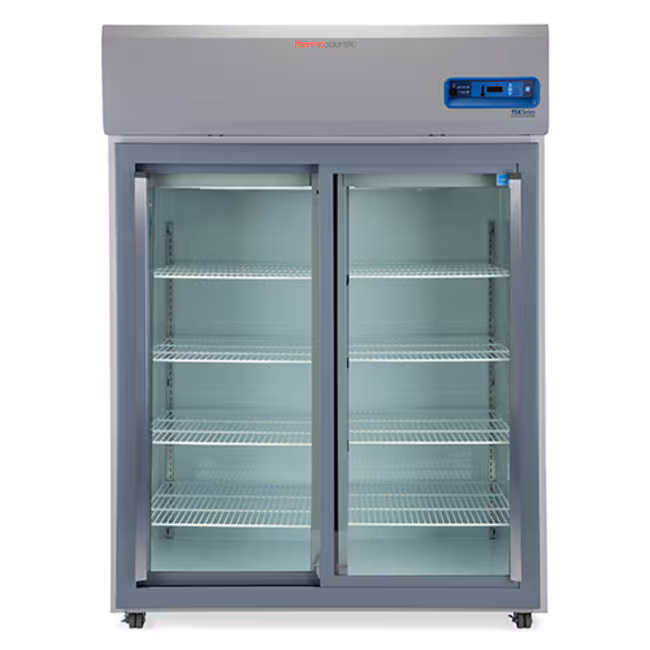

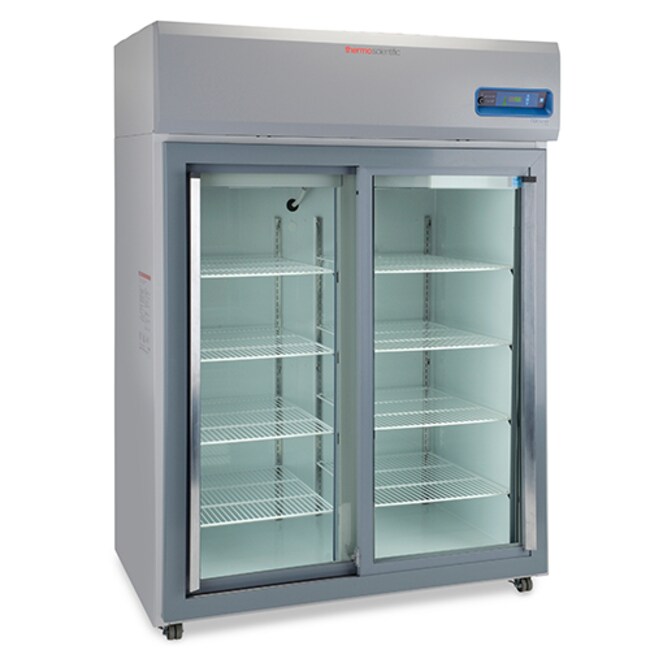

TSX4505GA	Catalog Number: TSX4505GA Unit Size: Each Plug Type: NEMA 5-15 Door Style: Sliding Glass Electrical Requirements: 115V, 60Hz Capacity (English): 45.8 cu. ft.
TSX4505GD	Catalog Number: TSX4505GD Unit Size: Each Plug Type: NEMA 6-15 Door Style: Sliding Glass Electrical Requirements: 208-230V, 60Hz Capacity (English): 45.8 cu. ft.
TSX4505GV	Catalog Number: TSX4505GV Unit Size: Each Plug Type: CEE 7/7 Door Style: Sliding Glass Electrical Requirements: 208-230V, 50Hz Capacity (English): 45.8 cu. ft.

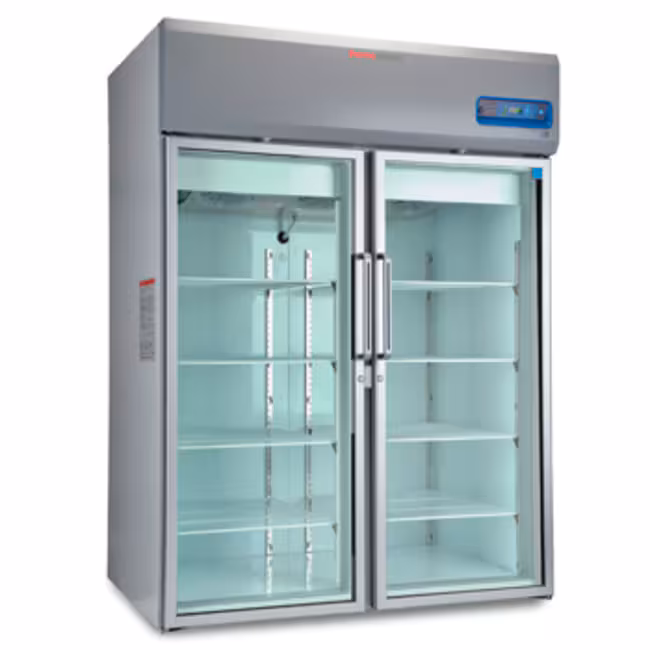

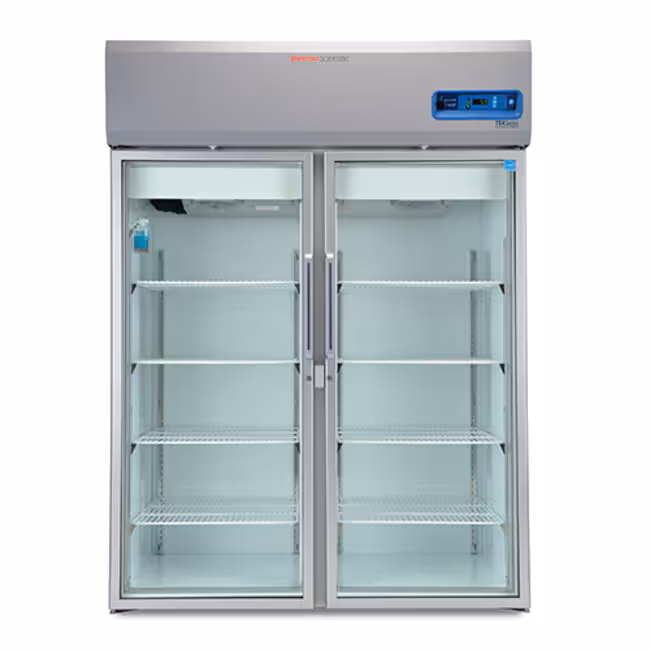

TSX5005GA	Catalog Number: TSX5005GA Unit Size: Each Plug Type: NEMA 5-15 Door Style: Double Glass Electrical Requirements: 115V, 60Hz Capacity (English): 51.1 cu. ft.
TSX5005GD	Catalog Number: TSX5005GD Unit Size: Each Plug Type: NEMA 6-15 Door Style: Double Glass Electrical Requirements: 208-230V, 60Hz Capacity (English): 51.1 cu. ft.
TSX5005GV	Catalog Number: TSX5005GV Unit Size: Each Plug Type: CEE 7/7 Door Style: Double Glass Electrical Requirements: 208-230V, 50Hz Capacity (English): 51.1 cu. ft.
TSX5005SA	Catalog Number: TSX5005SA Unit Size: Each Plug Type: NEMA 5-15 Door Style: Double Solid Electrical Requirements: 115V, 60Hz Capacity (English): 51.1 cu. ft.
TSX5005SD	Catalog Number: TSX5005SD Unit Size: Each Plug Type: NEMA 6-15 Door Style: Double Solid Electrical Requirements: 208-230V, 60Hz Capacity (English): 51.1 cu. ft.
TSX1205GV	Catalog Number: TSX1205GV Unit Size: Each Plug Type: CEE 7/7 Door Style: Glass Electrical Requirements: 208-230V, 50Hz Capacity (English): 11.5 cu. ft.
TSX1205SV	Catalog Number: TSX1205SV Unit Size: Each Plug Type: CEE 7/7 Door Style: Solid Electrical Requirements: 208-230V, 50Hz Capacity (English): 11.5 cu. ft.
TSX3005GV	Catalog Number: TSX3005GV Unit Size: Each Plug Type: CEE 7/7 Door Style: Glass Electrical Requirements: 208-230V, 50Hz Capacity (English): 29.2 cu. ft.
TSX3005SV	Catalog Number: TSX3005SV Unit Size: Each Plug Type: CEE 7/7 Door Style: Solid Electrical Requirements: 208-230V, 50Hz Capacity (English): 29.2 cu. ft.
TSX2305GD	Catalog Number: TSX2305GD Unit Size: Each Plug Type: NEMA 6-15 Door Style: Glass Electrical Requirements: 208-230V, 50/60Hz Capacity (English): 23 cu. ft.
TSX2305GV	Catalog Number: TSX2305GV Unit Size: Each Plug Type: CEE 7/7 Door Style: Glass Electrical Requirements: 208-230V, 50/60Hz Capacity (English): 23 cu. ft.

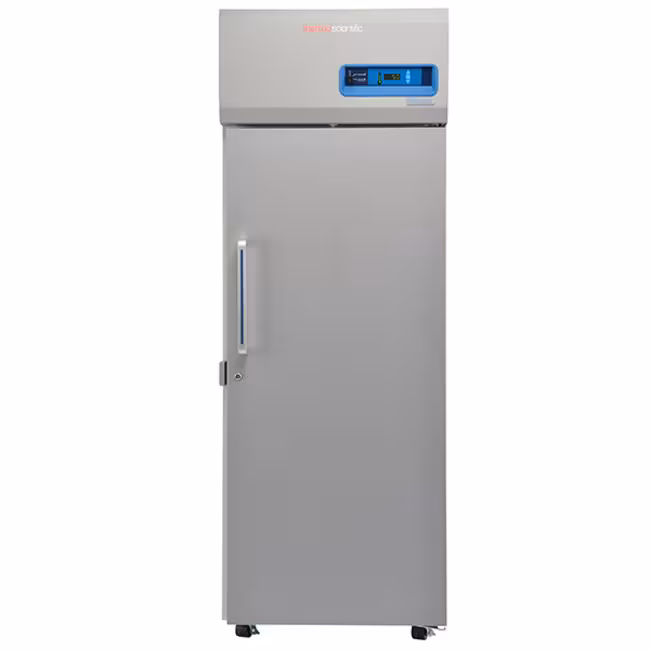

TSX2305SA	Catalog Number: TSX2305SA Unit Size: Each Plug Type: NEMA 5-15 Door Style: Solid Electrical Requirements: 115V, 60Hz Capacity (English): 23 cu. ft.
TSX2305SD	Catalog Number: TSX2305SD Unit Size: Each Plug Type: NEMA 6-15 Door Style: Solid Electrical Requirements: 208-230V, 50/60Hz Capacity (English): 23 cu. ft.
TSX2305SV	Catalog Number: TSX2305SV Unit Size: Each Plug Type: CEE 7/7 Door Style: Solid Electrical Requirements: 208-230V, 50/60Hz Capacity (English): 23 cu. ft.
