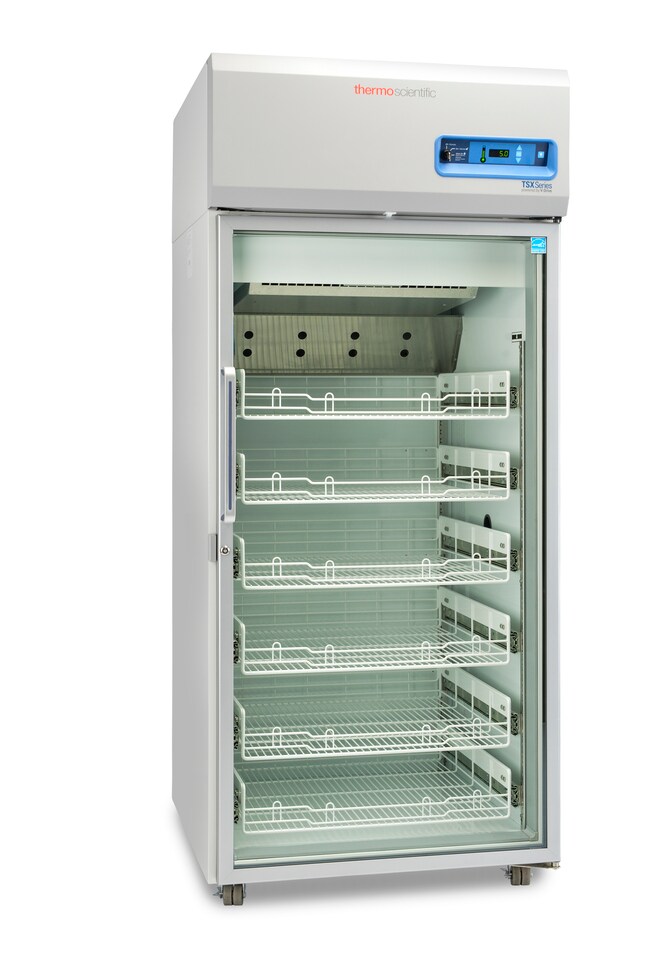

TSX Series High-Performance Pharmacy Refrigerators (Thermo Scientific™)

Thermo Scientific™ TSX Series high-performance pharmacy refrigerators are designed with features that support sample protection and sustainability objectives for the storage of pharmaceuticals, vaccines, chemotherapy and other medical and pharmacy-grade storage requiring 2° to 8°C. The Series’ V-drive technology is designed to provide temperature uniformity that continually adapts to user patterns, offering significant energy savings without compromising protection.

Certified to NSF/ANSI 456 Vaccine Storage standard, the TSX series can help you meet regulations and guidelines from the CDC, World Health Organization, and other Health Ministries on vaccine storage and handling.

The TSX Series delivers the performance and quality you need, in addition to the low sound, low energy, and exceptional user experience you deserve.

Key Features

The drive for sample integrity and security

Designed to safely store pharmaceuticals, vaccines, chemotherapy and other medical-grade storage requiring a temperature range of 2°C to 8°C
Unique V-drive technology is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
Easy to use microprocessor control with interior light, setpoint security and alarms
Standard door locks provide comfort and assurance

Enabling compliance

Tested and Certified to NSF/ANSI 456 Vaccine Storage standard and supports the US CDC, WHO, and other global vaccine storage guidelines and recommendations
Tested to GMP Clean Room Class A / ISO 5 & 6 (ISO EN 14644-1) with easy to clean surfaces support USP <797> and <800> hazardous drug compounding and other clean room environments
Tested and certified to conform with the design and safety standards of UL 471, 61010, and CE Directive 2011/65/EU and 2015/863

Designed for an ergonomic and comfortable experience

Ergonomically designed door handle with a soft-touch grip
The microprocessor controller is angled to help prevent neck strain
Convenient, fully extendable and adjustable basket drawers
Whisper quiet with a sound level of 52 dBA, enabling end users to work alongside the refrigerator without distraction
Self-closing door with 90° stop to assist with inventory loads

Verified sustainability

US EPA ENERGY STAR Certified with up to 40% less energy usage than conventional refrigerant models*

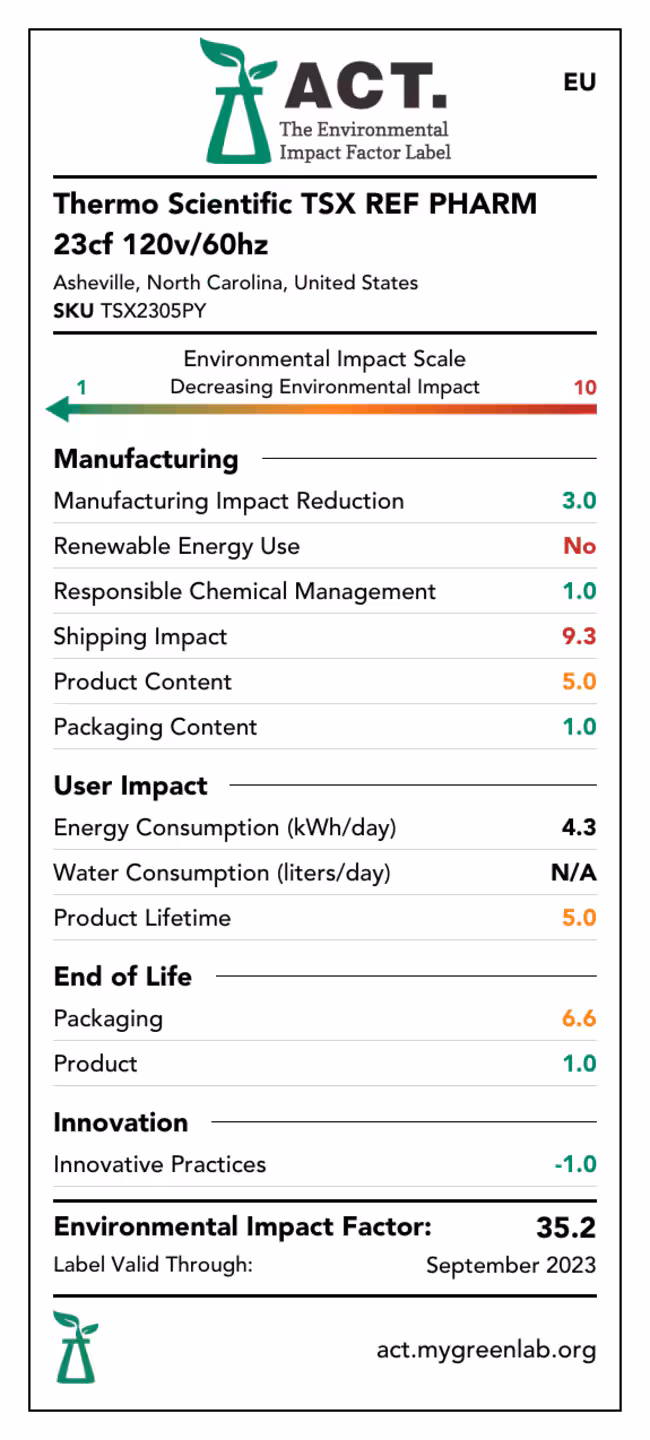

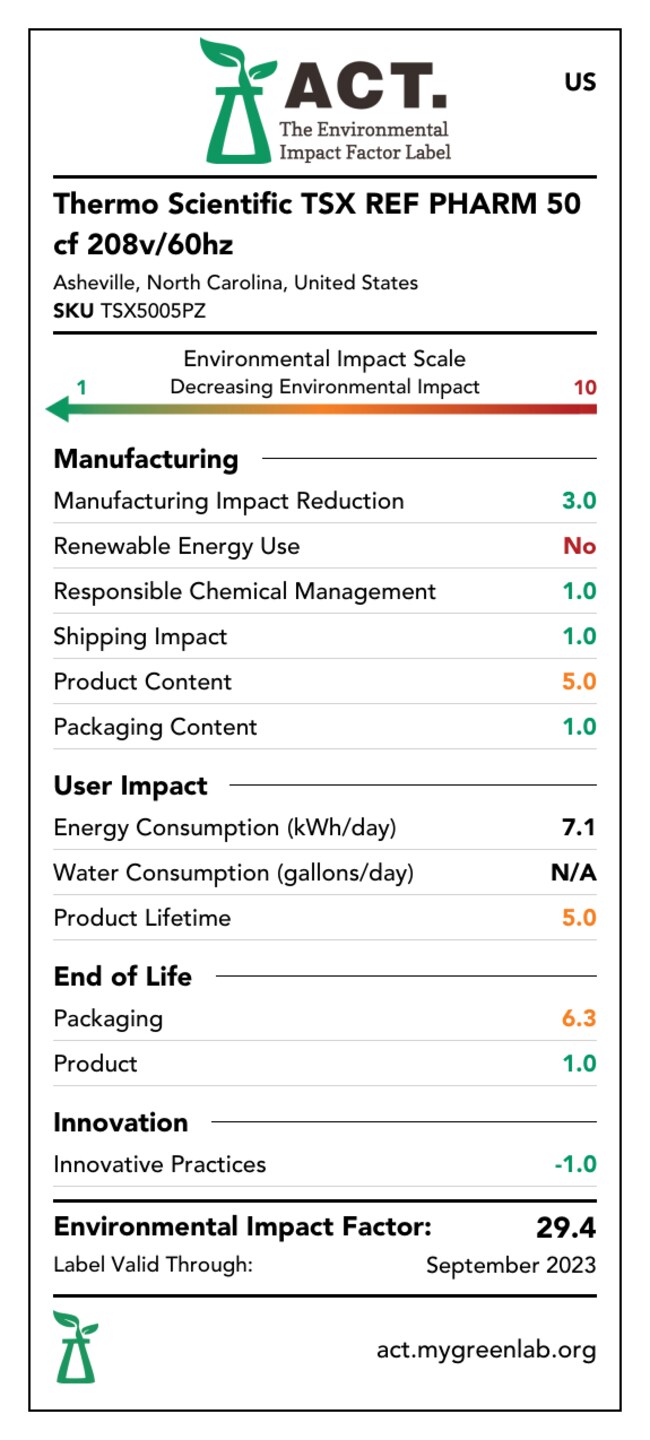

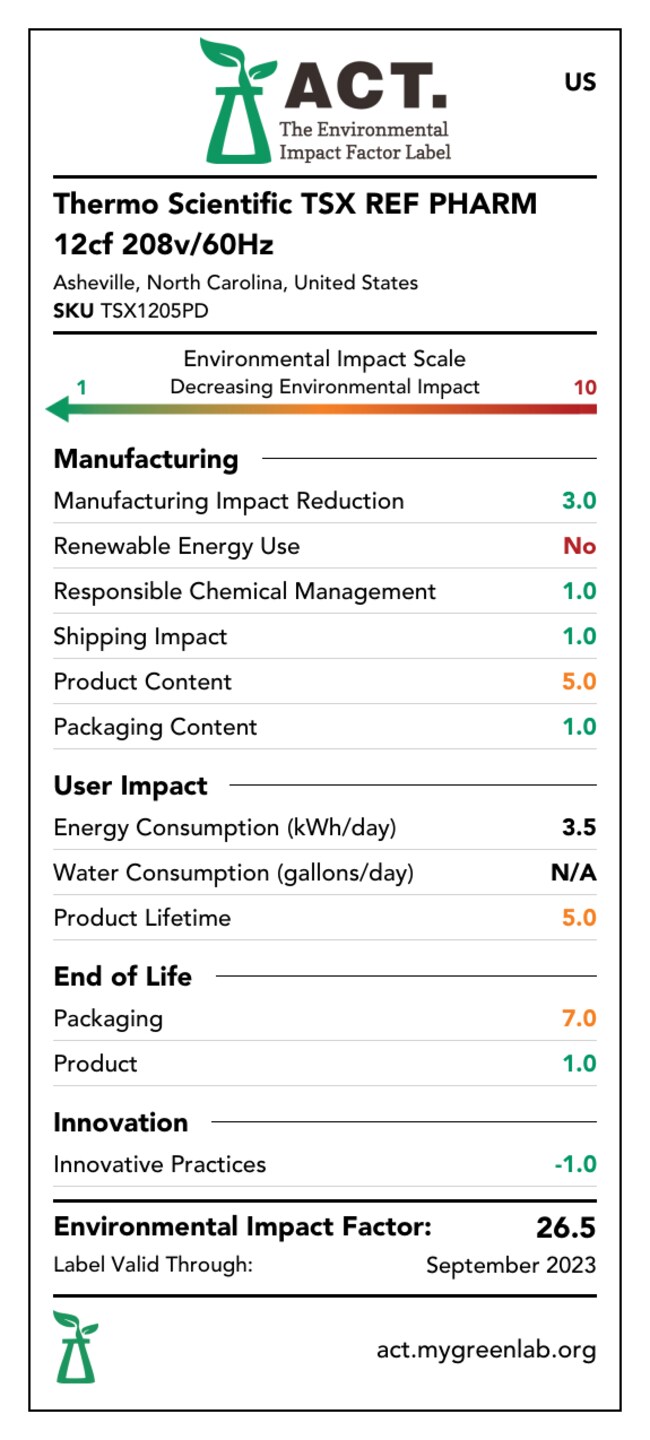

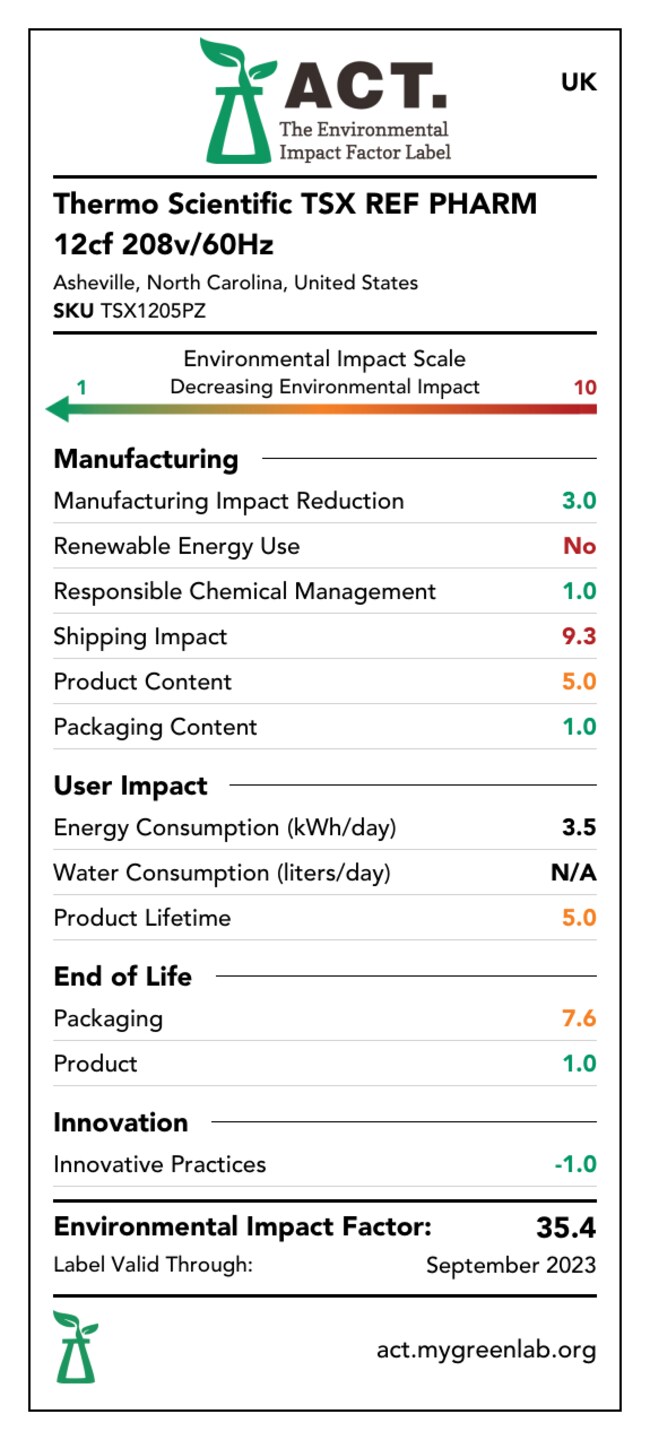

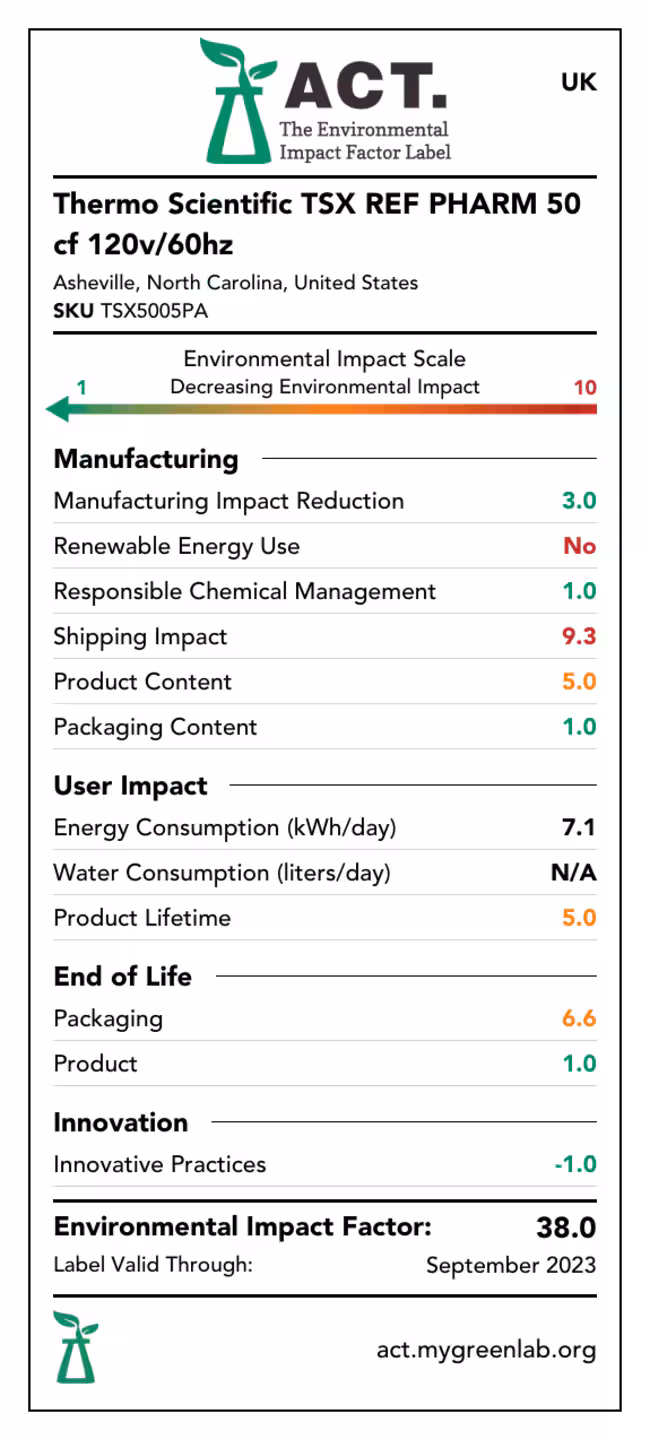

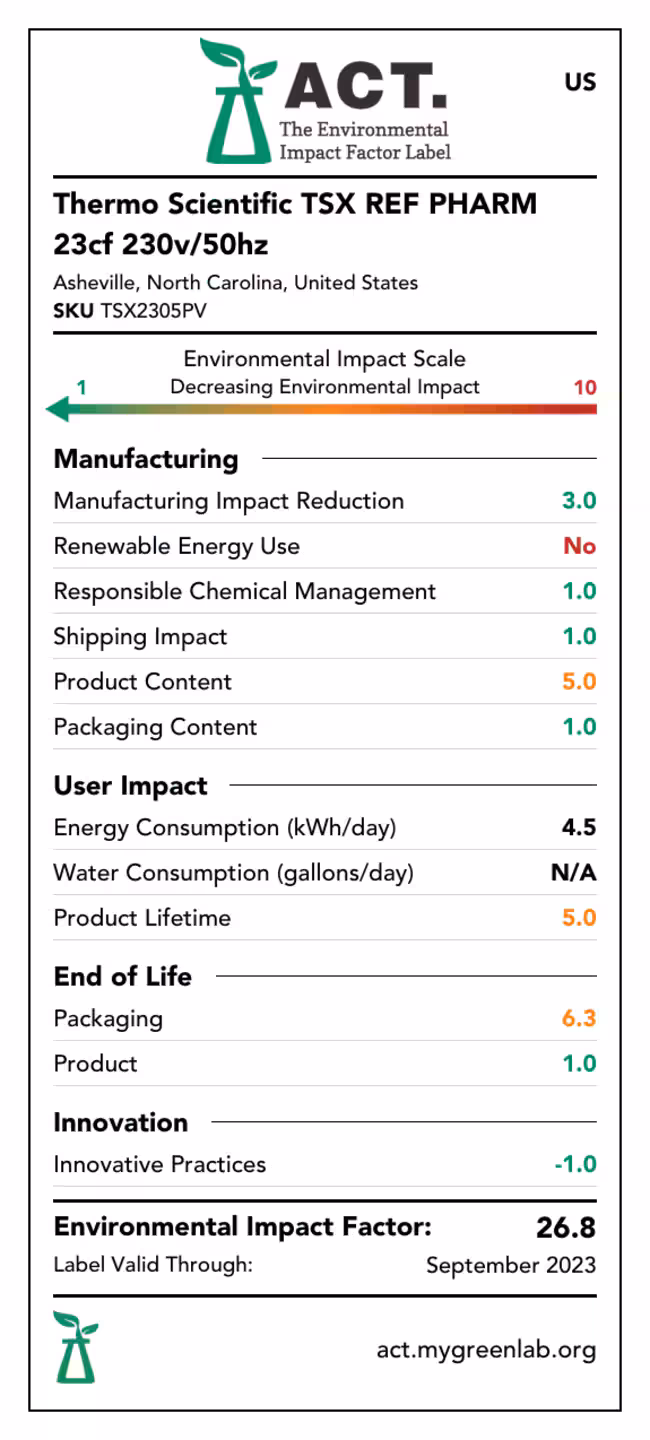

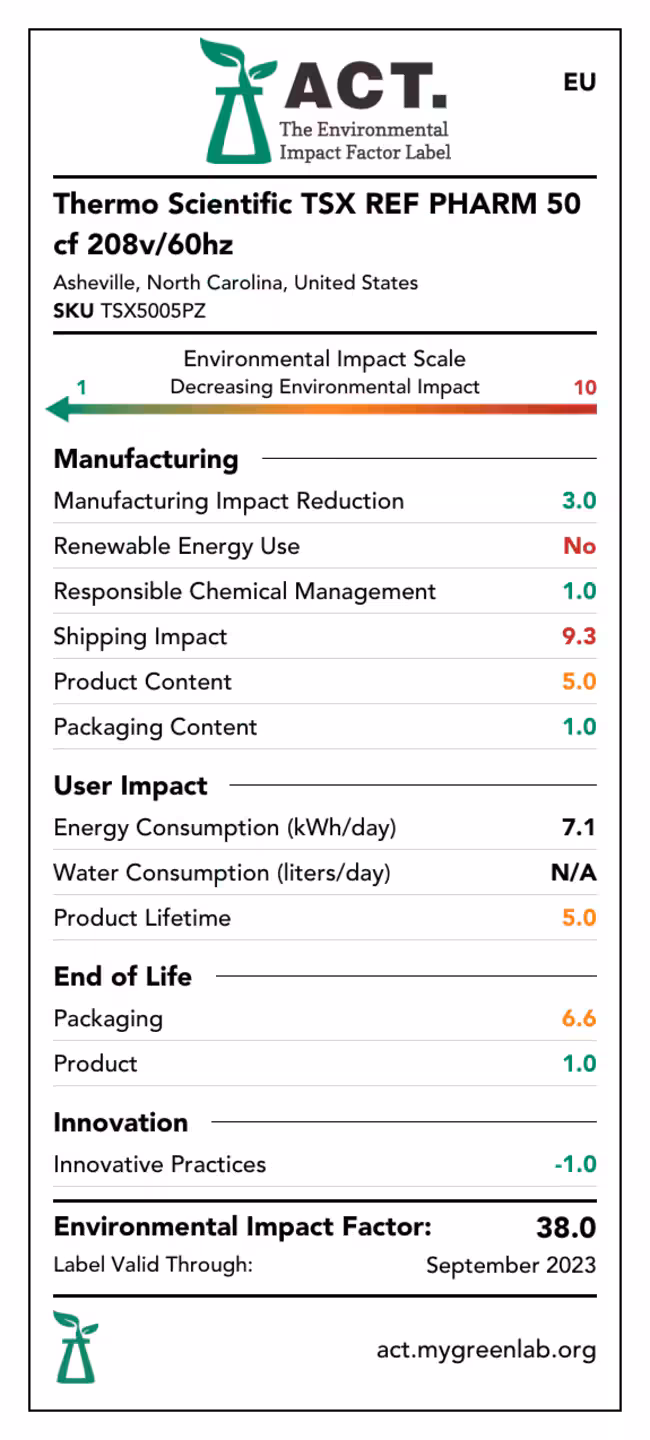

ACT Environmental Impact Factor Label Certified, providing third-party verification of the sustainable impacts of the product, its operations, and its end of life.
Natural, R290 refrigerants and water-blown foam make the TSX Series compliant with EU F-GAS regulations, U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP), and other Global Environmental Regulations.
Manufactured in an award-winning, zero-waste to landfill facility

Ready for connectivity and monitoring

Thermo Scientific™ DeviceLink™ Connect ready, enabling you to have a connected experience with your unit so you always—and anywhere— know the safety of your samples and the performance of your refrigerator or freezer.
Compatible with wireless monitoring systems and remote alarm contacts including our Thermo Scientific™ Smart-Vue™ Pro wireless monitoring systems

Make it your own

Alternate door swing configuration and door types
Extra and alternate wire baskets, shelves, and drawers
Free-standing or factory-installed chart recorders
Stainless steel interior finish
E-Lock adapter kits
4-20 milliamp transmitters and other remote alarm modules
Specialty, regional, and country specific plugs

Services and support

Industry Leading 120-month compressor warranty (varies by country, please contact us for details)
Included Certificate of Calibration to an NIST (National Institute of Standards and Technology, formerly National Bureau of Standards) traceable instrument includes a model number and serial number certificate
Optional Validation Testing Programs include in house and field-based temperature mapping and Installation Qualification (IQ) and Operation Qualification (OQ) programs
Optional Factory Acceptance Test results including QC Test Log Sheets and QC Temperature Graphs

Order Codes

Code	Description

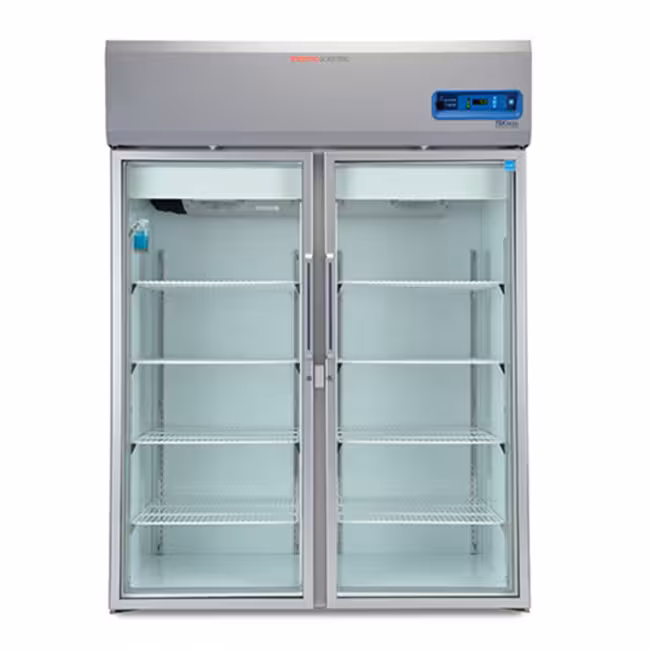

TSX5005PV	Catalog Number: TSX5005PV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Dimensions (D x W x H) Interior: 28.5 x 52.5 x 58 in. (72.4 x 133.4 x 147.3 cm) Door Style: Double Glass

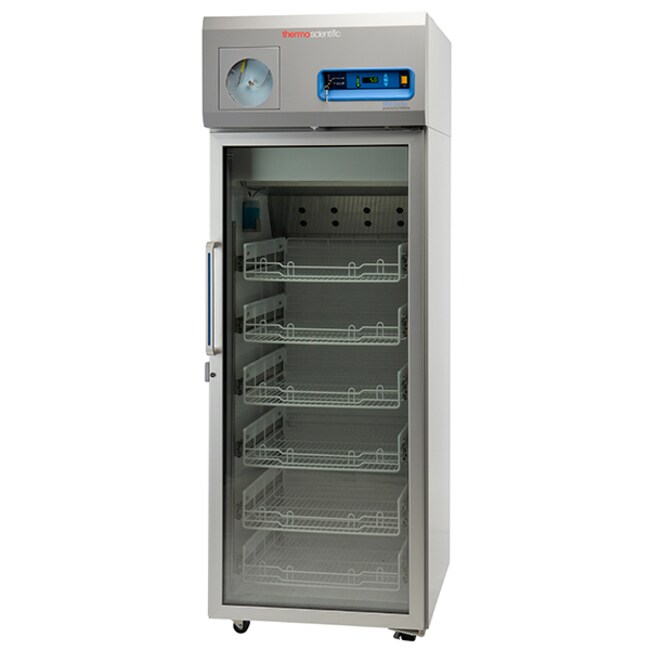

TSX2305PA	Catalog Number: TSX2305PA Unit Size: Each Plug Type: NEMA 5-15 Electrical Requirements: 115V, 60Hz Dimensions (D x W x H) Interior: 28.5 x 24 x 58 in. (72.3 x 61 x 147.3 cm) Door Style: Glass
TSX5005PA	Catalog Number: TSX5005PA Unit Size: Each Plug Type: NEMA 5-15 Electrical Requirements: 115V, 60Hz Dimensions (D x W x H) Interior: 28.5 x 52.5 x 58 in. (72.4 x 133.4 x 147.3 cm) Door Style: Double Glass
TSX5005PD	Catalog Number: TSX5005PD Unit Size: Each Plug Type: NEMA 6-15 Electrical Requirements: 208-230V, 60Hz Dimensions (D x W x H) Interior: 28.5 x 52.5 x 58 in. (72.4 x 133.4 x 147.3 cm) Door Style: Double Glass
TSX1205PV	Catalog Number: TSX1205PV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Dimensions (D x W x H) Interior: 21.8 x 20.0 x 52.4 in. (55.4 x 50.8 x 133.1 cm) Door Style: Glass
TSX3005PV	Catalog Number: TSX3005PV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Dimensions (D x W x H) Interior: 28.5 x 30.0 x 58.0 in. ( 72.3 x 76.2 x 147.3 cm) Door Style: Glass
TSX2305PD	Catalog Number: TSX2305PD Unit Size: Each Plug Type: NEMA 6-15 Electrical Requirements: 208-230V, 60Hz Dimensions (D x W x H) Interior: 28.5 x 24 x 58 in. (72.3 x 61 x 147.3 cm) Door Style: Glass
TSX2305PV	Catalog Number: TSX2305PV Unit Size: Each Plug Type: CEE 7/7 Electrical Requirements: 208-230V, 50Hz Dimensions (D x W x H) Interior: 28.5 x 24 x 58 in. (72.3 x 61 x 147.3 cm) Door Style: Glass
