Savant™ SpeedVac Universal Vacuum Systems (Thermo Scientific™)

Key Features

Description

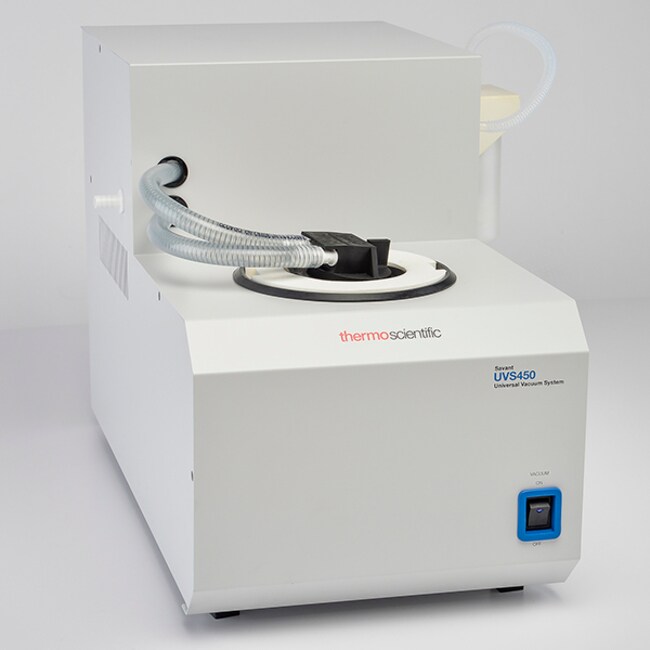

UVS450 and UVS400A

• Small footprint
• Low maintenance, oil-free and corrosion resistant Universal Vacuum System
• Wide mouth glass condensation flask with self-sealing cover
• Single stage refrigeration system
• Efficient operation with all SpeedVac™ concentrators, and other vacuum-dependent equipment
• Optional post trap (model no. ANT100) may be added to neutralize ammonia or acid
• Chemical trap (model no. DTK120R) may be added to absorb volatile radioactivity and residual vapor
• Max. vacuum <10 torr (13.3mbar)
• Oil-free ETFE diaphragm pump
• 36 liters/minute displacement on 60Hz; 30 liters/minute on 50Hz models
• UVS450A also includes VaporNet™ technology. This represents a valve in the vacuum line and a
• control circuit for that valve.  Modulating this valve causes molecules to remain in the cold trap for longer than would be achieved by a constant vacuum.All the standard features in addition to:

UVS850DDA

• Three-stage high efficiency oil free pump
• Max. Vacuum: <0.6 torr
• 36 liters/minute on 60Hz; 20 liters/minute on 50Hz models
• PTFE tubing and vapor path
• Post trap Ammonia Neutralizing Trap (ANT100) included
• Includes the VaporNet™ technology. This represents a valve in the vacuum line and a control circuit for that valve.   Modulating this valve causes molecules to remain in the cold trap for longer than would be achieved by a constant vacuum.Thermo Scientific™ CryoCool™ heat transfer fluid (SCC1). This must be ordered for use with all refrigerated cold traps (RVT) and Universal Vacuum Source (UVS).

Requires:

CryoCool™ heat transfer fluid (SCC1). This must be ordered for use with all refrigerated cold traps (RVT) and Universal Vacuum Source (UVS).
