SpeedVac™ SRF110 Refrigerated Centrifugal Vacuum Concentrator and Rotors (Thermo Scientific™)

SpeedVac™ SRF110 modular refrigerated vacuum concentrator provides flexibility to your lab. It offers unique programming capabilities to maintain chamber temperature pre and post sample run to prevent thermal degradation of heat sensitive samples such as proteins, enzymes, and other biomolecules. They are ideal for evaporation of aqueous based solvents, buffers, and HPLC fractions. For a convenient, one model shopping experience select from SRF110P1 (modular configuration) and SRF110P2 (Semi integrated configuration) kit options. Each kit is designed to include components required for convenient SpeedVac setup.

Key Features

SRF110 modular refrigerated vacuum concentrator provides flexibility to any benchtop space. SRF110 can be configured depending on your applications need. Select from wide range of suitable Thermo Scientific components such as pumps, Vapor Traps, and additional accessories to configure your custom vacuum concentration setup. For a convenient, one model shopping experience select from SRF110P1 (modular configuration) and SRF110P2 (Semi integrated configuration) kit options. Each kit is designed to include components required for convenient SpeedVac setup.

Ideal for evaporation of non-aggressive, aqueous based solvents, buffers, HPLC fractions, etc.
3 Preset program with option to store up to 9 programs
Temperature range -4°C up to 100°C (1°C increment)

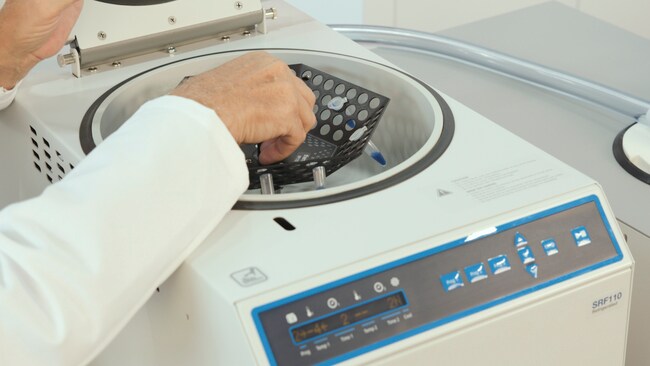

Self aligning and quick release rotor mechanism
Hexagonal rotor (RF132) included with purchase of SRF110
Refer to list of rotors available for purchase and to be used with SRF110 model
Electricals- 115V AC (60Hz, 16Amps) and 230V AC (50Hz, 8Amps)
Certifications- UL Certified, CE, UKCA, KC, RCM Marked.
F Gas Compliance- Yes (EPA-SNAP and EU)

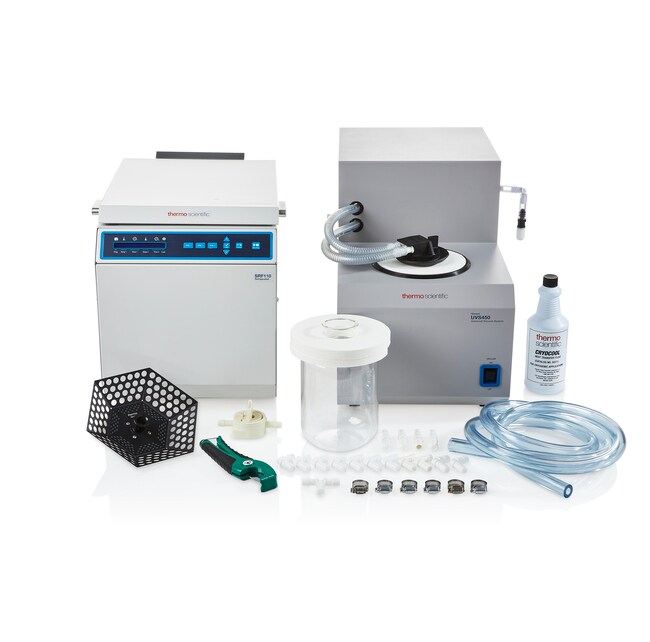

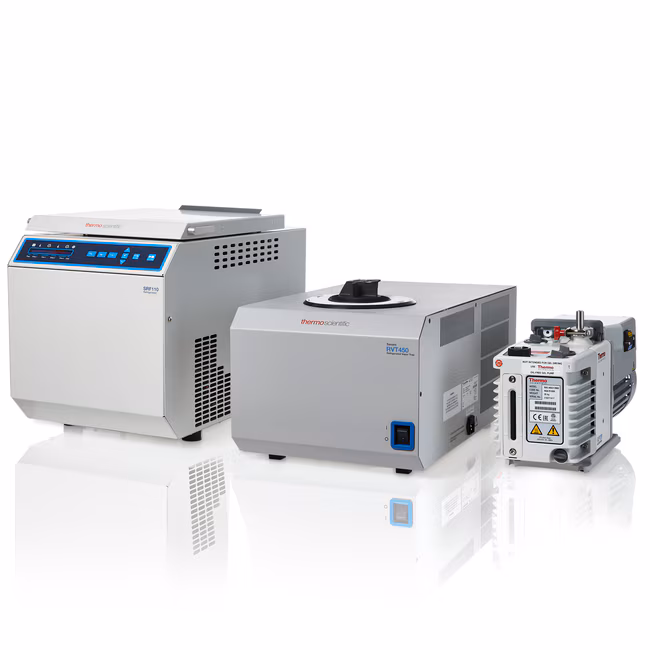

SRF110P1 kit includes Refrigerated SpeedVac (SRF110), Hexagonal rotor (RF132), an Oil pump (VLP120-115), a vapor Trap (RVT450-115), Universal Tubing (UTP-TYG), 4L capacity Glass Condensation Flask (GCF400), Glass Cap (FC400), and 1L Bottle of heat transfer fluid Cryocool™ (SCC1)
SRF110P2 kit includes SRF110P2 Kit includes Refrigerated SpeedVac (SRF110), Hexagonal rotor (RF132), Universal Vacuum System (UVS450), Universal Tubing (UTP-TYG), 4L capacity Glass Condensation Flask (GCF400), Glass Cap (FC400), and 1L Bottle of heat transfer fluid Cryocool™ (SCC1)

Order Codes

Code	Description
SRF110P1-115	Catalog Number: SRF110P1-115 Unit Size: Each Description: Medium capacity refrigerated centrifugal vacuum concentrator kit with oil Pump, refrigerated vapor trap, rotor, accessories, 115 V, 60 Hz, 16 Amps Certifications: UL, EPA-SNAP Fgas Material: Powder coated steel
RF108	Catalog Number: RF108 Unit Size: Each Description: 12-13 mm Rotor, Holds: 40 x 1.5, 2.0 mL; 16 x 3 mL Certifications: None Material: Aluminum
RF132	Catalog Number: RF132 Unit Size: Each Description: Hexagonal Microcentrifuge Rotor; Holds: 132 x 1.5 mL microcentrifuge tube; 132 x 2.0 mL microcentrifuge tube Certifications: None Material: Aluminum
RF32	Catalog Number: RF32 Unit Size: Each Description: 28mm rotor, Holds: 32 x 1.5 mL; 32 x 2 mL Certifications: None Material: Aluminum
RF52	Catalog Number: RF52 Unit Size: Each Description: 12-17 mm rotor; Holds: 52 x 2 mL; 52 x 5 mL; 36 x 5-6mL Certifications: None Material: Aluminum
RFMT4	Catalog Number: RFMT4 Unit Size: Each Description: MicroPlate Rotor; Holds: 4 x standard microplate; 2 deep well plates Certifications: None Material: Aluminum
SRF110-115	Catalog Number: SRF110-115 Unit Size: Each Description: Refrigerated, Medium Capapcity, Modular Centrifugal Vacuum Concentrator, 115 V, 60Hz, 16 Amps Certifications: UL, EPA-SNAP Fgas Material: Powder coated steel
SRF110-230	Catalog Number: SRF110-230 Unit Size: Each Description: Refrigerated, medium capacity, modular centrifugal vacuum concentrator, 230 V, 50 Hz, 8 Amps Certifications: CE, UKCA, KC, RCM Material: Powder coated steel
SRF110P1-230	Catalog Number: SRF110P1-230 Unit Size: Each Description: Medium capacity refrigerated centrifugal vacuum concentrator kit with oil pump, refrigerated vapor trap, rotor, accessories, 230 V, 50 Hz, 8 Amps Certifications: CE, UKCA, KC, RCM Material: Powder coated steel
SRF110P2-115	Catalog Number: SRF110P2-115 Unit Size: Each Description: Medium capacity refrigerated centrifugal vacuum concentrator kit with universal vacuum system, rotor, accessories, 115 V, 60 Hz, 16 Amps Certifications: UL, EPA-SNAP Fgas Material: Powder coated steel
SRF110P2-230	Catalog Number: SRF110P2-230 Unit Size: Each Description: Medium capacity refrigerated centrifugal vacuum concentrator kit with universal vacuum system, rotor, accessories, 230 V, 50 Hz, 8 Amps Certifications: CE, UKCA, KC, RCM Material: Powder coated steel
