HAAKE™ RheoWin™ Measuring and Evaluation Software (Thermo Scientific™)

Easily navigate your rheometer or viscometer operation using the Thermo Scientific™ HAAKE™ RheoWin™ Measuring and Evaluation Software. This user-friendly software for rheometers and viscometers can be customized to offer convenient rheometer or viscometer operation with default settings for beginners and full access to all relevant measuring parameters for advanced rheologists.

Key Features

The HAAKE RheoWin Measuring and Evaluation Software Features

Customizable Software

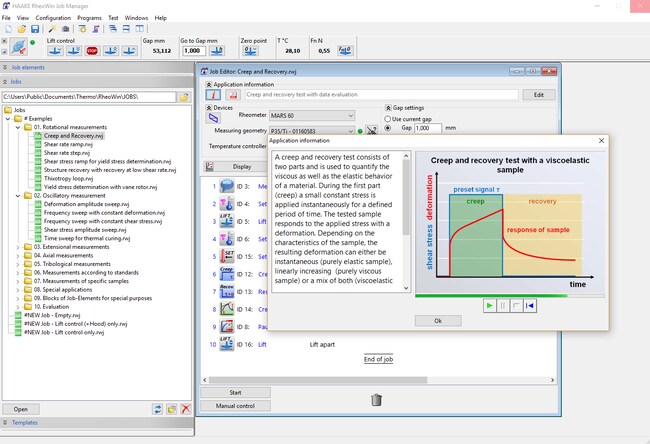

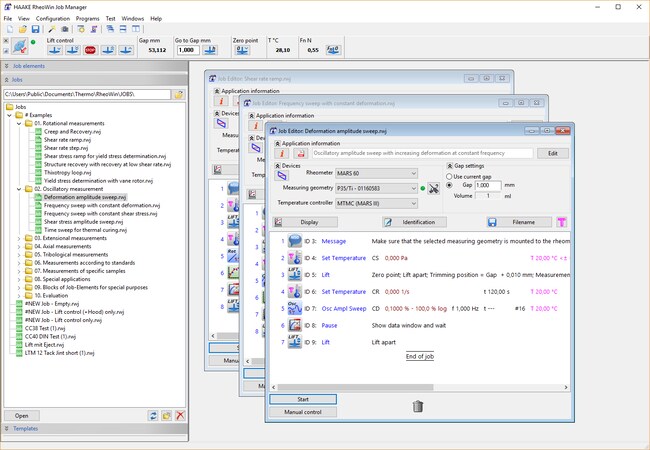

RheoWin JobManager for fully automated process control ('jobs') of measuring and analysis routines and report printout or export

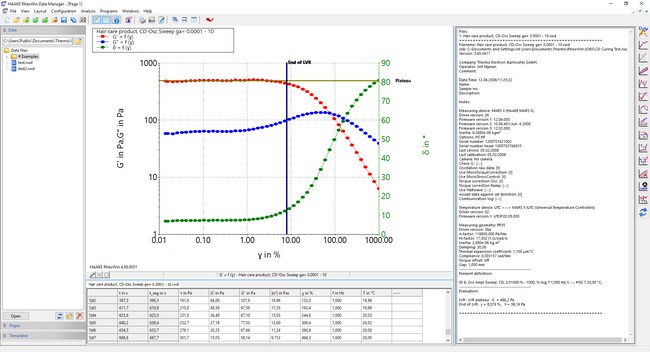

RheoWin DataManager for interactive evaluation of measured data, as well as sophisticated tools for creating reports and generating templates for graphs, tables and screen views
RheoWin UserManager for comprehensive management of user access control and assignment of specific access rights

Functionality

Manual control for preliminary testing, selected parameters display and saving manually-acquired data
Convenient creation and customization of measuring routines using predefined measuring and evaluation elements via 'drag and drop' techniques
Fully automated measuring, data evaluation and documentation within one measuring routine
Simultaneous measurements using several instruments and data evaluation
Freely configurable data export (e.g., ASCII, MS-Excel, XML, etc.)
Ability to save graphs in various formats

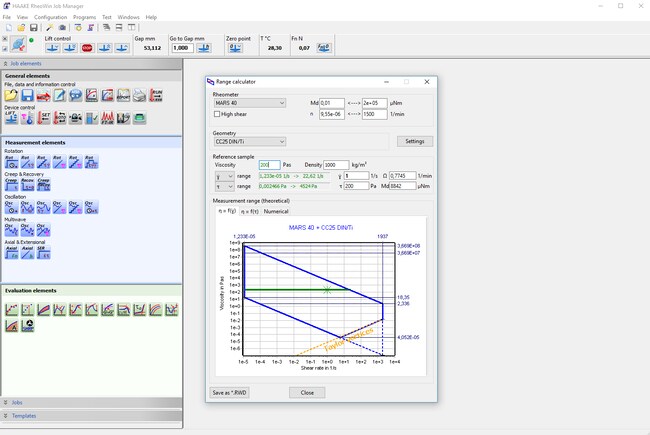

Numerous algorithms for data analysis (e.g., interpolation, regression and automated quality control)
Ability to save raw data and numerical values for quality control purposes

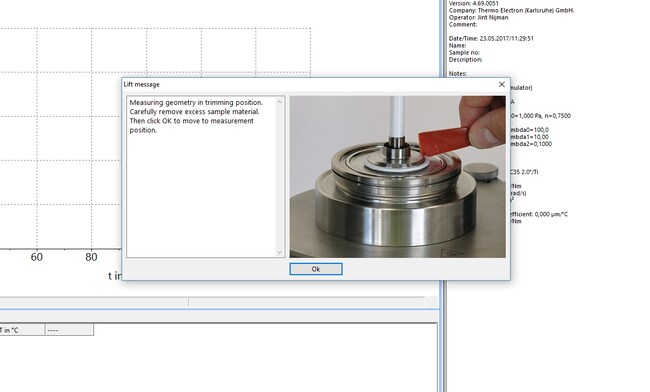

Integrated image capture with USB and firewire camera

Customization

User-defined configuration of paths and subdirectories for data filing
Modular generation of a file name and automated saving in a predefined subdirectory
Data transfer to ERP and laboratory systems (e.g., SAP™, LIMS, etc.)
Online display of all corrections to improve data quality
Snapshot for quick characterization of an unknown sample

Order Codes

Code	Description
098-5062	Catalog Number: 098-5062 Unit Size: Each Description: HAAKE RheoWin 4 Software for HAAKE Viscotester iQ
098-5075	Catalog Number: 098-5075 Unit Size: Each Description: HAAKE RheoWin 4 Software for HAAKE Viscotester iQ Air
098-5080	Catalog Number: 098-5080 Unit Size: Each Description: HAAKE RheoWin 4 Software for HAAKE MARS iQ Rheometer
098-5077	Catalog Number: 098-5077 Unit Size: Each Description: HAAKE RheoWin 4 Software for HAAKE MARS iQ Air Rheometer
098-5072	Catalog Number: 098-5072 Unit Size: Each Description: HAAKE RheoWin 4 Software for HAAKE MARS 40 Rheometer
098-5071	Catalog Number: 098-5071 Unit Size: Each Description: HAAKE RheoWin 4 Software for HAAKE MARS 60 Rheometer
098-5566	Catalog Number: 098-5566 Unit Size: Each Description: HAAKE RheoWin Software module for Asphalt / Bitumen
098-5045	Catalog Number: 098-5045 Unit Size: Each Description: HAAKE RheoWin Software module Time Temperature Superposition (TTS)
098-5044	Catalog Number: 098-5044 Unit Size: Each Description: HAAKE RheoWin Software module 21 CFR part 11 tool for HAAKE MARS Rheometers
098-5057	Catalog Number: 098-5057 Unit Size: Each Description: HAAKE RheoWin Software module for Interfacial Rheology
098-5061	Catalog Number: 098-5061 Unit Size: Each Description: HAAKE RheoWin Software module for FT-IR Spectroscopy
