HAAKE™ Viscotester™ iQ Rheometers (Thermo Scientific™)

Measure and analyze the rheological properties of a wide range of liquid, paste and semi-solid samples with the Thermo Scientific™ HAAKE™ Viscotester™ iQ and Viscotester iQ Air rheometers. The Viscotester iQ rheometer is an intuitive solution designed to meet the daily rheological requirements of QC labs. The Viscotester iQ Air rheometer is the smallest commercially available oscillation air bearing rheometer in the world. Both set new standards in modularity, ease of use, increased efficiency, and intelligent user guidance, from simple viscosity determinations to complex rheological investigations.

HAAKE Viscotester iQ Rheometers are the replacement for the following discontinued viscometers:

Thermo Scientific HAAKE Viscotester 550 Rotational Viscometer
Thermo Scientific HAAKE Viscotester E, D, C Rotational Viscometer (selected applications only)

Key Features

The development of the next generation Viscotester was driven by the demands of new rheological tasks in quality control. With the HAAKE Viscotester iQ rheometer, we combine decades of experience in rheology with solutions designed for highly dynamic working environments. Our goal is to enable fast, reliable and precise rheological measurements with maximum ease of operation. Now with the HAAKE Viscotester iQ Air rheometer, we bring you the smallest available oscillation air bearing rheometer. Either rheometer can be used as a standalone portable unit or as a fully software-controlled part of your QC lab.

Ideal for Industrial QC in:

Food
Cosmetics & Pharmaceuticals
Mining & Construction
Petrochemicals
Polymers

Individual

Meeting your demands in QC
Easy exchange between different measuring configurations for fast setup and operation
Comprehensive portfolio of measuring geometries and accessories to tailor your instrument
Highly dynamic, powerful EC motor for flexibility across a range of materials and measurements
Exchangeable self-sufficient Peltier or liquid controlled temperature modules for maximum flexibility
Optional oscillation mode
Multiple means of operation: Standalone, with new HAAKE Viscotester iQ RheoApp, or fully software controlled to match your level of usability

Intuitive

Making QC more convenient for your laboratory
Breakthrough concept self-explaining in setup and handling for error-proof operation
Smart lift function for convenient, accurate and reproducible gap setting

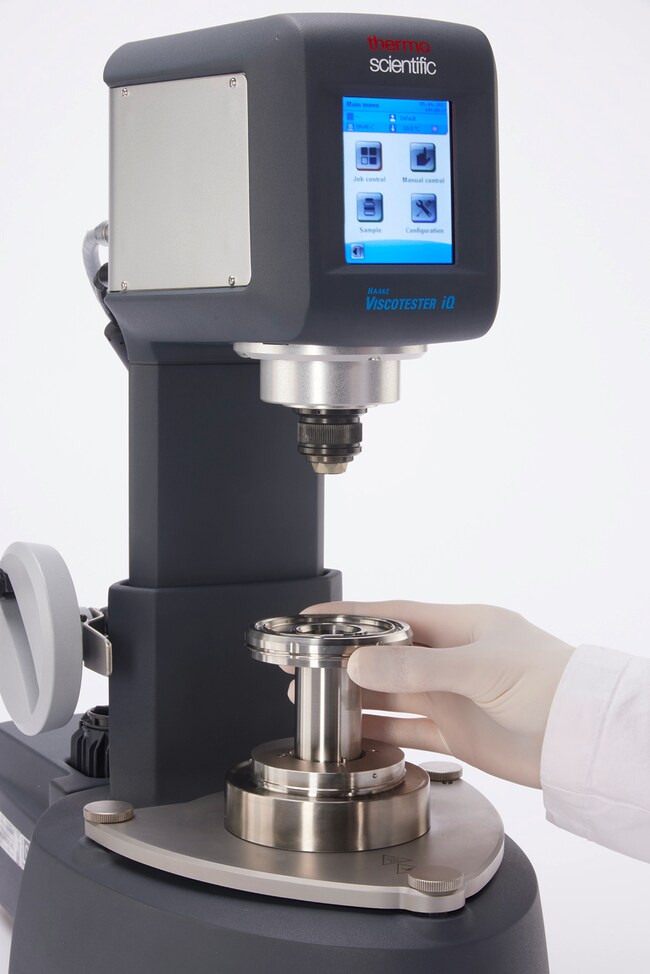

Measuring geometries designed for optimized handling and easy exchange
Correct and precise sample filling for parallel plates for ultimate measuring accuracy

Intelligent

Guiding your operators through every measurement challenge
Convenient touch screen display for visualization of numerical and graphical measurement results
Intelligent user guidance for measuring and evaluation procedures, selection of suitable jobs with indication of available measuring range

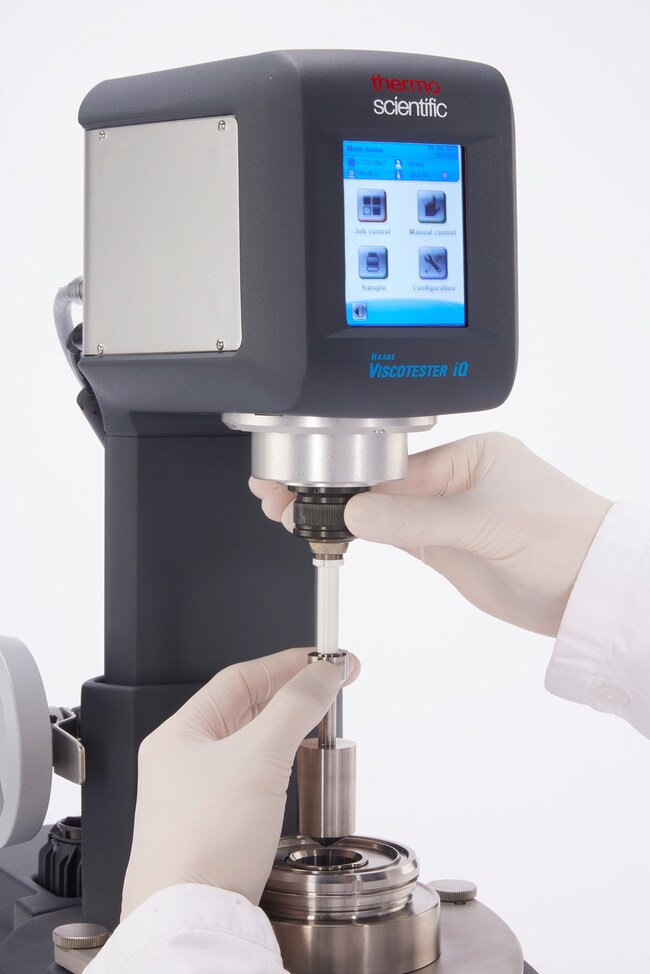

“Connect Assist” quick coupling of measuring geometries and temperature modules with perfect alignment, automatic recognition and feedback for measuring optimization
“Temperature Assist” rapid real sample temperature control based on a dynamic heat transfer model

Order Codes

Code	Description
262-0001TS	Catalog Number: 262-0001TS Unit Size: Each Description: HAAKE Viscotester iQ rheometer (ball bearing) Measuring Geometries: Coaxial cylinders, double-gap cylinders, parallel plates, cones, vane rotors
262-0100	Catalog Number: 262-0100 Unit Size: Each Description: HAAKE Viscotester iQ Air rheometer (air bearing) Measuring Geometries: Coaxial cylinders, double-gap cylinders, parallel plates, cones, vane rotors
262-0006	Catalog Number: 262-0006 Unit Size: Each Description: HAAKE Viscotester iQ ready to use package for liquids Measuring Geometries: Coaxial cylinders
262-0020	Catalog Number: 262-0020 Unit Size: Each Description: HAAKE Viscotester iQ ready to use package for liquids Measuring Geometries: Universal container holder for original containers; vane rotor FL 22
262-0010	Catalog Number: 262-0010 Unit Size: Each Description: HAAKE Viscotester iQ ready to use package for liquids Measuring Geometries: Coaxial cylinder and rotor CC 25 DIN, measuring plate insert, plate and rotor 35 and gap setting tool
