Temperature Control Modules for the HAAKE™ MARS Rheometer (Thermo Scientific™)

A sophisticated portfolio of temperature modules is available for Thermo Scientific™ rheometers - covering a broad temperature range. Depending on the application, electrical and liquid controlled temperature modules or Peltier are available. In addition, a controlled temperature test chamber for the high end rheometer platform Thermo Scientific™ HAAKE™ MARS Rheometer is offered.

Key Features

Benefits of the temperature modules at a glance:

Plug-and-play modules with new compact design
Automatic temperature module recognition
Easy installation in seconds without tools or adjustment
Standardized connections including quick connects for cooling media and electronics for all modules
Very low thermal mass for fast control response time
Integrated base so that the dismounted unit can be parked on the lab bench, for example

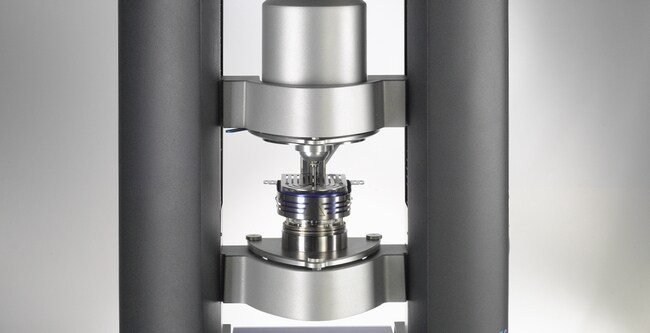

Peltier Plate

For fast temperature changes up to 60 K / min; temperature range: -60°C up to 200°C
- Easy exchange of lower plates due to new quick bayonet mounting ring
- Fast heat transfer and very good temperature homogeneity due to low thermal masses

Electrical Plate

For measurements in a wide temperature range: -40°C† up to 400°C
- Easy exchange of lower plates due to new quick bayonet mounting ring
- In combination with the TM-EL-H active cone heater system a closed chamber with a 360° viewing window is created

Liquid Plate

For very precise, constant temperature control; temperature range: -40°C† up to 200°C†
- Easy exchange of lower plates due to new quick bajonet mounting ring
- Most reasonably priced unit when using an existing circulator

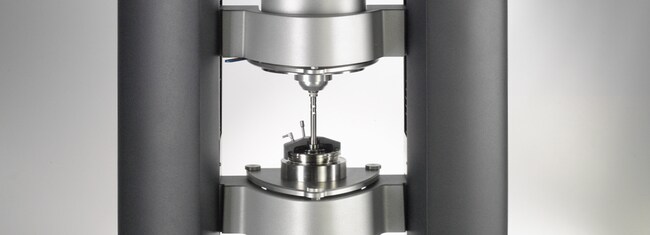

Peltier Cylinder

For fast temperature changes up to 60 K / min; temperature range: -40°† up to 200°C
- Easy exchange of cups due to new, quick bayonet mounting ring
- Smaller cups and rotors optimized for fast temperature changes
- Can also be used for cone and plate geometries by means of a lower plate adapter
- Switching between a cylinder geometry and a plate or cone geometry is a matter of seconds

Electrical Cylinder

For very fast temperature changes; temperature range: -20°† up to 200°C (300°C using suitable geometries, e.g. for pressure cell)
- For cylinder geometries or application-focused measuring cells such as pressure cells
- Powerful, with two heating circuits

Liquid Cylinder

For very precise, constant temperature control; temperature range: -20°C† up to 180° C†
- Larger cups and rotors for low viscosity measurements
- Most reasonably priced unit when using an existing circulator

†Depending on the cooling medium and circulator

Order Codes

Code	Description
222-2384	Catalog Number: 222-2384 Unit Size: Each Description: Holder for guide bar for HAAKE MARS iQ Rheometers
222-1861	Catalog Number: 222-1861 Unit Size: Each Description: Peltier temperature module TM-PE-P for cones and plates for HAAKE MARS and HAAKE MARS iQ Rheometers
222-1955	Catalog Number: 222-1955 Unit Size: Each Description: Peltier temperature module TM-PE-C for cylinders for HAAKE MARS and HAAKE MARS iQ Rheometers
222-1860	Catalog Number: 222-1860 Unit Size: Each Description: Electrical temperature module TM-EL-P for cones and plates for HAAKE MARS and HAAKE MARS iQ Rheometers
222-1857	Catalog Number: 222-1857 Unit Size: Each Description: Electrical temperature module TM-EL-C for cylinders for HAAKE MARS and HAAKE MARS iQ Rheometers
222-1909	Catalog Number: 222-1909 Unit Size: Each Description: Liquid temperature controlled module TM-LI-P for cones and plates for HAAKE MARS and HAAKE MARS iQ Rheometers
222-2172	Catalog Number: 222-2172 Unit Size: Each Description: Electrical temperature module TM-EL-H for HAAKE MARS Rheometers
222-2255	Catalog Number: 222-2255 Unit Size: Each Description: Liquid temperature module TM-LI-C48 for HAAKE MARS and HAAKE MARS iQ Rheometers
222-1902	Catalog Number: 222-1902 Unit Size: Each Description: Holder guide bar for HAAKE MARS Rheometers
222-1958	Catalog Number: 222-1958 Unit Size: Each Description: Peltier temperature module TM-PE-P for cones and plates for HAAKE RheoStress series
222-1959	Catalog Number: 222-1959 Unit Size: Each Description: Electrical temperature module TM-EL-P for cones and plates for HAAKE RheoStress series
222-1961	Catalog Number: 222-1961 Unit Size: Each Description: Liquid temperature controlled module TM-LI-P for cones and plates for HAAKE RheoStress series
222-1991	Catalog Number: 222-1991 Unit Size: Each Description: UTMC UTMC box for Peltier and electrical temperature modules TM-XX-Y for HAAKE RheoStress series and HAAKE MARS II
222-2181	Catalog Number: 222-2181 Unit Size: Each Description: Insulated sample hood TM-IN-H for HAAKE MARS Rheometers
222-2339	Catalog Number: 222-2339 Unit Size: Each Description: Heat exchanger for Peltier temperature control unit TCP/P
222-2351	Catalog Number: 222-2351 Unit Size: Each Description: Insulated sample hood TM-IN-H for HAAKE MARS iQ Rheometers
222-2353	Catalog Number: 222-2353 Unit Size: Each Description: Electrical temperature module TM-EL-H for HAAKE MARS iQ Rheometers
