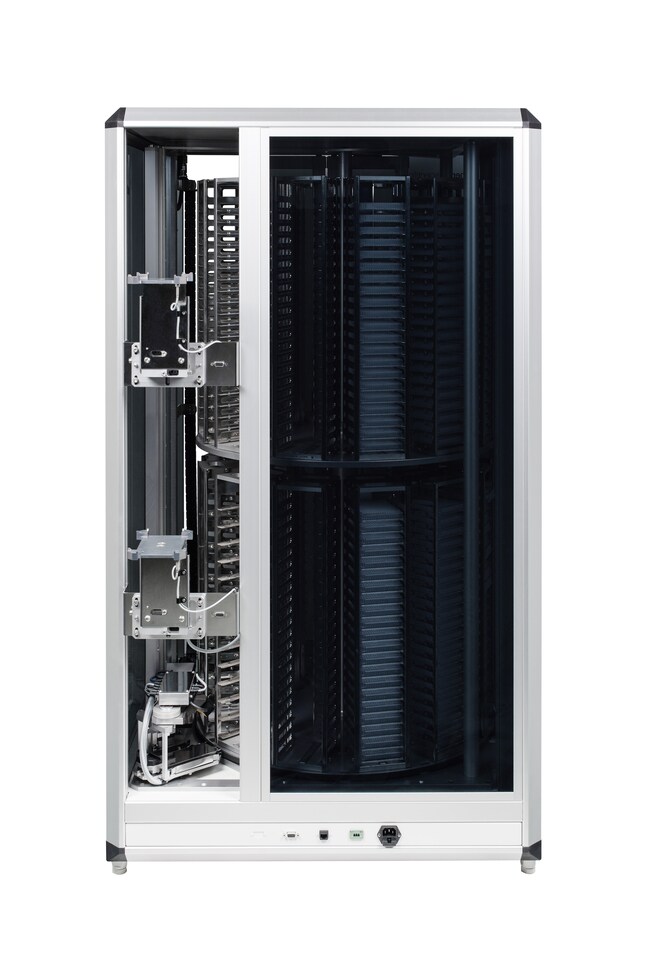

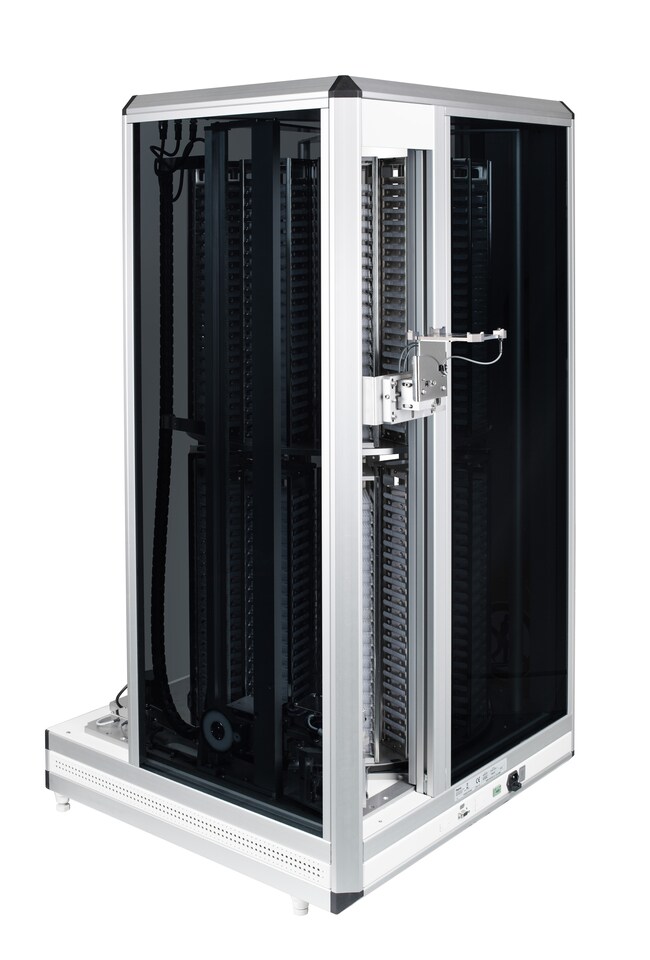

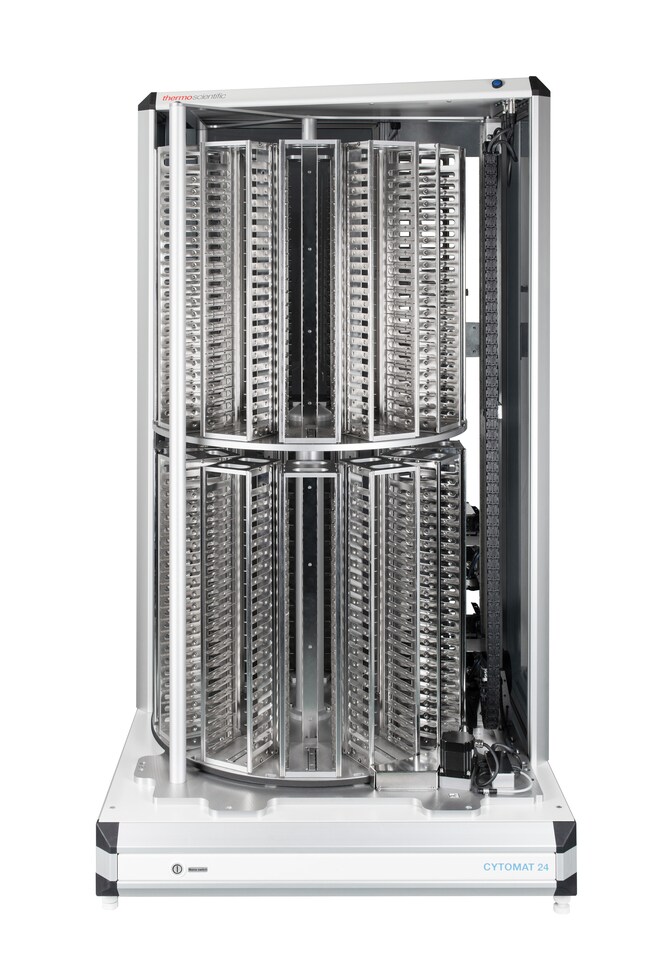

Integrate the Thermo Scientific™ Cytomat™ 24 random access ambient storage hotel into any automated laboratory system for increased throughput and dependable sample protection. This large capacity storage hotel can accommodate 504 shallow well plates, while the integrated plate shuttle system (PSS) can handle all SBS standard microplate formats, including deep-well plates and tip boxes.
The Cytomat 24 Hotel reduces mean plate access time to 15 seconds, enabling greater productivity in less time. It is available in a standard housing or protective housing configuration, and it provides the highest integration flexibility with multiple gate access and dual transfer positions on one axis.
Match Your Capacity with Our 24 Stacker Automated Incubator
- 672 pcs. 1536-well plates
- 504 pcs. 96-well or 384-well plates
- 360 pcs. transwell or insert plates
- 240 pcs. deep-well
- 168 pcs. tip-boxes
Further stacker types available on request.
Possible to mix and match different pitch stackers.
Access Time
- Mean access time is 15 seconds; max. 20 seconds
Flexible Stacker Design
- Compatible with existing Cytomat stackers
- Standard or customized stacker pitch sizes
- Mix and match different pitch stackers
- Autoclavable, stainless steel
- Allows for accurate temperature distribution with ventilation slots
Convenient
- Internal and direct barcode reader can scan barcodes at any plate position inside the hotel, thereby minimizing plate movement and providing superior sample and plate tracking (optional)
- P3-sensor for in-stacker plate detection
Easy to Integrate
- Various transfer locations
- Dual transfer stations on one axis
- Intuitive software commands
CE Certifications
- RoHS III
- Manufactured in an ISO 9001 and ISO 13485 accredited facility
| Code | Description |
|---|---|
| 51034477 | Catalog Number: 51034477 Unit Size: Each Includes: P3 sensor for plate detection w/o barcodes, Rotation table; Protective housing (acryllic) |
| 51034476 | Catalog Number: 51034476 Unit Size: Each Includes: P3 sensor for plate detection w/o barcodes, Rotation table |
