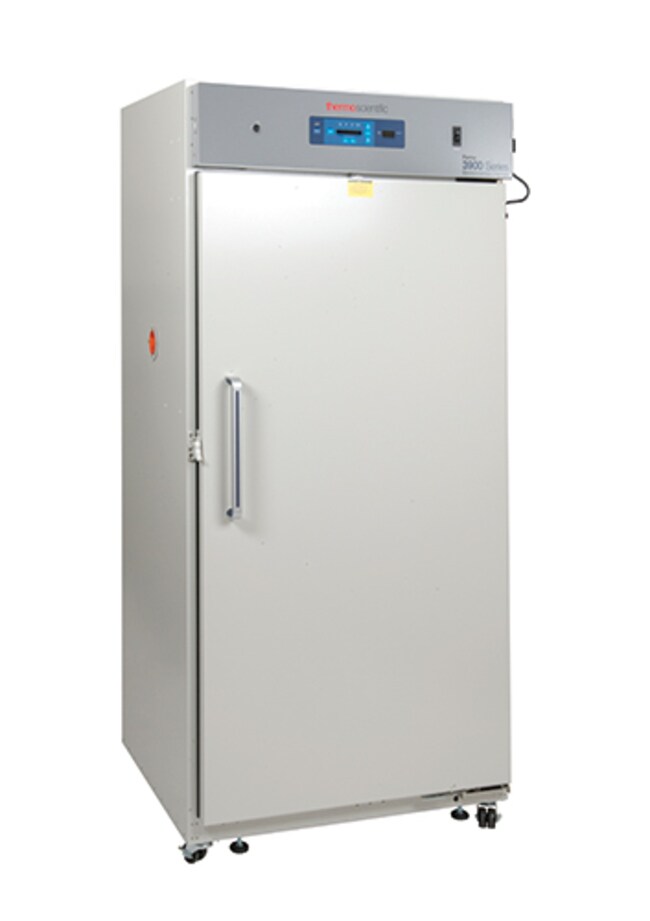

Forma™ 3960 Series Environmental Chamber, 821.2 L, Stainless Steel (Thermo Scientific™)

Key Features

Features:

• True laminar airflow through side plenums for extremely tight temperature uniformity
• Sophisticated microprocessor controls for constant display of temperature
• Alphanumeric message center for ease of setup and programming
• Access ports, locking casters and alarm contacts
• Capacity: 29 cu. ft. (821.2L) for high volumes and a broad range of products
• Operating temperature range: 5°C above ambient to 60°C (140°F)

Airflow System:

• Directed airflow system promotes an ideal growth environment.
• Positive pressure feed plenum and negative pressure return plenum direct air across surface of each solid shelf.
• Feed plenum cannot be blocked by chamber contents.

Intuitive, Powerful Enviro-Scan™ Control:

• Unit offers precise control without complicated programming.
• Operating modes include Run, Setpoint, Calibration and System Configuration.
• Easy-to-read display offers convenient, continuous monitoring.
• Audible/visual under- and over-temperature alarms offer peace of mind.
• Data outputs allow connection to in-house monitor/alarm system to track chamber conditions.

Durable Construction:

• Exterior cabinet: 18-gauge. cold-rolled steel, powder coated for durability; resists scratches and chipping.

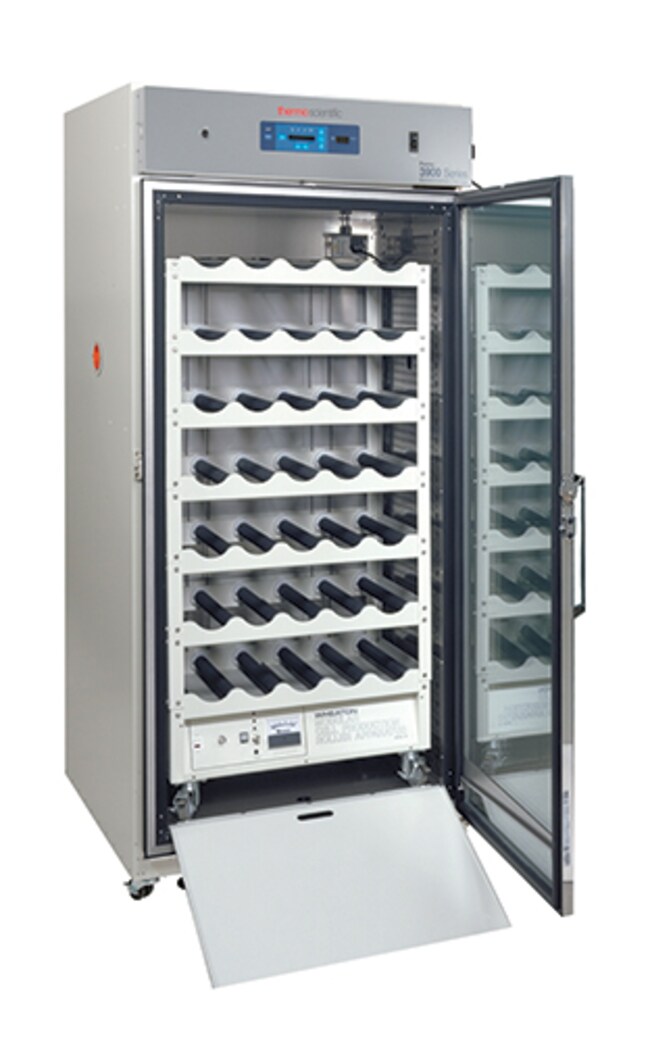

• Heated glass door for minimal condensation and a clear view
• 2″ (5.1cm) thick fiberglass cabinet insulation for maximum product thermal protection
• Solid, stainless-steel interior for long life and minimized equipment costs
• Five heavy-duty, solid stainless-steel shelves, adjustable on 2″ (5.1cm) centers
• Swivel locking casters for easy mobility
• Leveling feet provide stability and added safety
• Thru-wall access ports on right and left chamber sides for probes, sensors, etc.
• Interior GFCI duplex receptacle on 115V Model (single European 230V CEE 7 on 230V Model) for shakers, cell rollers, and other equipment
• Exterior receptacle on upper-right side of control panel for connecting optional recorder or other equipment

Ordering Information:

Reinforced floor/shelf components are available for shakers, cell rollers, or other heavy equipment or product loads inside chamber. Units also available with chart recorders.

Order Codes

Code	Description
3960	Catalog Number: 3960 Unit Size: Each
