Forma™ Series II Water-Jacketed CO2 Incubator, 184L (Thermo Scientific™)

Thermo Scientific™ Forma™ Series II Water-Jacketed CO₂ Incubators provide precise CO₂ control, unsurpassed temperature stability and superior parameter recovery characteristics, with continuous contamination control technology. They provide an environment for the growth of microbiological samples or mammalian cells for research (FDA Class 1), and IVF and other regulated cell therapy applications (FDA Class 2).

Key Features

Water Jacketed Chamber

The 184L (6.5 cu. ft.) high capacity chamber provides outstanding culturing space
Standard right hand door swing, field reversible
Polished stainless steel interior with coved corners is easy-to-clean with removable humidity pan

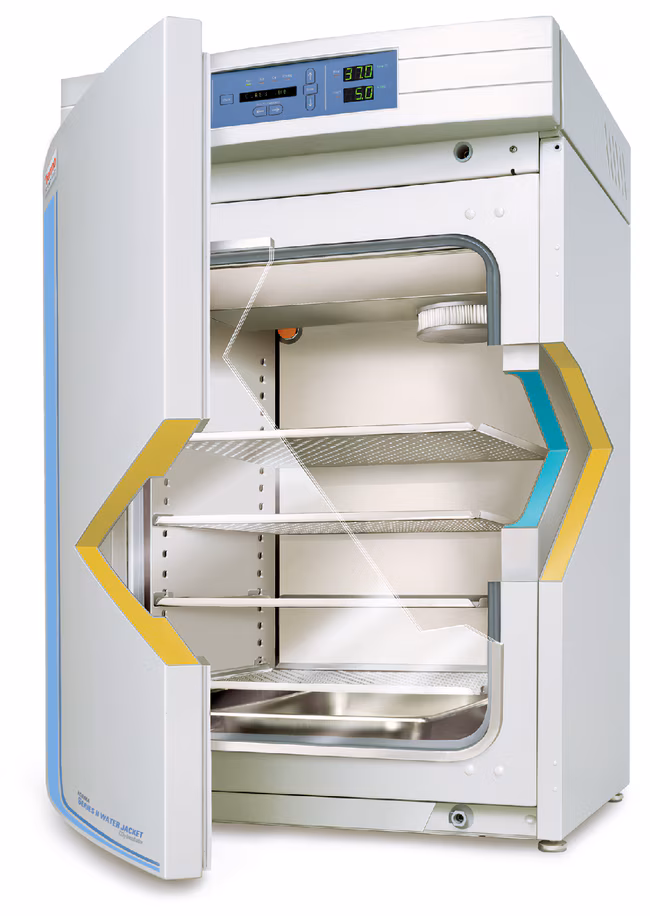

Unique triple wall construction provides outstanding temperature uniformity and stability
Exclusive, heated dual pane inner glass door is designed to minimize condensation
In-chamber fan gently distributes air throughout the chamber which is designed ensure homogeneous conditions
Sturdy stainless steel shelves and supports can be removed without tools for easy cleaning or adjustment

ISO Class 5 HEPA Filtration Airflow System

In-chamber HEPA air filtration continuously filters entire chamber volume every 60 seconds
Reaches ISO Class 5 (Class 100) cleanroom air quality in only 5 minutes after door opening
Continuous protection by minimizing ability for contaminants to settle on interior surfaces

In situ Sensors and Probes Designed for Precise Monitoring

Choice of TC (thermal conductivity) CO₂ sensor for long, reliable operation or IR (infrared) CO₂ sensor for monitoring when humidity and temperature are less predictable
Dual temperature probes with over temperature protection
Optional rH display for monitoring humidity levels to prevent “dry-outs"

Enviro-Scan Microprocessor Control

Easy- to-use, alphanumeric LED display
Flexible, intuitive controls with message center including process and alarm status messages
Configurable audible on/off, access code, tracking low and high alarms

Order Codes

Code	Description
3110	Catalog Number: 3110 Unit Size: Each Electrical Requirements: 115 V, 50/60 Hz CO2 Sensor Technology: TC Sensor Oxygen Control: None Chamber Material: Polished Stainless Steel
3111	Catalog Number: 3111 Unit Size: Each Electrical Requirements: 230 V, 50/60 Hz CO2 Sensor Technology: TC Sensor Oxygen Control: None Chamber Material: Polished Stainless Steel
3130	Catalog Number: 3130 Unit Size: Each Electrical Requirements: 115 V, 50/60 Hz CO2 Sensor Technology: TC Sensor Oxygen Control: 1 to 21% Chamber Material: Polished Stainless Steel
3131	Catalog Number: 3131 Unit Size: Each Electrical Requirements: 230 V, 50/60 Hz CO2 Sensor Technology: TC Sensor Oxygen Control: 1 to 21% Chamber Material: Polished Stainless Steel
3120	Catalog Number: 3120 Unit Size: Each Electrical Requirements: 115 V, 50/60 Hz CO2 Sensor Technology: IR Sensor Oxygen Control: None Chamber Material: Polished Stainless Steel
3121	Catalog Number: 3121 Unit Size: Each Electrical Requirements: 230 V, 50/60 Hz CO2 Sensor Technology: IR Sensor Oxygen Control: None Chamber Material: Polished Stainless Steel
3141	Catalog Number: 3141 Unit Size: Each Electrical Requirements: 230 V, 50/60 Hz CO2 Sensor Technology: IR Sensor Oxygen Control: 1 to 21% Chamber Material: Polished Stainless Steel
3140	Catalog Number: 3140 Unit Size: Each Electrical Requirements: 115 V, 50/60 Hz CO2 Sensor Technology: IR Sensor Oxygen Control: 1 to 21% Chamber Material: Polished Stainless Steel
