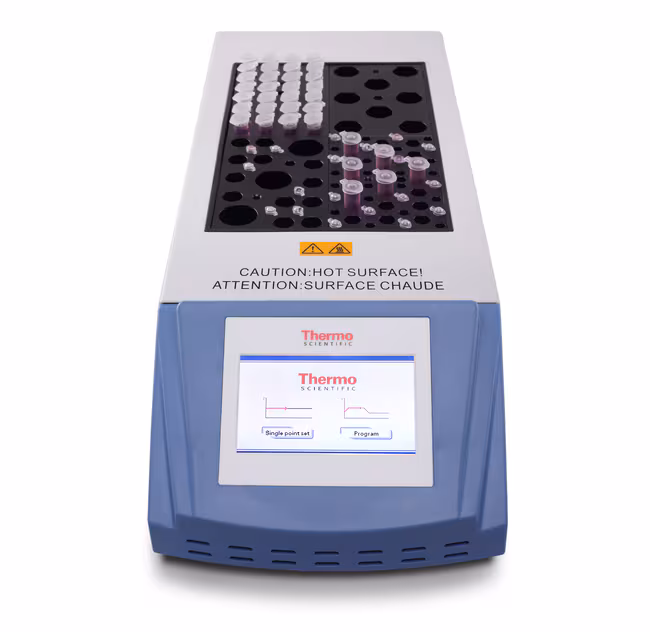

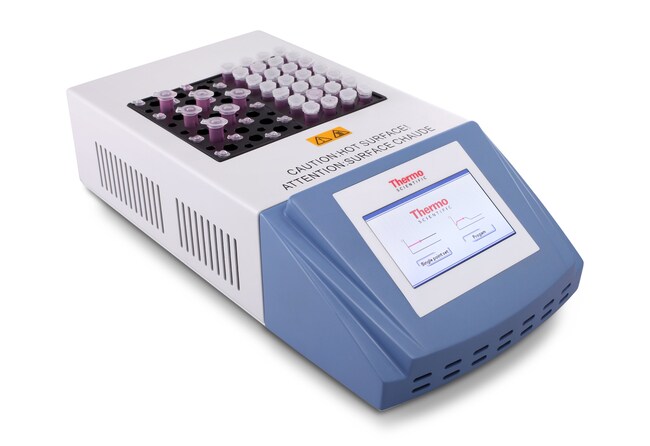

Touch Screen Dry Bath/Block Heater (Thermo Scientific™)

Designed to achieve precise temperature stability and uniformity with an easy-to-use touch screen controller. With 1, 2 and 4 block models, a broad range of heat blocks and a wide temperature range of ambient +5°C to 130°C, you’re sure to find the dry bath to fit your application demands. The Thermo Scientific™ Touch Screen Dry Bath/Block Heater includes advanced features such as a timer, programmability with the ability to save up to 10 programs with 5 steps per program, and an optional external temperature sensor to control the heat setting by a real time sample read out.

Key Features

  • Advanced internal temperature sensing probe with outstanding temperature accuracy and control
  • Temperature deviation adjustment
  • Precise temperature control with PID circuit
  • Temperature self-calibration enables user to offset the temperature to desired value
  • Timer enables the user to accurately monitor the heating time
  • Password protection feature
  • Interchangeable aluminum alloy sample blocks designed to provide versatility, easy cleaning and disinfecting
  • Range of configuration to hold 1, 2 and 4 interchangeable modular blocks to accommodate a variety of vessels and applications
  • Powder-coated steel body construction ensures durability
  • When the external temperature sensor is connected, the internal temperature sensor will disconnect automatically, allowing the temperature control and display to rely on the external temperature sensor
  • Easy-to-use touch screen control displays time and temperature
  • 10 user setting programs, each supports up to 5 sequential steps of different temperatures and duration times
  • Built-in over temperature protection device for added safety
Applications:
  • Sample preparation
  • Enzyme preservation
  • Enzyme-substrate reactions
  • DNA amplification
  • Electrophoresis gel degeneration
  • Serum coagulation
Required accessory:
  • Unit must be ordered with block(s)

Order Codes

Code Description
88870008 Catalog Number: 88870008
Unit Size: Each
No. of Blocks: 2 (must be ordered separately)
Voltage: 100/120 V
Includes: Dry bath, US style plug, block lifter
Heating Rate: ≤ 20 min. 30° to 130°C
88870007 Catalog Number: 88870007
Unit Size: Each
No. of Blocks: 1 (order separately)
Voltage: 100/120 V
Includes: Dry bath, US style plug, block lifter
Heating Rate: ≤ 20 min. 30° to 130°C
88870010 Catalog Number: 88870010
Unit Size: Each
No. of Blocks: 1 (order separately)
Voltage: 200/240 V
Includes: Dry bath, CN, EU and UK plugs, block lifter
Heating Rate: ≤ 20 min. 30° to 130°C
88870011 Catalog Number: 88870011
Unit Size: Each
No. of Blocks: 2 (must be ordered separately)
Voltage: 200/240 V
Includes: Dry bath, CN, EU and UK plugs, block lifter
Heating Rate: ≤ 20 min. 30° to 130°C
88870009 Catalog Number: 88870009
Unit Size: Each
No. of Blocks: 4 (must be ordered separately)
Voltage: 100/120 V
Includes: Dry bath, US style plug, block lifter
Heating Rate: ≤ 25 min. 30° to 130°C
88870012 Catalog Number: 88870012
Unit Size: Each
No. of Blocks: 4 (must be ordered separately)
Voltage: 200/240 V
Includes: Dry bath, CN, EU and UK plugs, block lifter
Heating Rate: ≤ 25 min. 30° to 130°C
