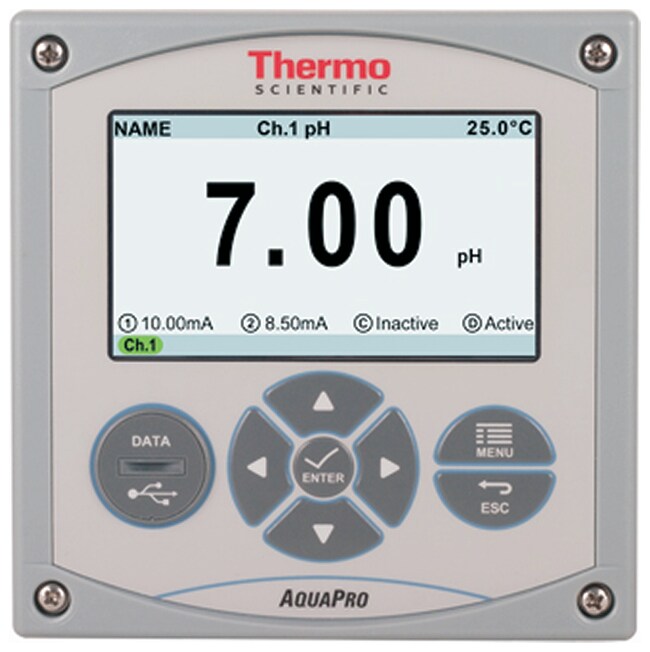

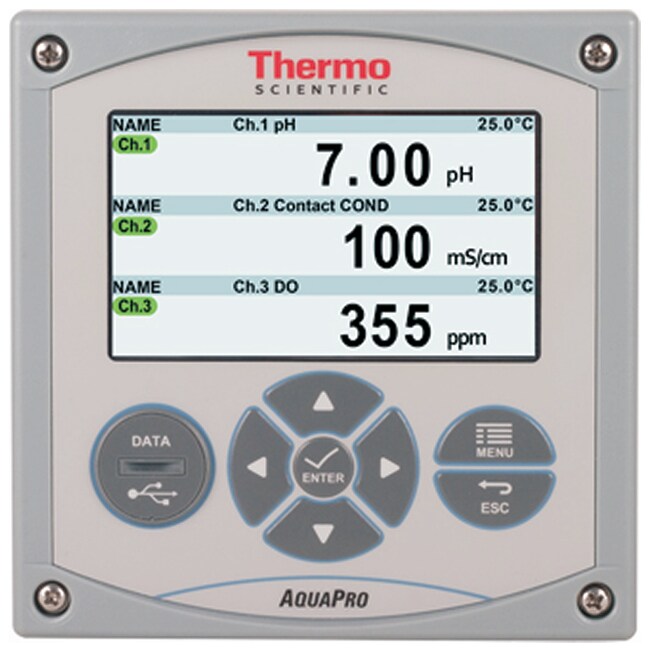

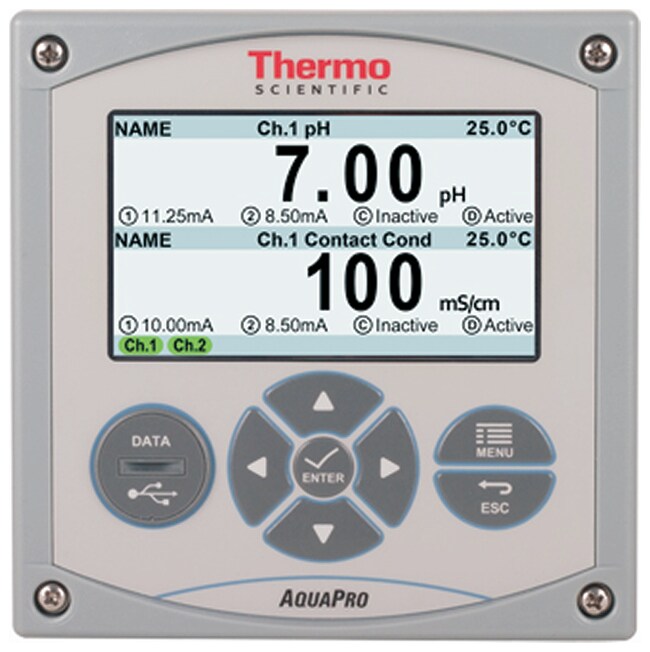

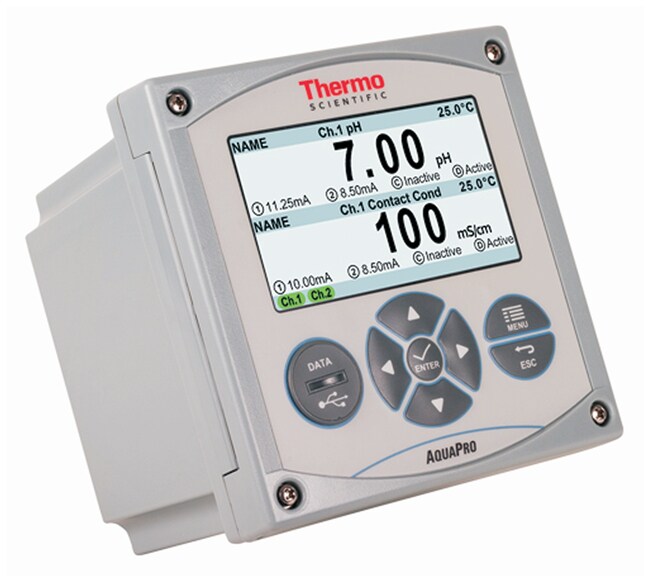

AquaPro™ Multi-Input Intelligent Process Analyzer (Thermo Scientific™)

Key Features

Advantages:

• Large color display
• Up to four sensor inputs
• Up to eight current outputs
• Up to six alarm/control relays
• Multiple digital communication protocols
• Broad sensor compatibility
• Seven user-selectable languages

Markets:

• Power generation
• Pulp and paper
• Bottled/municipal water
• Wastewater
• Process water
• Industrial water

Applications:

• High-purity applications to wastewater effluent
• Rugged industrial environments
• Process optimization and control applications

Functions and Features:

• One to four sensors for optimal cost per measurement point
• Temperature measurement for all sensors (standard)
• NEMA 4X Enclosure for indoor/outdoor use
• Wall, pipe and 1/2 DIN panel-mounting options
• Very readable, large color graphics display
• Math functions for percent rejection, percent pass and others
• Data and event logs for four channels for 30 days (standard)

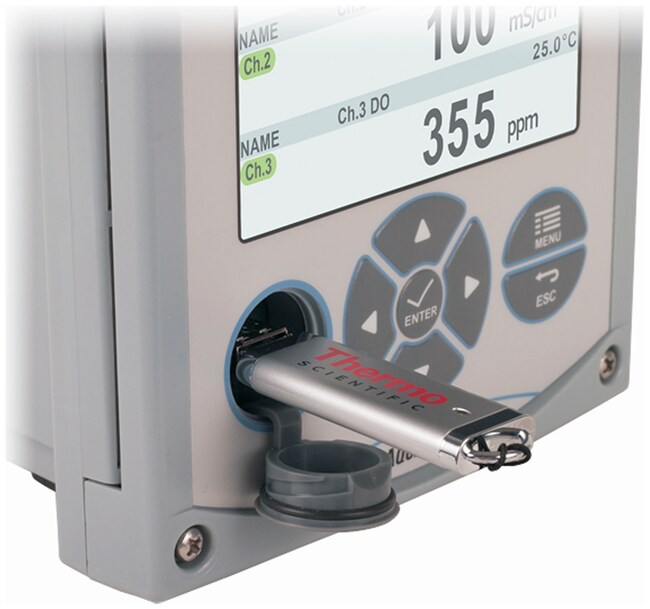

• Front panel USB port for easy data log extraction, quick system configuration, field software upgrades
• Calibration, system setup, diagnostics and service menus
• Two 4 to 20mA loop outputs per sensor (up to eight)
• Three Form C Relays for alarm, control and wash (standard)
• Option for six Form C Relays when up to three sensors are used
• Full-featured PID function for process control
• Digital protocol options for remote measurement, calibration, setup and diagnostics: MODBUS, DeviceNet
• Six cable ports for standard conduit and cordgrip fittings

Order Codes

Code	Description
AQUAPRO	Catalog Number: AQUAPRO Unit Size: Each Description: AquaPro Multi-Input Intelligent Analyzer
