Orion™ 2 Cell Conductivity Probes (Thermo Scientific™)

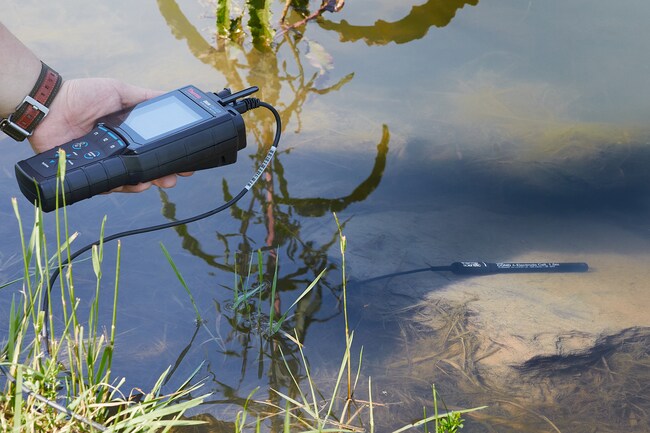

Generate accurate readings from low-conductivity solutions, chemically reacted substances or highly conductive samples, like pure water, lye or run-off water, respectively, with a Thermo Scientific™ Orion™ 2 Cell Conductivity Probe. These versatile probes use a two electrode cell design to generate an electrical conductivity reading for samples in the lab or in the field. Orion 2-cell conductivity probes are compatible with Thermo Scientific™ Orion Star™ and Versa Star Pro™ Bench and Portable Conductivity Meters. Paired together the instruments can be used to generate accurate, repeatable readings for conductivity, resistivity, TDS and salinity.

Key Features

  • 2-Electrode conductivity cell 011050MD is epoxy/platinum, has a nominal cell constant of 1.0cm-1 and is intended for field or laboratory use; measurement range is 1μS/cm to 20mS/cm.

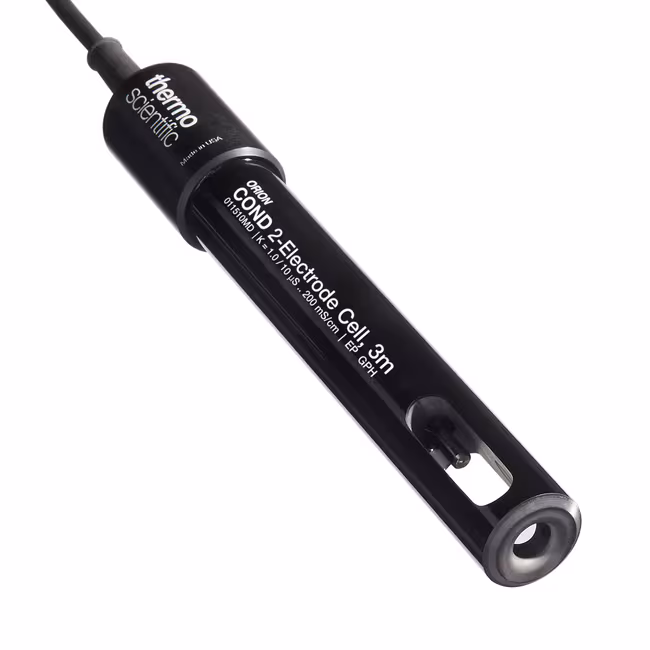

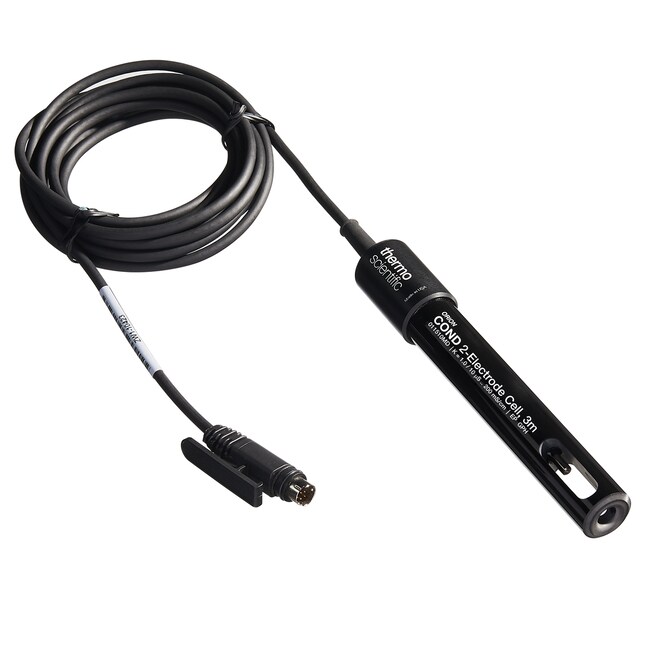

  • 2-Electrode conductivity cell 011510MD is epoxy/graphite, has a nominal cell constant of 1.0cm-1 and is intended for field or laboratory use; measurement range is 10μS/cm to 200mS/cm.
  • 2-Electrode conductivity cell 013016MD is steel (V4A), has a nominal cell constant of 0.1cm-1 and is intended for laboratory use and ultra pure water; measurement range is 0.01μS/cm to 300μS/cm



Order Codes

Code Description
013016MD Catalog Number: 013016MD
Unit Size: Each
Measurement Ranges: 0.01 to 300 μS/cm
Connector Types: Mini-DIN
For Use With (Equipment): Orion Star Series Meters
011050MD Catalog Number: 011050MD
Unit Size: Each
Measurement Ranges: 1 μS/cm to 20 mS/cm
Connector Types: Mini-DIN
For Use With (Equipment): Orion Star Series Meters
011510MD Catalog Number: 011510MD
Unit Size: Each
Measurement Ranges: 10 μS/cm to 200 mS/cm
Connector Types: 8-pin Mini-DIN
For Use With (Equipment): Orion Star Series Meters
018020MD Catalog Number: 018020MD
Unit Size: Each
Measurement Ranges: 10 μS/cm to 2000 mS/cm
Connector Types: Mini-DIN
For Use With (Equipment): Orion Star Series Meters
