Orion™ Chloride Electrodes (Thermo Scientific™)

Easily and reliably analyze free chloride ions in aqueous solutions. Provides quick, accurate and economical measurements.

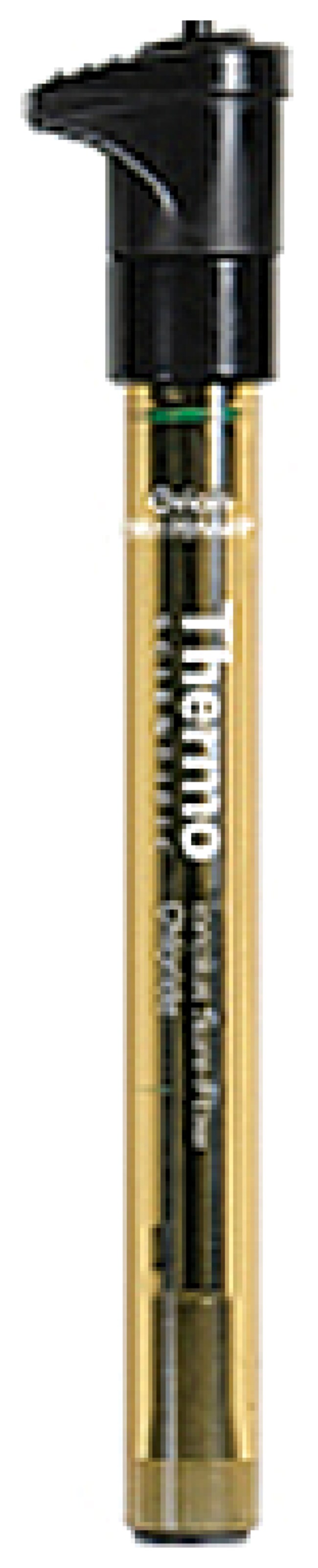

9617BNWP is a combination electrode with a Sure-Flow™ junction that allows easy cleaning. When conventional electrode junctions clog, the Sure-Flow junction can be opened and flushed clean simply by pressing the cap. 9417SC requires a separate electrode cable.

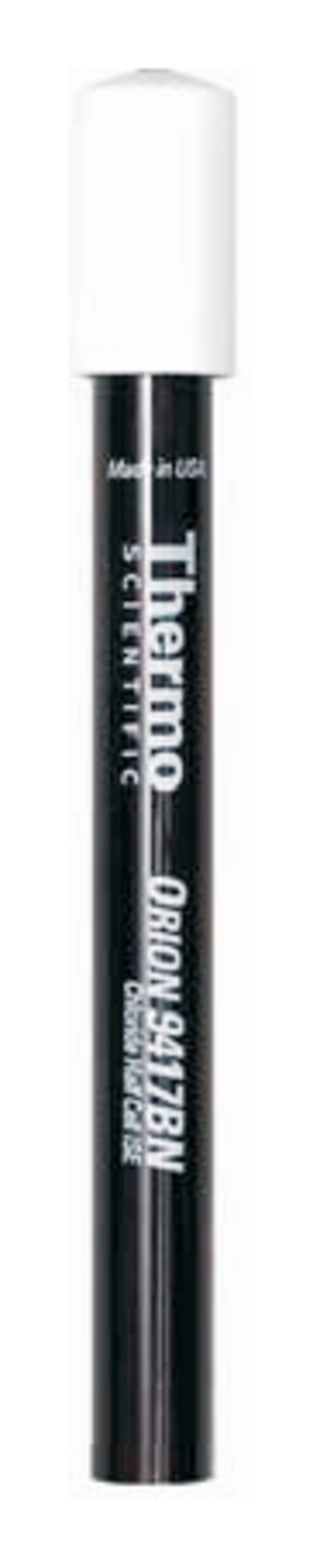

Chloride Half-Cell Electrode 9417BN and 9417SC are to be used with Orion 900200 sure flow double Junction reference electrode.

Key Features

The Thermo Scientific Orion Chloride Electrode complies with ASTM D512-04 (C ) for Wastewater measurements.

Features

9617BNWP is a combination electrode with a Sure-Flow™ junction that allows easy cleaning. When conventional electrode junctions clog, the Sure-Flow junction can be opened and flushed clean simply by pressing the cap. 9417SC requires a separate electrode cable. Rugged epoxy body design ensures durability of electrode.

Chloride Half-Cell Electrode 9417BN and 9417SC are to be used with Orion 900200 sure flow double Junction reference electrode.

Solutions required

Standards

941706 0.1 M sodium chloride standard solution, 475 mL bottle

941708 1000 ppm chloride standard solution, 475 mL bottle

941707 100 ppm chloride standard solution, 475 mL bottle

ISA

940011 Ionic Strength Adjustor (ISA), 475 mL bottle

941709 CISA (Chloride Ionic Strength Adjustor)

Electrode fill solution

900002 Inner chamber filling solution for the double junction Reference electrode, 5 x 60 mL bottles

900003 Outer chamber filling solution for the double junction reference electrode, 5 x 60 mL bottles

900062 Optimum Results B filling solution for 9617BNWP chloride combination electrode.

* 900017 legacy solution is not optimal, but is an acceptable alternative

900001 Filling solution for 9617BNWP chloride

Items included

9417BN 948201 Polishing strip. Qty 2.

9417SC 948201 Polishing strip. Qty 2.

9617BNWP 900062 Optimum Results B filling solution, 60mL 1 bottle

948201 Polishing strip. Qty 1.

Warranty period: 12 months from date of purchase.

Order Codes

Code	Description
9617BNWP	Catalog Number: 9617BNWP Unit Size: Each Description: Ionplus Sure-Flow Solid State Combination Connector Types: Waterproof BNC
9417BN	Catalog Number: 9417BN Unit Size: Each Description: Solid State Half-Cell Connector Types: BNC
9417SC	Catalog Number: 9417SC Unit Size: Each Description: Solid State Half-Cell Connector Types: Screw Cap
