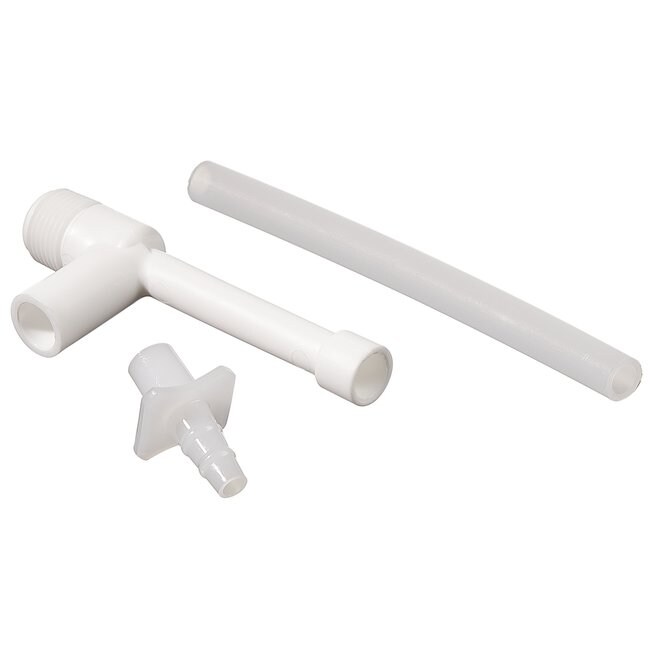

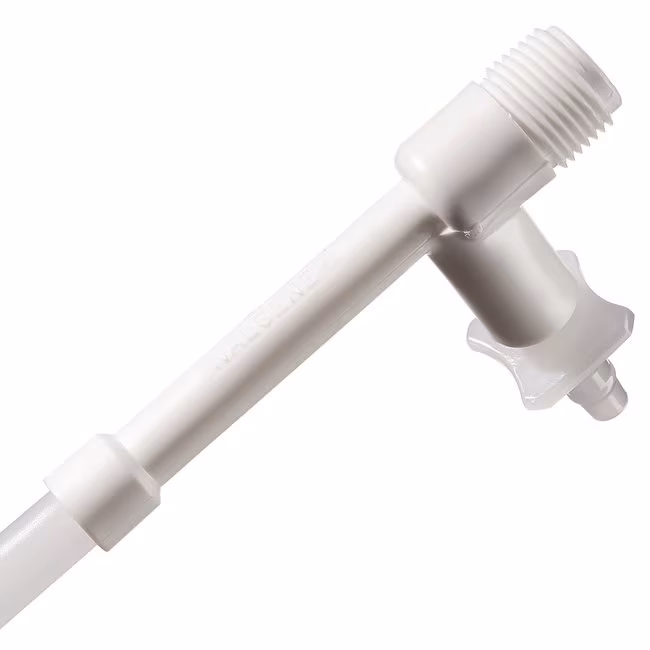

Nalgene™ Aspirator Vacuum Pump (Thermo Scientific™)

Attach the Thermo Scientific™ Nalgene™ Aspirator Vacuum Pump directly to sink faucets for vacuum draw. It can draw 11.5L air per minute at a water flow rate of 6.5L per minute. It operates efficiently with water pressures as low as 7.5 psig for minimum water consumption and comes with an integral check valve and tubing for insertion in discharge end.

Key Features

Features:

Attaches to a standard faucet with 3/8″ NPT connecting thread for easy installation
Maximum free air pumping capacity of 11.5L per minute with a water flow rate of 6.5L per minute.
Operates efficiently with water pressure as low as 7.5 psig (0.517 bar) for minimum water consumption
Ultimate achievable vacuum of 28.5″ (724mm) Hg
Discharge end equipped with 4.75″ (12cm) length of tubing to direct discharge water toward the drain or to allow attachment to additional discharge tubing
Integral check valve that prevents loss of vacuum when water source is disrupted and prevents backflow
Polypropylene, with PE tubing

Includes:

Integral check valve
3/8 NPT connecting thread
4.75″ (12cm) of tubing

Please recycle the corrugate cartons and LDPE bags in which your Nalgene products are packaged.

Order Codes

Code	Description
6140-0010	Catalog Number: 6140-0010 Unit Size: Case of 24 Description: Vacuum Pump Aspirator Max. Vacuum: 28.5 in. Hg
