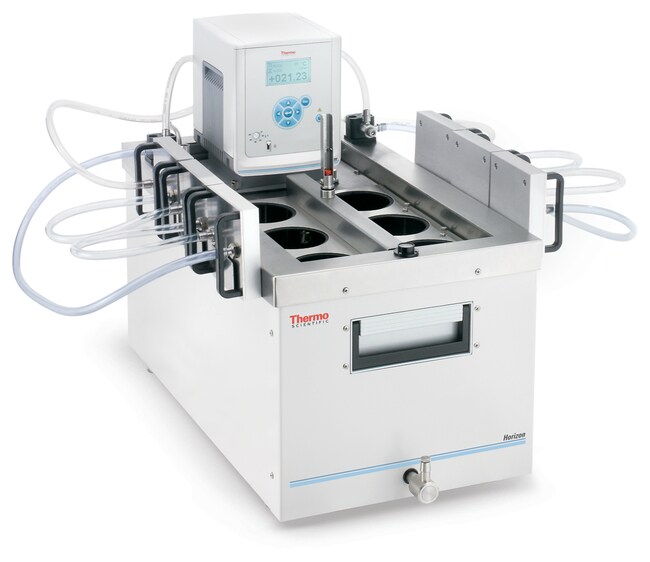

Horizon Fog Testing Systems (Thermo Scientific™)

The Thermo Scientific™ Horizon Fog Testing System is designed to recreate automotive interior out-gassing in a timely, measurable and repeatable way, utilizing various standards including DIN, ISO and SAE.

Key Features

The Horizon Fogging Test System fulfills the DIN, ISO, and SAE standards for fog testing. Available with a choice of controllers, a range of features and a robust pump providing temperature accuracy of ±0.5°C throughout the entire bath ensuring consistent, repeatable results.

High capacity heaters provide rapid heating to set point temperature
Unique pump nozzle ensures circulation around all six beakers to maintain temperature accuracy
Integrated bubble level and four adjusting feet provide easy bath levelling process

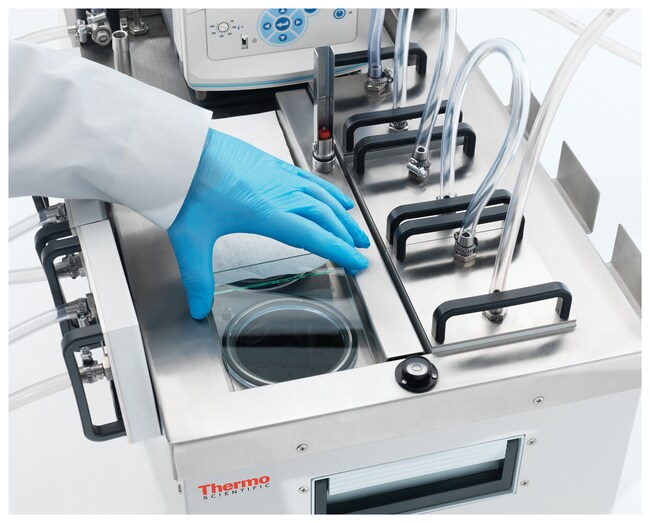

Sealed frame over bath area prevents heat transfer fluid vapors from corrupting test results

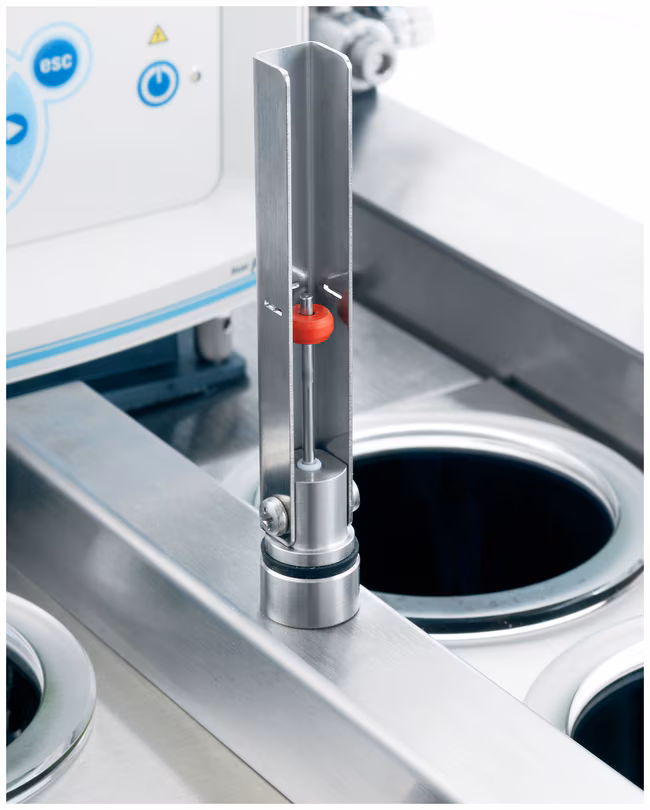

Easy-to-view liquid level indicator ensures proper liquid levels are maintained during testing
Robust pump design for uniform temperatures

Large volume tank wtih 6 flasks enables simultaneous testing, saving valuable time and money

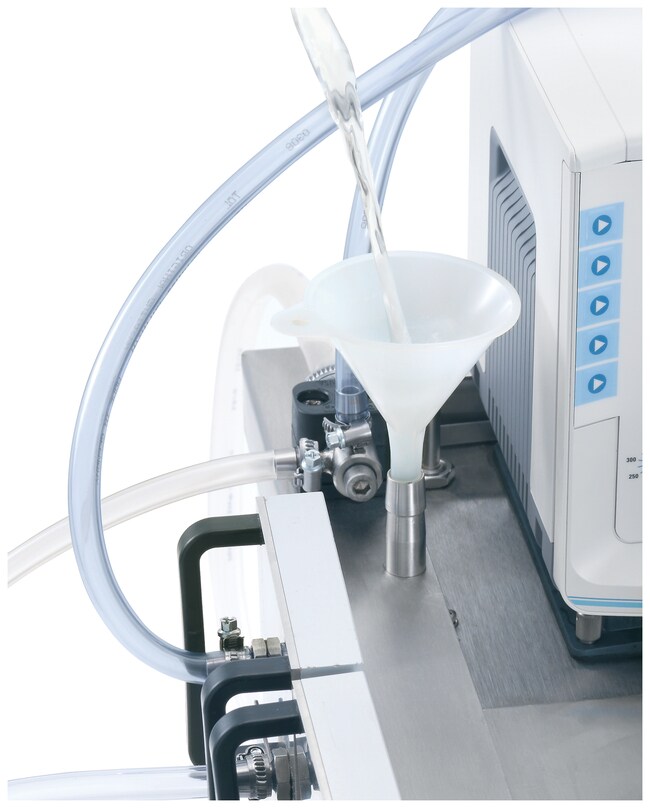

Ease of use—drain located on the front of the unit, fill vent on top of the unit, and step-by-step instruction guide

PC-FTS

Provides real-time graphs with temperature ramping
Displays multiple information
Displays data

Ordering Information:

To complete the Fog Tesing System:

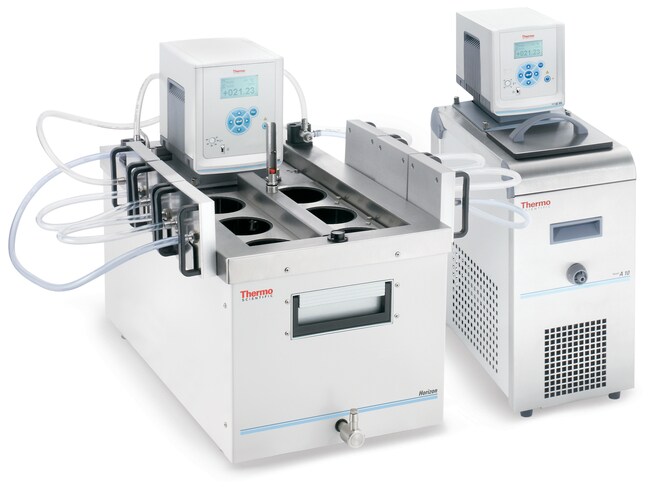

Choose appropriate cooling system
Choose accessory kit for the Gravemetiric or Reflectometric test
Select individual accessories

Includes:

Controller, bath, 6 foot power cord

Requires:

Cooling system (Accel 250 LC, SC100-A10 or PC200-A28) and accessories (gravimetric or reflective testing accessory kits)

Warranty varies by country, please contact us for details

Order Codes

Code	Description
1568005	Catalog Number: 1568005 Unit Size: Each Model: AC-FTS
158-8005	Catalog Number: 158-8005 Unit Size: Each Model: PC-FTS
