Nalgene™ Polycarbonate Imhoff Settling Cone (Thermo Scientific™)

Determine settleable matter in water and waste effluent and also measure the sand content in well water. The Thermo Scientific™ Nalgene™ Polycarbonate Imhoff Settling Cone is constructed from durable polycarbonate. The cone features a polypropylene screw closure. The provided leakproof† closure makes it possible to withdraw sediment for gravimetric anaylsis, and also aids in cleaning. Closure design enables user to read graduations to zero.

Key Features

Features:
  • Designed for determining settleable matter in water and waste effluent or sand content in well water
  • Closure design enables user to read graduations to zero
  • Autoclavable/Transparent/Graduated/Leakproof† when used with provided Nalgene closures

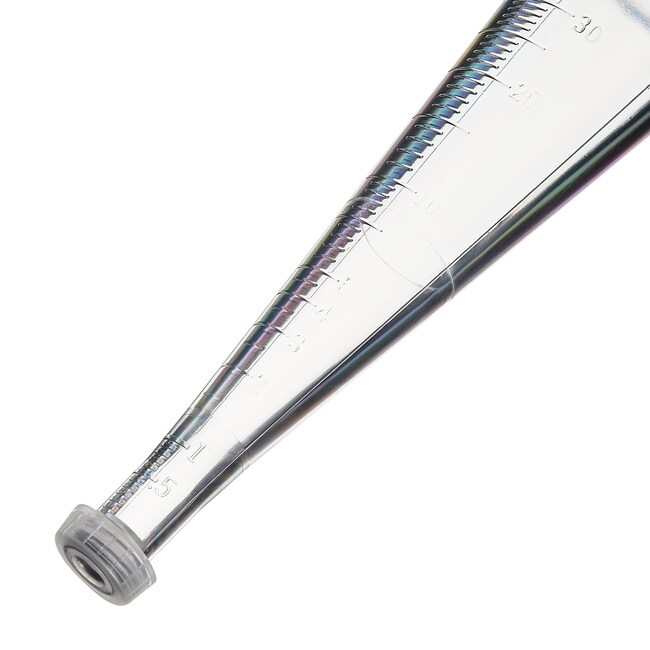

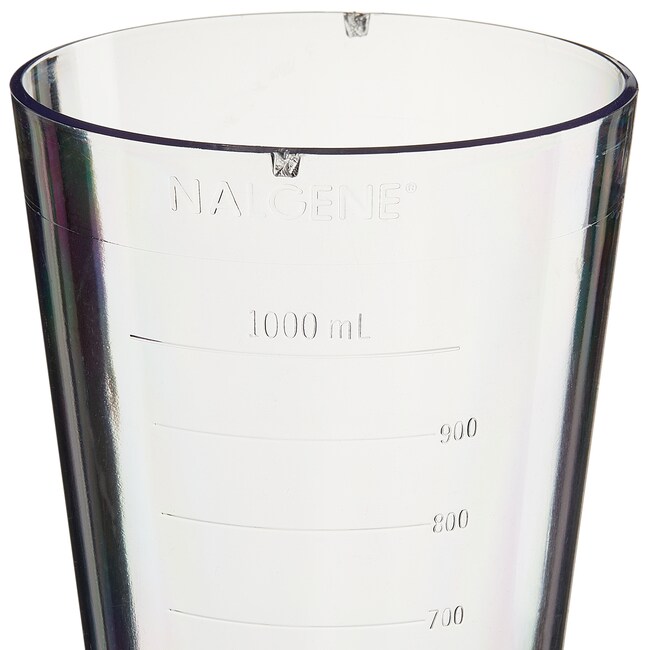

  • Graduated from 0 to 1000mL, with 0.1mL increments in the 0 to 1mL range

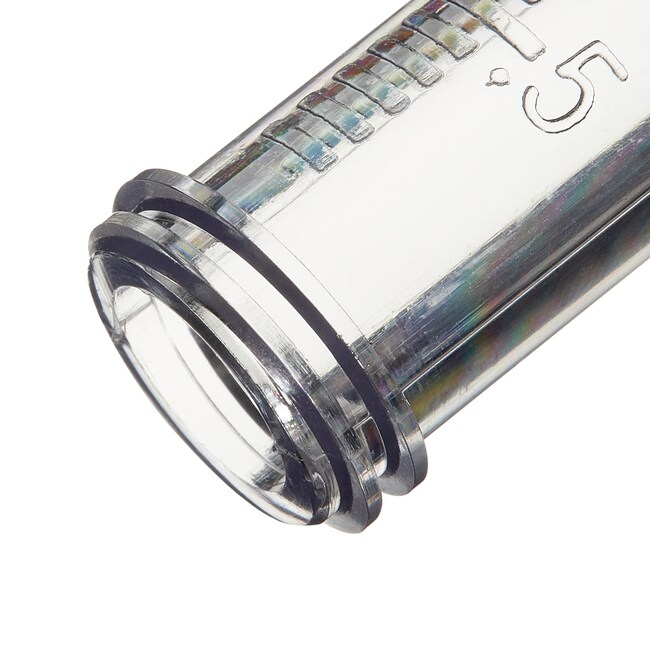

  • Provided 13mm leakproof† screw closure at bottom for withdrawing sediments

Settling Cone Graduation Intervals

  • 0-1mL: 0.1mL
  • 1-10mL: 0.5mL
  • 10-20mL: 1mL
  • 20-40mL: 2mL
  • 40-100mL: 10mL
  • 100-500mL: 50mL
  • 500-1000mL: 100mL
Ordering Information:

Use with Imhoff cone rack Cat. No. 1001-0010 (sold separately).

Order Codes

Code Description
1000-0010 Catalog Number: 1000-0010
Unit Size: Case of 4
Description: Imhoff Settling Cone
